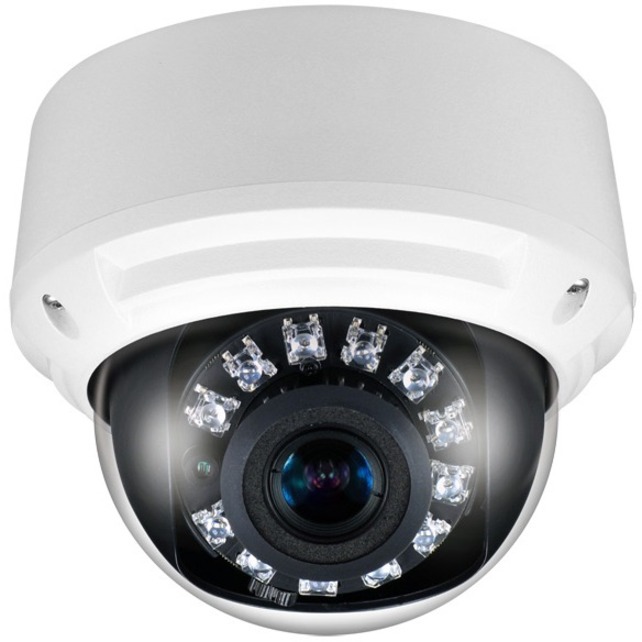

CBC ZN8-VD4M212-NIR Security Camera

CBC GANZ GENSTAR - Security Cameras, CBC GANZ GENSTAR, 4MP, Outdoor Dome 2.7-12mm, Smart IR, T-WDR, POE/12VDC, IP66, IK10, H264/265

1/3" Progressive Scan CMOS
Motorized Lens 2.7-12mm
4MP@20fps, 3MP@30fps, 1080P@30fps
Triple Streams
Smart IR Range 15-20m
Low bitrate, excellent low light performance
WDR, 3D DNR, ICR
ROI, Defog, HLC, Corridor mode, DIS

Need a different version? See all CBC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$280.92

Overview

CBC Parts Accessory Model Overview

Products and parts from CBC.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

90° ~ 35°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.264
MJPEG
H.265

Maximum Video Resolution:

2592 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/20000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Ceiling Mount
Wall Mount

Form Factor:

Dome

Durability:

Weather Proof

Height:

4.4"

Diameter:

5.1"

Weight (Approximate):

1.98 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

90%

Miscellaneous

Features:

3D Digital Noise Reduction
Highlight Compensation (HLC)
Region of Interest
Audio Compression

Indoor/Outdoor:

Outdoor

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Warranty

Limited Warranty:

36 Month

Item Numbers

UNSPSC: 46171610
