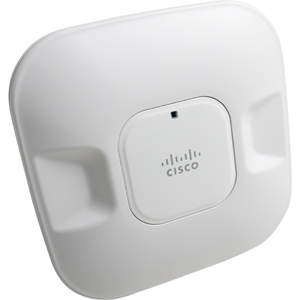

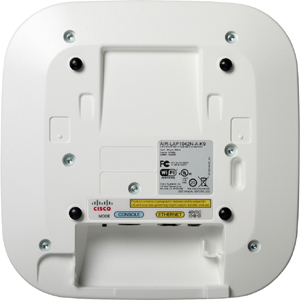

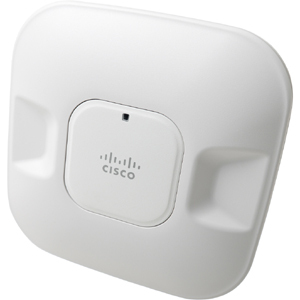

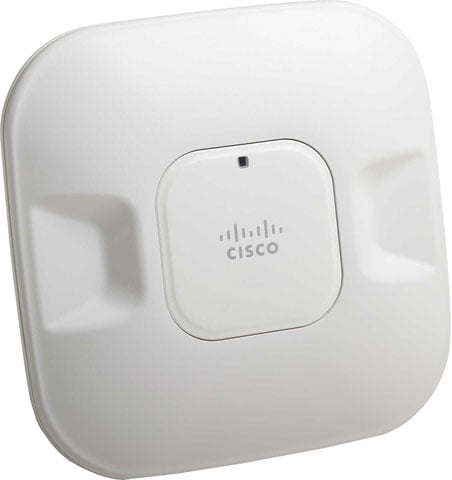

Cisco AIR-AP1042-AK9-5 Access Point

The Cisco AIR-AP1042-AK9-5 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1040 Series - Cisco Aironet 1042 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable - 5 Pack

Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11n technology and speeds up to 300 Mbit/s
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1040 Series Access Points

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

Cisco Aironet 1040 Series Access Point Model Overview

The Cisco Aironet 1040 Series Access Point is an enterprise-class, entry-level 802.11n access point designed to address the wireless connectivity needs of small and medium-sized enterprises. With 2x2 multiple-input multiple-output (MIMO) technology providing at least six times the throughput of existing 802.11a/g networks, the Cisco Aironet 1040 Series offers the performance advantage of 802.11n enterprise-class quality at an entry-level price for small and medium-sized enterprises. As part of the Cisco Unified Wireless Network, the Aironet 1040 Series provides low total cost of ownership and investment protection by integrating seamlessly with the existing network.

Cisco AIR-AP1042-AK9-5 Access Point Overview

Designed for sustainability, the Cisco Aironet 1040 Series offers 802.11n performance with standard 802.3af Power over Ethernet (PoE). At only 12.95 watts of power, the 1040 Series combines the power of dual-radio 802.11n with the efficiency of standard PoE. The sleek industrial design of the 1040 Series blends seamlessly into any indoor enterprise environment.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.83 GHz

Antenna Gain:

4 dBi
3 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA 2
AES
TKIP
EAP-TLS
TTLS
MSCHAP v2
EAP-MSCHAPv2
EAP
PEAP
EAP-FAST

Features:

MIMO Technology

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Wall Mountable

Height:

1.8"

Width:

8.7"

Depth:

8.7"

Weight (Approximate):

2.30 lb

Miscellaneous

Certifications & Standards:

IEEE Standards:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3af
IEEE 802.11h
IEEE 802.11d
IEEE 802.11i
IEEE 802.1x

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1

Radio approvals:

FCC Part 15.247
15.407

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0882658352713

UPC: 882658352713

EAN: 0882658352713

UNSPSC: 43222631

Reviews

Q&A

Get help from a Barcoding Expert!

The Cisco AIR-AP1042-AK9-5 Access Point is also known as CSC-AIRAP1042AK95
