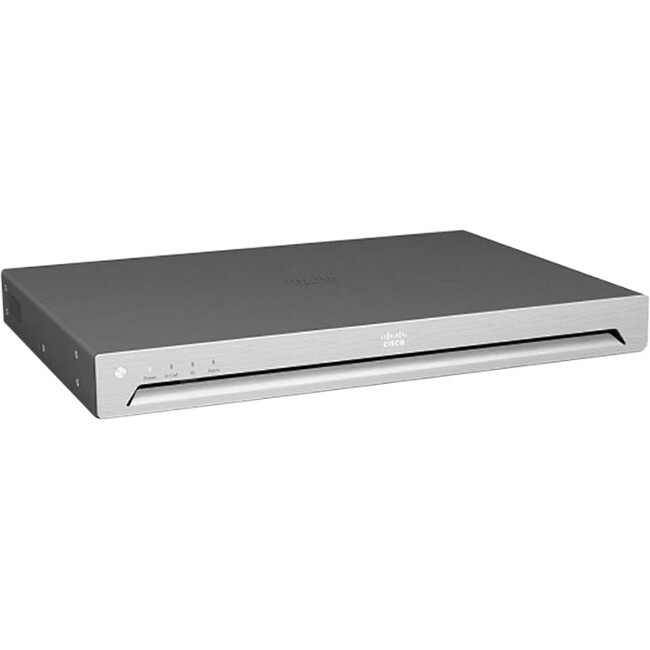

Cisco CTS-SX80-IP40-K9 Accessory

Cisco - Cisco SX80 Codec, PHD 1080p 4x Camera, and Touch 10 - 1920 x 1080 Video (Live) - Point-to-Point - WUXGA - NTSC/PAL - 60 fps - 2 x Network (RJ-45) - 3 x HDMI In - 2 x HDMI Out - 1 x DVI In - 1 x DVI Out - 1 x Composite Video InAudio Line In - Audio Line Out - USB - Gigabit Ethernet

With unmatched performance and clarity, this video conference equipment lets you conduct better video conference meetings
Get enhanced high-quality video at 60 fps frame rate
Featuring Gigabit Ethernet port for ultra-high quality communication
Simply plug in RJ-45 port to connect the conference equipment on the network
With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
Supports H.460.18/19 ITU-T recommendations for high-quality enhanced performance

Need a different version? See all Cisco Parts Accessories

Chat Now for Qty Discount

Add to Quote

$19,878.46

Overview

Cisco Parts Accessory Model Overview

Products and parts from Cisco.

Cisco CTS-SX80-IP40-K9 Accessory Overview

The Cisco TelePresence SX80 Codec (SX80 Codec) provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms.

Detailed Specs

Technical Information

ITU-T Recommendation:

H.460.18/19
H.323
H.235
H.245

Video Bridging:

Point-to-Point

Video

Graphics Modes (Live):

WUXGA

Video Signal Format:

NTSC/PAL

Maximum Video Resolution (Live):

1920 x 1080

Maximum Frame Rate:

60 fps

Video Encoding:

H.261
H.263
H.263+
H.264

Audio

Audio Encoding:

G.711
G.722
G.722.1
G.729ab
MPEG-4 Audio

Network & Communication

Network Technology:

10/100/1000Base-T

Ethernet Technology:

Gigabit Ethernet

Interfaces/Ports

Composite Video In:

Yes

DVI In:

Yes

DVI Out:

Yes

HDMI In:

Yes

HDMI Out:

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Network (RJ-45):

Yes

USB:

Yes

Number of Network (RJ-45) Ports:

Number of Composite Video Inputs:

Number of DVI In:

Number of DVI Out:

Number of HDMI Inputs:

Number of HDMI Outputs:

Number of Audio Line In:

Number of Audio Line Out:

Physical Characteristics

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.4"

Depth:

12.2"

Weight (Approximate):

8.05 lb

Item Numbers

GTIN: 0882658721861

UPC: 882658721861

EAN: 0882658721861

UNSPSC: 45111902
