Cisco WS-C3560X-24P-L Data Networking

Cisco Catalyst 3560 Series Switch - Catalyst 3560X Switch (24 Port PoE LAN Base)

Effectively increases available bandwidth on your network
Features 48 networking ports to establish large network
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rack mounting enables you to organize wires & secure cables for professional installation
Management capability provides control over setup and configuration of your network
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Cisco Catalyst 3560 Series Switch Data Networkings

Chat Now for Qty Discount

Add to Quote

$4,356.92

Overview

Full specifications (PDF)

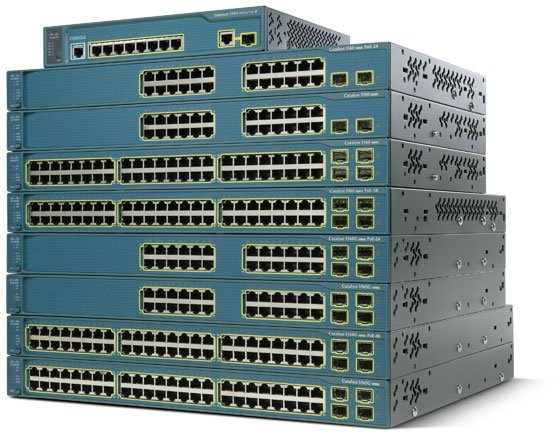

Cisco Catalyst 3560 Series Switch Data Networking Model Overview

The Cisco Catalyst 3560 Series Switch is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, the Catalyst 3560 Series Switch helps you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. You can maintain the simplicity of traditional LAN switching and still deploy networkwide intelligent services such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management and high-performance IP routing.

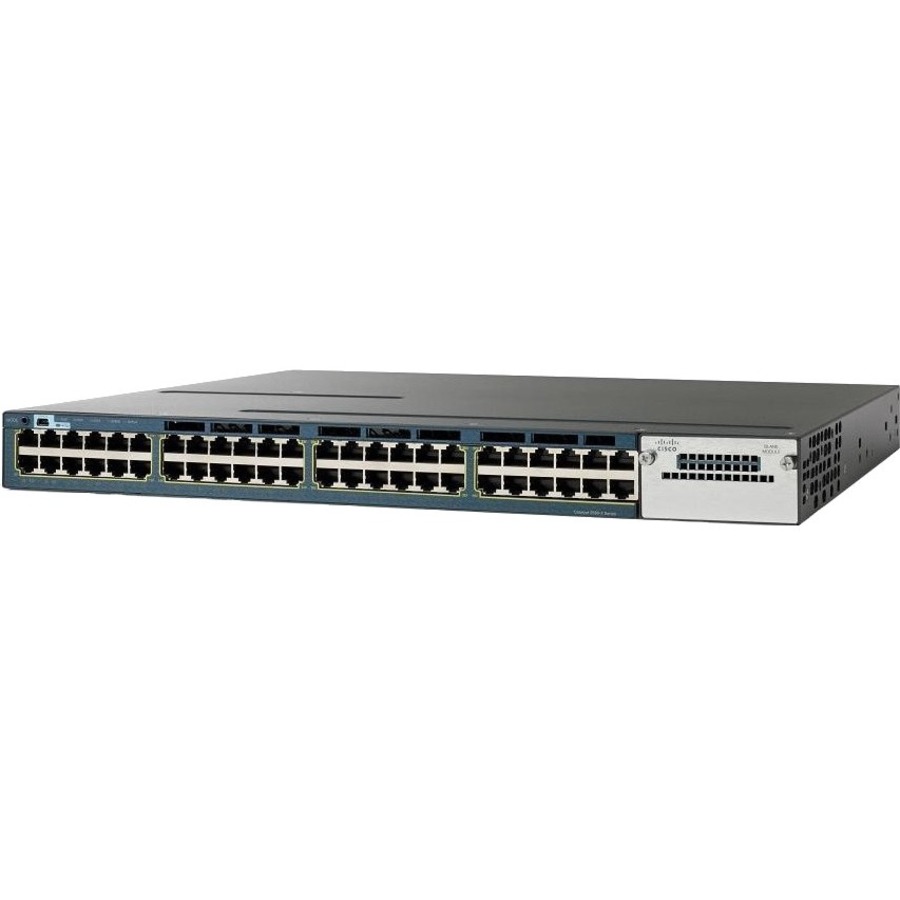

Cisco WS-C3560X-24P-L Data Networking Overview

The Cisco Catalyst WS-C3560X-48P-Switch is an enterprise-class stackable and standalone switch. This switch provides high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features.

Detailed Specs

Full specifications (PDF)

Interfaces/Ports

Total Number of Network Ports:

Port/Expansion Slot Details:

48 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet
Fast Ethernet

Network Technology:

10/100/1000Base-T
10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Power Description

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.8"

Width:

17.5"

Depth:

18"

Weight (Approximate):

15.65 lb

Miscellaneous

Package Contents:

Catalyst WS-C3560X-24P-L Ethernet Switch
715W AC Power Supply

Environmentally Friendly:

Yes

Environmental Certification:

RoHS-5

Warranty

Additional Warranty Information:

Product does not ship from original manufacturer
Product may not be eligible for original manufacturer warranty, rebates or programs
Product condition subject to availability
Three years direct replacement warranty provided by Ingram Micro
Product ships from IMSourcing facility within 2-3 days or from stock
Product May ship in non-standard packaging
All returns processed directly from IMSourcing
Where applicable, IM indicates an Ingram Micro certified pre-owned product

Item Numbers

UNSPSC: 43222612
