Citizen CL-S703-E Barcode Label Printer

The Citizen CL-S703-E Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Citizen CL-S703 - Citizen CL-S703 Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 4.10" Print Width - 10 in/s Mono - 300 dpi - Roll Paper, Fanfold, Continuous Form, Perforated Label, Die-cut Label, Tag, Ticket - 4.65" Label Width - 32" Label Length

Printing Technology

Thermal Transfer

Print Resolution

300 dpi

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
Delivers high-speed, hassle-free labeling solution for your business needs
The printer is capable of printing sharp and detailed monochrome documents quickly
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity

Need a different version? See all Citizen CL-S703 Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

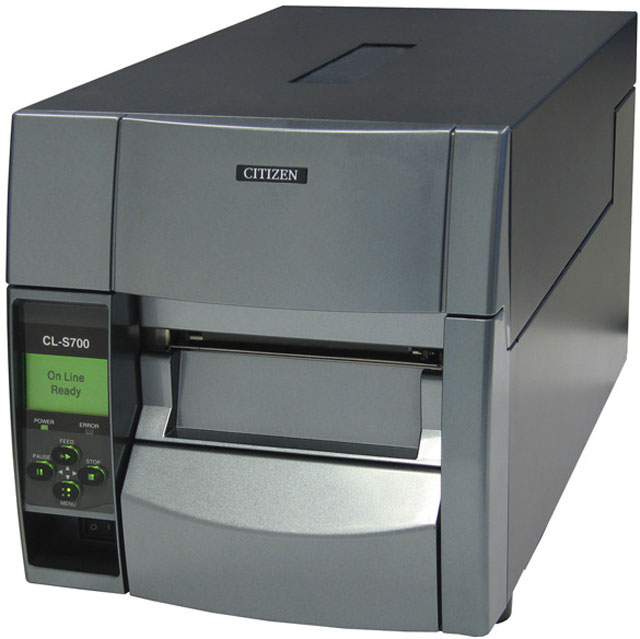

Citizen CL-S703 Barcode Label Printer Model Overview

Part of the CL-S700 family of printers, the CL-S703 delivers an outstanding 300dpi resolution for pin-sharp printing. Tough, robust and built to withstand the rigorous of most industrial, warehouse and logistics environments, the CL-S703 is built to provide years of trouble-free use.

Citizen CL-S703-E Barcode Label Printer Overview

The CL-S700 series is built with durability and ease of access in mind.

Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation control board that allows the printer to switch from Datamax to Zebra emulations at the touch of a button, the CL-S700 is designed for years of service.

The CL-S700's front-loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a Hi-Lift metal mechanism that opens to a full 90° allowing for easy access to the ribbon and media path. Best of all, the Hi-Open design of the CL-S700 allows the case to be opened vertically, making it the perfect printer for placement in confined settings.

In addition, the CL-S700 offers all the superior features you have come to expect from Citizen: Active Ribbon Control and Positioning system (ARCP) to eliminate ribbon wrinkle and media slippage, rugged heavy-duty steel cabinet for extra durability, standard internal serial, parallel, and USB interfaces (with optional internal Ethernet card).

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution:

300 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

EAN-8
EAN-13
UPC-A
UPC-E
Interleaved 2 of 5
Code 128
HIBC
Codabar
Plessey
Case Code
UPC -2 Digits Add-on
UPC-5 Digits Add-on
Code 93
Telepen
UCC/EAN 128
FIM
UPS Maxi Code
PDF-417
QR Code
Data Matrix
Aztec Code
RSS

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Roll Paper
Fanfold
Continuous Form
Perforated Label
Die-cut Label
Tag
Ticket

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

32"

Label Core Size:

Ribbon Core Size:

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

9.7"

Width:

10.8"

Depth:

18.3"

Miscellaneous

Package Contents:

CL-S703 Label Printer
Software CD

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0047239001699

UPC: 047239001699

EAN: 0047239001699

UNSPSC: 43212108
