CognitiveTPG CXD2-1330-RX Barcode Label Printer

The CognitiveTPG CXD2-1330-RX Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
CognitiveTPG Cxi - Cognitive CXD2-1330 Network Thermal Label Printer - Monochrome - 8 in/s Mono - 300 dpi - Parallel, USB, Network, Serial - Ethernet
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
2.75 inch
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Save time and money for your business by using one printer for all your employees
Read More

Need a different version? See all CognitiveTPG Cxi Barcode Label Printers

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
CognitiveTPG CXD2-1330-RX Barcode Label Printer
CognitiveTPG CXD2-1330-RX Barcode Label Printer
CognitiveTPG CXD2-1330-RX Barcode Label Printer CognitiveTPG CXD2-1330-RX Barcode Label Printer
Full specifications (PDF)

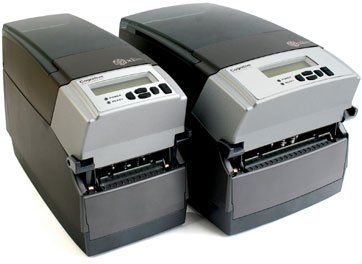

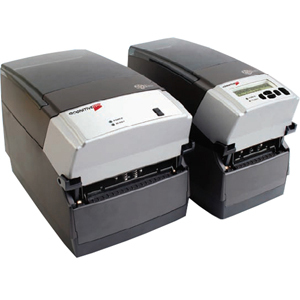

CognitiveTPG Cxi Barcode Label Printer Model Overview
The CognitiveTPG Cxi is a rugged and reliable all-metal printer mechanism that prints continuously featuring a die-cast metal user interface to withstand harsh environments. The Cxi uses menu driven LCD controls for easy set up without a computer. The Cxi offers a full communication suite, including internal Ethernet, serial/parallel and USB ports. Also, the Cxi has a Fast 32 bit 200 MIPS Processor for fast throughput and incredible first-label-out speeds.
CognitiveTPG CXD2-1330-RX Barcode Label Printer Overview

Available in variable media widths, the CXD2-1330 printer will shape the future of the on demand barcode label printing. Our products are packed with attributes that go beyond "feeds and speeds" , ideal for both mid range and desktop applications. CXD2-1330 printers deliver exceptional value, durability and performance in a small footprint.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Width:
2.12"
Barcode Symbology Supported:
  • UPC-A
  • UPC-A+2
  • EAN-8
  • Code 128-C
  • UPC-E
  • UPC-E+5
  • EAN-13
  • Code 128
  • UPC-E1
  • Code 39
  • Plessey
  • EAN 128
  • POSTNET
  • Interleaved 2 of 5
  • Code 128-A
  • Codabar
  • Code 93
  • Code 128-B
  • MSI
  • UPC-A+
  • MSI1
  • S2 of 5
  • D2 of 5
  • Maxi Code
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • RSS-14
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Direct Thermal Label
  • Tag
  • Wristband
  • Label
  • Fanfold
  • Receipt
  • Continuous Form
  • Gap
  • Black Bar
  • Black Mark
  • Notch
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
2.84"
Maximum Label Length:
26.83 ft
Fonts & Emulation
Language Emulation:
EcPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.1"
Width:
5"
Depth:
10"
Miscellaneous
Package Contents:
  • CXD2-1330 Network Thermal Label Printer
  • USB Cable
  • Core Adapter Kit
Cables Included:
USB
Additional Information:
  • Best performance to size ratio
  • User Replaceable Printhead Assembly & Platen
  • Fast 32 bit 200 MIPS Processor
  • Full Communication Suite
  • Large Roll Capacity for high volume applications
  • Metal main frame for extended printer life
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
