CP Technologies FCS-1131 Products

The CP Technologies FCS-1131 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
CP Technologies  -  LevelOne 2-Megapixel FCS-1131 10/100 Mbps PoE W/2-way Audio SD/SDHC Card Slot Day/Night IP Network Camera - 2-Megapixel Progressive Scan CMOS Sensor, PoE, 2-Way Audio,Cable
  • 2-Megapixel (1920 x 1080) high-definition resolution
  • Video compression: H.264/MJPEG
  • Supports 4 video streams simultaneously
  • Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
  • Features 3DNR (3-Dimension Noise Reduction) to produce extremely clear picture quality even under low light condition
  • Removable IR-cut filter for day and night surveillance
  • Provides privacy masks for private area protection
  • Built-in Micro SD/SDHC card slot for local storage
  • Digital input/output (1DI/1DO) for sensor and alarm
  • BNC connector for analog video output
Read More

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
CP Technologies FCS-1131 Products
CP Technologies FCS-1131 Products
CP Technologies FCS-1131 Products
CP Technologies FCS-1131 Products
CP Technologies FCS-1131 Products CP Technologies FCS-1131 Products CP Technologies FCS-1131 Products CP Technologies FCS-1131 Products
Larger View
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
  • Auto
  • Manual
Maximum Illumination:
0.2 lux
Color Supported:
Color
Video
Video Formats:
  • MPEG-4
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Lens Mount Type:
CS-Mount
Minimum Aperture:
f/1.5
Digital Zoom:
16x
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1 Second
Exposure Control:
  • Auto
  • Manual
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP/IP
  • UDP
  • RTP
  • RTSP
  • HTTP
  • ICMP
  • FTP
  • SMTP
  • DHCP
  • IGMP

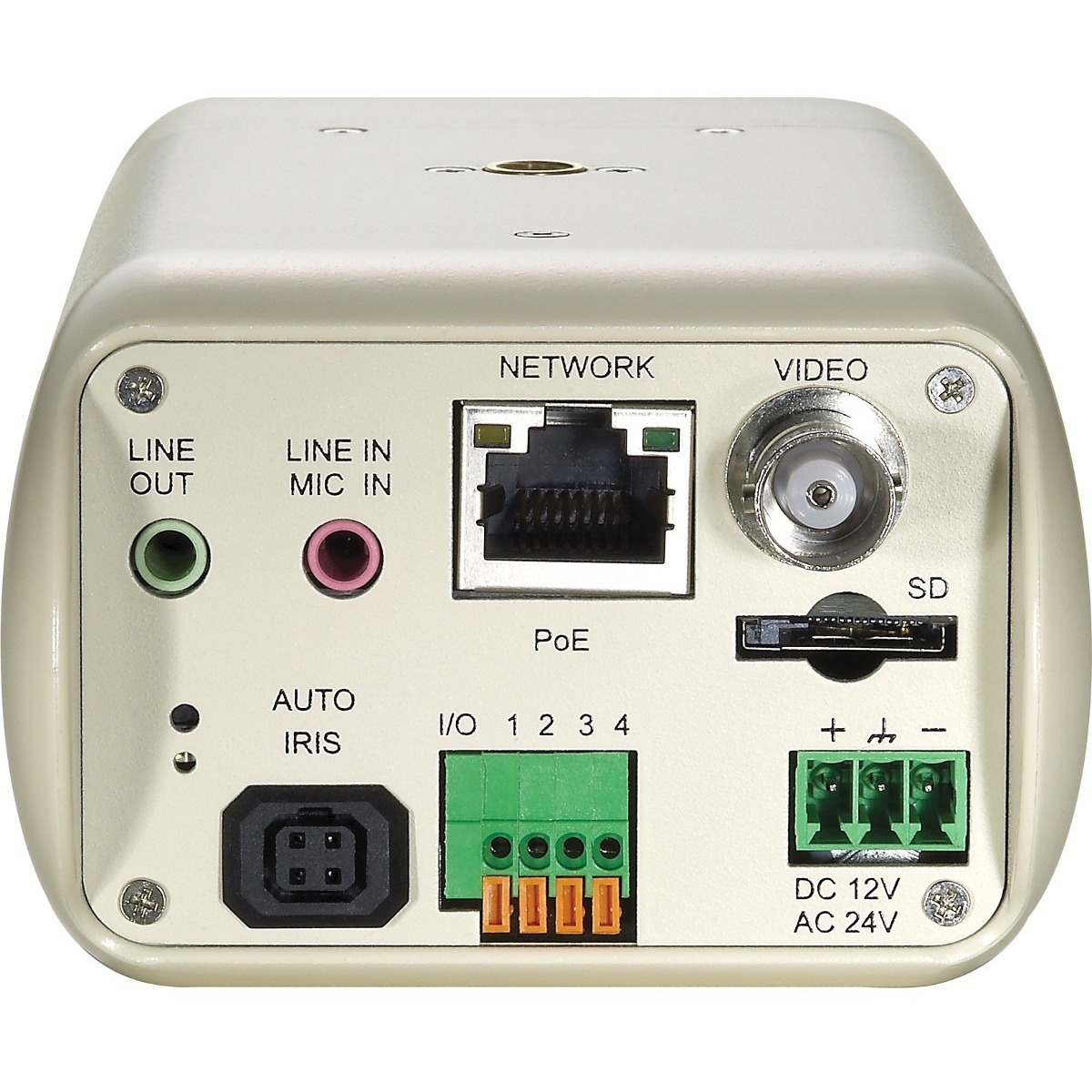

Interfaces/Ports
Analog Video Out:
Yes
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
4 W
Physical Characteristics
Height:
2"
Width:
3"
Depth:
5.3"
Weight (Approximate):
12.70 oz
Miscellaneous
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • FCS-1131 Network Camera
  • Power Adapter
  • Camera Stand
  • RJ-45 Ethernet LAN Cable
  • Quick Installation Guide
  • CD Manual / Utility
System Requirements:

Operating Systems:

  • Microsoft Windows 2000
  • Microsoft Windows XP
  • Microsoft Windows Vista
  • Microsoft Windows 7

Borwsers:

  • Mozilla Firefox
  • Safari
  • Internet Explorer 6.x or Above

Cell Phone Viewer:

  • 3GPP Player

Stream Player:

  • Real Player 10.5 or Above
  • Quick Time 6.5 or Above
Certifications & Standards:
  • CE
  • FCC
Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0846359001271, 5293152943089
UPC: 846359001271
EAN: 0846359001271, 5293152943089
UNSPSC: 46171610
