CP Technologies FCS-3053 Products

The CP Technologies FCS-3053 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

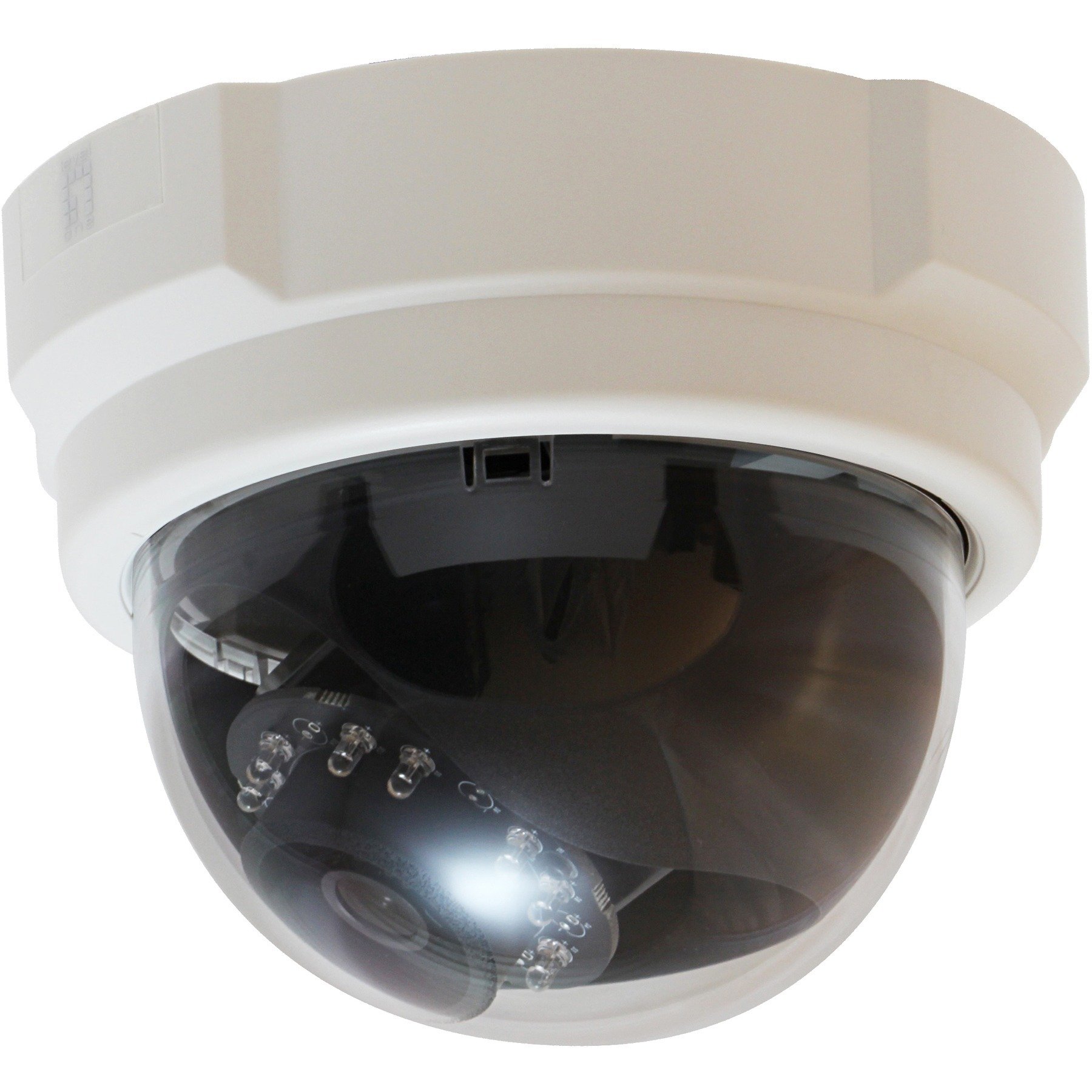

CP Technologies - LevelOne H.264 3-Mega Pixel FCS-3053 PoE IP Dome Network Camera(Day/Night/Indoor), TAA Compliant - 3-MP, PoE

Network camera - Helps achieve high-quality video results
Up to 2048 x 1536 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
3.60 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/1.8 maximum aperture for better light absorption and dependable, better-quality results
Fixed Focus focus mode for clarity and precision to ensure maximum productivity
Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
Wall Mount mount type is reliable and allows trouble-free and easy usage
Day/Night feature for maximum efficiency and convenience
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3.2"

White Balance Modes:

AWB

Color Supported:

Color
Monochrome

Field of View:

72°

Effective Camera Resolution:

3 Megapixel

Video

Video Formats:

MJPEG
H.264

Maximum Video Resolution:

2048 x 1536

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

3.60 mm

Lens Included:

Yes

Maximum Aperture:

f/1.8

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP
UDP
HTTP
HTTPS
DHCP
PPPoE
RTP
RTSP
IPv6
DNS
DDNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

6.02 W

Physical Characteristics

Mount Type:

Wall Mount
Ceiling Mount

Form Factor:

Dome

Height:

Width:

Depth:

3.9"

Weight (Approximate):

10.30 oz

Miscellaneous

Features:

Day/Night
2D Noise Reduction
Back Light Compensation (BLC)

Package Contents:

Fixed Dome Network Camera, Day & Night, IR LEDs
Mounting Kit
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)

System Requirements:

Operation Systems: Microsoft Windows 8/7/Vista/XP

Certifications & Standards:

CE
FCC
ONVIF

Country of Origin:

Taiwan

Item Numbers

GTIN: 0846359034330

UPC: 846359034330

EAN: 0846359034330

UNSPSC: 46171610
