CP Technologies FCS-3071 Products

The CP Technologies FCS-3071 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

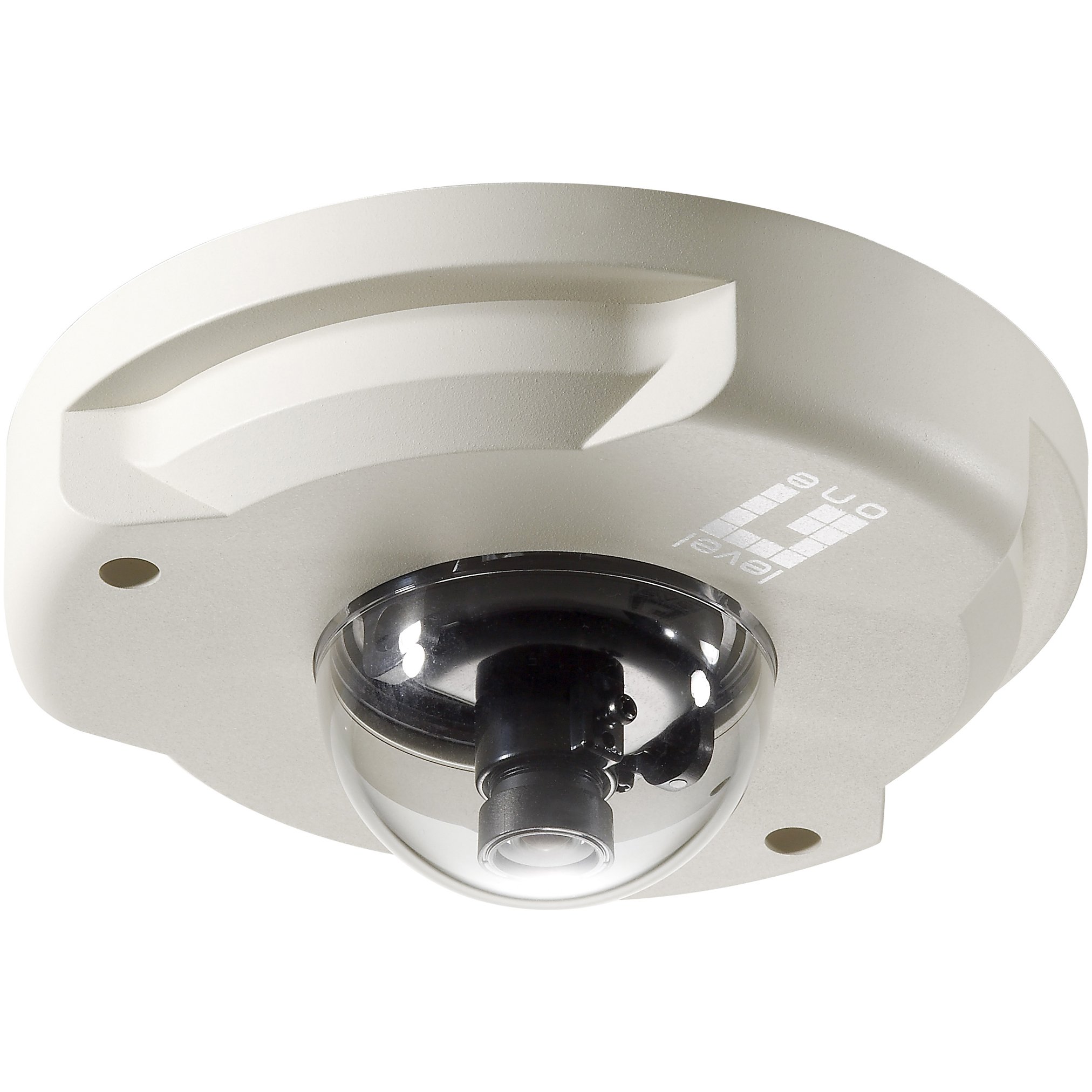

CP Technologies - LevelOne FCS-3071 2-Mega Pixel (CMOS) FCS-3071 10/100 Mbps PoE IP Mini Dome Network Camera - 2-Megapixel Progressive Scan CMOS Sensor, Poe, IP66 Housing, Cable

Network camera - Helps achieve high-quality video results
Up to 1920 x 1080 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
4 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
16x digital zoom efficiently brings you much closer to your subject to get a detailed, sharp image
Auto exposure control effectively recovers from the brightness stability, and the change related to the optimal exposure
Fixed Focus focus mode for clarity and precision to ensure maximum productivity
Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

White Balance Modes:

Auto
Manual

Maximum Illumination:

0.2 lux

Color Supported:

Color

Video

Video Formats:

MJPEG
MPEG-4

Maximum Video Resolution:

1920 x 1080


Maximum Image Resolution:

1920 x 1080

Lens

Lens Type:

Fixed

Maximum Focal Length:

4 mm

Lens Mount Type:

Board Mount

Minimum Aperture:

f/1.5

Digital Zoom:

16x

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1 Second

Exposure Control:

Auto
Manual

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP/IP
UDP
RTP
RTSP
HTTP
ICMP
FTP
SMTP
DHCP
IGMP

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

3 W

Physical Characteristics

Height:

Diameter:

4.3"

Weight (Approximate):

6.35 oz

Miscellaneous

Indoor/Outdoor:

Indoor/Outdoor

Package Contents:

FCS-3071 Network Camera
Allen Wrench
Quick Installation Guide
CD-ROM (Manual / Utility)

System Requirements:

Operating System: Microsoft Windows 2000, XP, Vista, 7
Web Browser: Mozilla Firefox, Safari, Internet Explorer 6.x or above
Cell Phone Viewer: 3GPP player
Stream Player: Real Player 10.5 or above, Quick Time 6.5 or above

Certifications & Standards:

IP66
FCC
CE

Ingress Protection Rating:

IP66

Security Features:

Password Protected

Platform Supported:

Environmentally Friendly:

Yes

Item Numbers

GTIN: 0846359001301, 5293152903458

UPC: 846359001301

EAN: 0846359001301, 5293152903458

UNSPSC: 46171610
