CP Technologies FCS-3093 Products

The CP Technologies FCS-3093 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

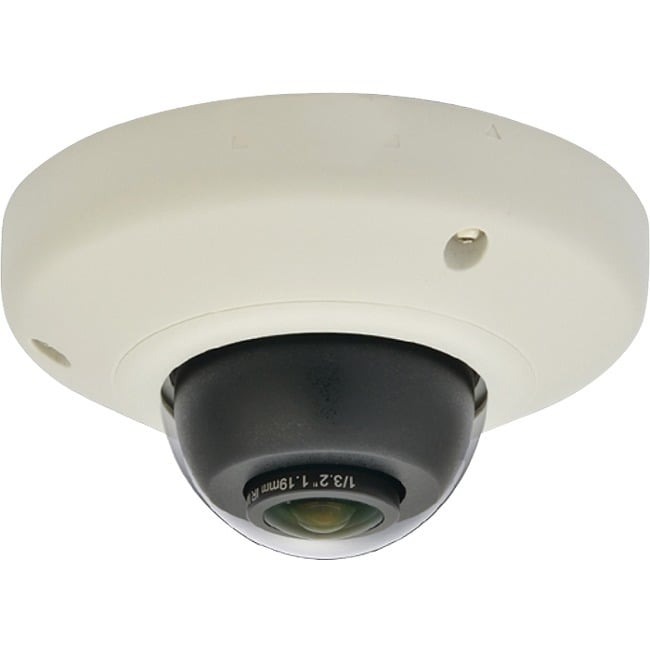

CP Technologies - LevelOne H.264 5-Mega Pixel Panoramic Vandal-Proof Shockproof FCS-3093 PoE WDR IP Dome Network Camera (Day/Night/Indoor/Outdoor), TAA Compliant - 5-MP, Vandal-Proof,Shock proof, PoE, WDR

For remote surveillance needs, this network camera is best suited
Up to 2592 x 1944 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
1.19 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/2 maximum aperture for better light absorption and dependable, better-quality results
Fixed Focus focus mode for better reliance and sharp, detailed results
Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
Ceiling Mount mount type is reliable and allows trouble-free and easy usage
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3.2"

White Balance Modes:

AWB

Color Supported:

Color
Monochrome

Field of View:

109.8° to 180°

Effective Camera Resolution:

5 Megapixel

Video

Video Formats:

MJPEG
H.264

Maximum Video Resolution:

2592 x 1944

Maximum Frame Rate:

15 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

1.19 mm

Lens Included:

Yes

Maximum Aperture:

f/2

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP
UDP
HTTP
HTTPS
DHCP
PPPoE
RTP
RTSP
IPv6
DNS
DDNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

2.91 W

Physical Characteristics

Mount Type:

Ceiling Mount

Form Factor:

Dome

Durability:

Vibration Resistant
Vandal Proof
Weather Proof
Shock Proof

Height:

4.3"

Width:

4.3"

Depth:

2.3"

Weight (Approximate):

1.08 lb

Miscellaneous

Features:

SD Card Local Storage
Back Light Compensation (BLC)
2D Noise Reduction

Indoor/Outdoor:

Outdoor

Package Contents:

FCS-3093 Network Camera
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility,QIG)
Mounting Kit

System Requirements:

Operation Systems: Microsoft Windows 7/Vista/XP

Certifications & Standards:

IP68
IK10
CE
FCC
ONVIF
NEMA 4X
EN50155

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP68

Country of Origin:

Taiwan

Item Numbers

GTIN: 0846359034460

UPC: 846359034460

EAN: 0846359034460

UNSPSC: 46171610
