CP Technologies FCS-4043 Products

The CP Technologies FCS-4043 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

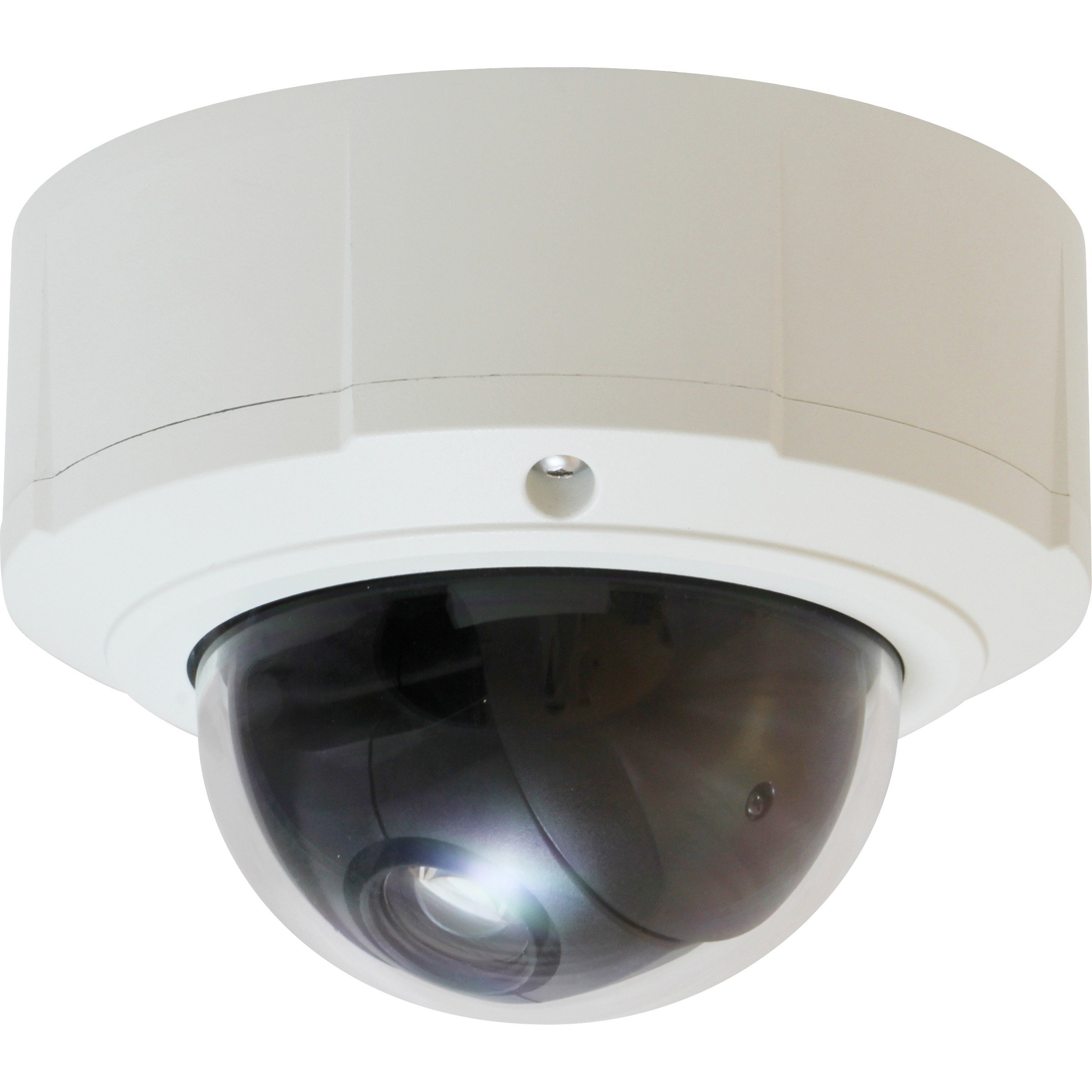

CP Technologies - LevelOne H.264 3-Mega Pixel FCS-4043 P/T/Z PoE WDR IP Dome Network Camera w/10x Optical Zoom (Day/Night/Outdoor), TAA Compliant - 3-MP, 10X Optical Zoom,P/T/Z, PoE, WDR

For remote surveillance needs, this network camera is best suited
Up to 2048 x 1536 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
49 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/3 maximum aperture for reliable, detailed, and sharp output with added dependability
10x optical zoom ensures maximum surveillance productivity without compromising quality
Automatic focus mode for better reliance and sharp, detailed results
Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
Ceiling Mount mount type ensures optimal results and maximum convenience
Day/Night feature for better reliance and usability

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3"

White Balance Modes:

AWB

Color Supported:

Color
Monochrome

Field of View:

5.62° to 49.56°

Effective Camera Resolution:

3 Megapixel

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

2048 x 1536

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

4.90 mm

Maximum Focal Length:

49 mm

Lens Included:

Yes

Minimum Aperture:

f/1.8

Maximum Aperture:

f/3

Optical Zoom:

10x

Focus Modes:

Automatic

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP
UDP
HTTP
HTTPS
DHCP
PPPoE
RTP
RTSP
IPv6
DNS
DDNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour

Interfaces/Ports

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Power Description

Maximum Power Consumption:

12.95 W

Physical Characteristics

Mount Type:

Ceiling Mount
Wall Mount

Form Factor:

Dome

Durability:

Weather Proof

Height:

Width:

Depth:

4.6"

Weight (Approximate):

2.78 lb

Miscellaneous

Features:

Day/Night
SD Card Local Storage
Region of Interest
Back Light Compensation (BLC)
2D Noise Reduction
Built-in Heater
Built-in Fan

Indoor/Outdoor:

Outdoor

Package Contents:

FCS-4043 Network Camera
Mounting Kit
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)

System Requirements:

Operation Systems: Microsoft Windows 8/7/Vista/XP

Certifications & Standards:

IP67
IP66
IK10
CE
FCC
ONVIF
NEMA 4X

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67
IP66

Country of Origin:

Taiwan

Item Numbers

GTIN: 0846359034484

UPC: 846359034484

EAN: 0846359034484

UNSPSC: 46171610
