CP Technologies FCS-5064 Products

The CP Technologies FCS-5064 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

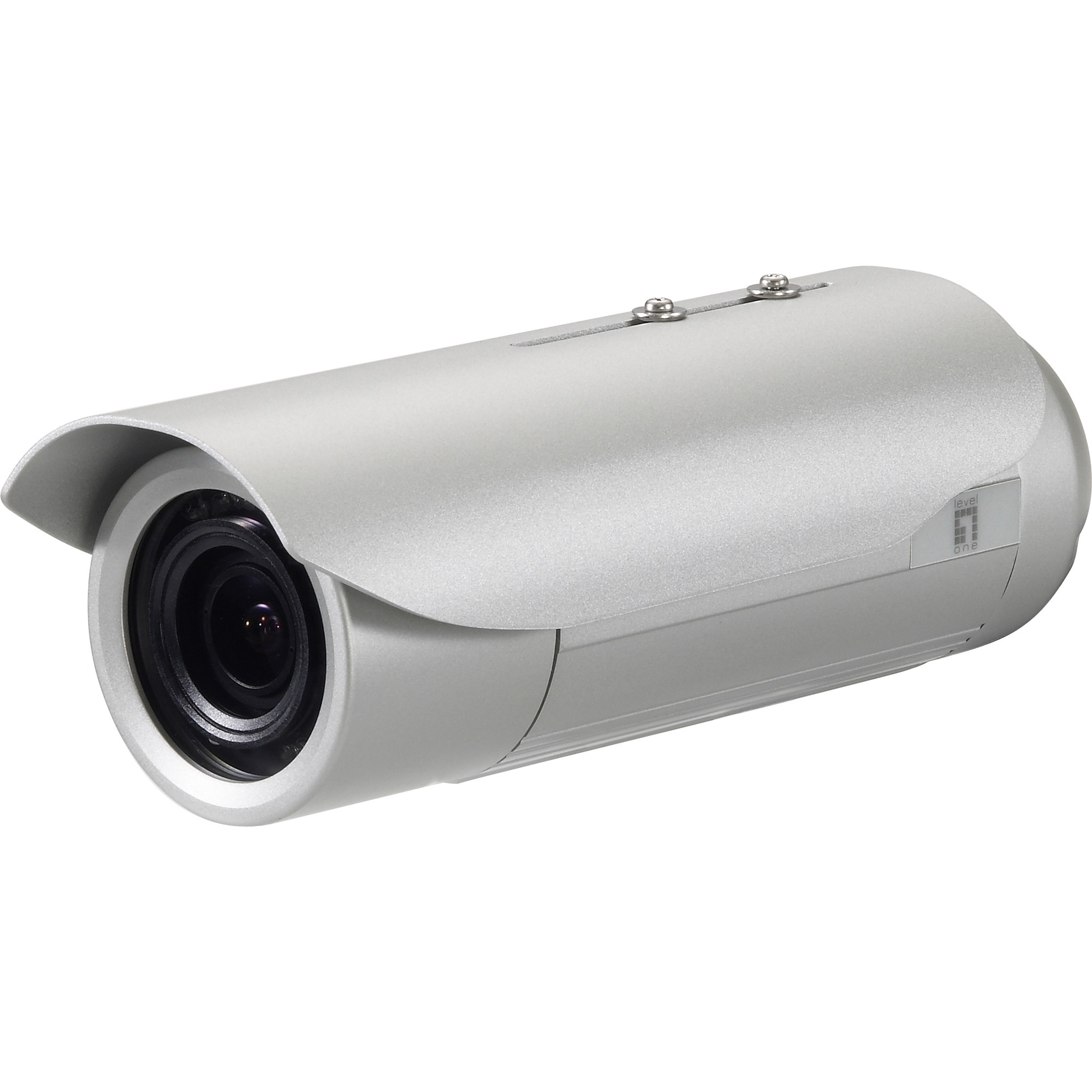

CP Technologies  -  LevelOne H.264 5-Mega Pixel FCS-5064 PoE WDR IP Network Camera w/IR (Day/Night/Outdoor), TAA Compliant - 5-MP, PoE, WDR
  • For remote surveillance needs, this network camera is best suited
  • Up to 2592 x 1944 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 12 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/1.4 maximum aperture for reliable, detailed, and sharp output with added dependability
  • 4.3x optical zoom for desired image clarity and maximum capturing convenience
  • Manual focus mode for better reliance and sharp, detailed results
  • Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
  • Wall mount is Ideal for permanent use with added space efficiency
  • Day/Night feature for maximum productivity with added dependability
Read More
Add to Quote
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
AWB
Color Supported:
  • Color
  • Monochrome
Field of View:
28.2° to 69.2°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Maximum Aperture:
f/1.4
Optical Zoom:
4.3x
Focus Modes:
Manual
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TCP
  • UDP
  • HTTP
  • HTTPS
  • DHCP
  • PPPoE
  • RTP
  • RTSP
  • IPv6
  • DNS
  • DDNS
  • NTP
  • ICMP
  • ARP
  • IGMP
  • SMTP
  • FTP
  • UPnP
  • SNMP
  • Bonjour
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
4.32 W
Physical Characteristics
Mount Type:
Wall Mount
Durability:
  • Weather Proof
  • Vandal Proof
Height:
2.9"
Width:
3"
Depth:
7.6"
Weight (Approximate):
2.11 lb
Miscellaneous
Features:
  • Day/Night
  • SD Card Local Storage
  • Back Light Compensation (BLC)
  • 2D Noise Reduction
Indoor/Outdoor:
Outdoor
Package Contents:
  • FCS-5064 Network Camera
  • Bracket
  • Mounting Kit
  • Screw Kit
  • Quick Installation Guide
  • Resource CD (User Manual, QIG)
System Requirements:
Operation Systems: Microsoft Windows 8/7/Vista/XP
Certifications & Standards:
  • IP66
  • IP68
  • IK10
  • CE
  • FCC
  • ONVIF
  • NEMA 4X
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP68
  • IP66
Country of Origin:
Taiwan
Item Numbers
GTIN: 0846359034293
UPC: 846359034293
EAN: 0846359034293
UNSPSC: 46171610
