CP Technologies FCS-5065 Products

The CP Technologies FCS-5065 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CP Technologies - LevelOne H.264 5-Mega Pixel FCS-5065 PoE WDR IP Dome Network Camera w/12x Optical Zoom (Day/Night/Indoor/Outdoor), TAA Compliant - 5-MP, 12X Optical Zoom, PoE, WDR

Up to 2592 x 1944 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
62.40 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/3 maximum aperture for reliable, detailed, and sharp output with added dependability
12x optical zoom for bringing the subject closer for maximum surveillance efficiency
Automatic focus mode for clarity and precision to ensure maximum productivity
Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
Wall mount encourages collaboration, interactivity with maximum productivity
Day/Night feature for maximum efficiency and convenience
Wired connectivity technology helps you always stay connected to your network camera for maximum productivity

Need a different version? See all CP Technologies Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3"

White Balance Modes:

AWB

Color Supported:

Color
Monochrome

Field of View:

4.8° to 48.4°

Effective Camera Resolution:

5 Megapixel

Video

Video Formats:

MJPEG
H.264

Maximum Video Resolution:

2592 x 1944

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

5.20 mm

Maximum Focal Length:

62.40 mm

Lens Included:

Yes

Minimum Aperture:

f/1.8

Maximum Aperture:

f/3

Optical Zoom:

12x

Focus Modes:

Automatic

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP
UDP
HTTP
HTTPS
DHCP
PPPoE
RTP
RTSP
IPv6
DNS
DDNS
NTP
ICMP
ARP
IGMP
SMTP
FTP
UPnP
SNMP
Bonjour

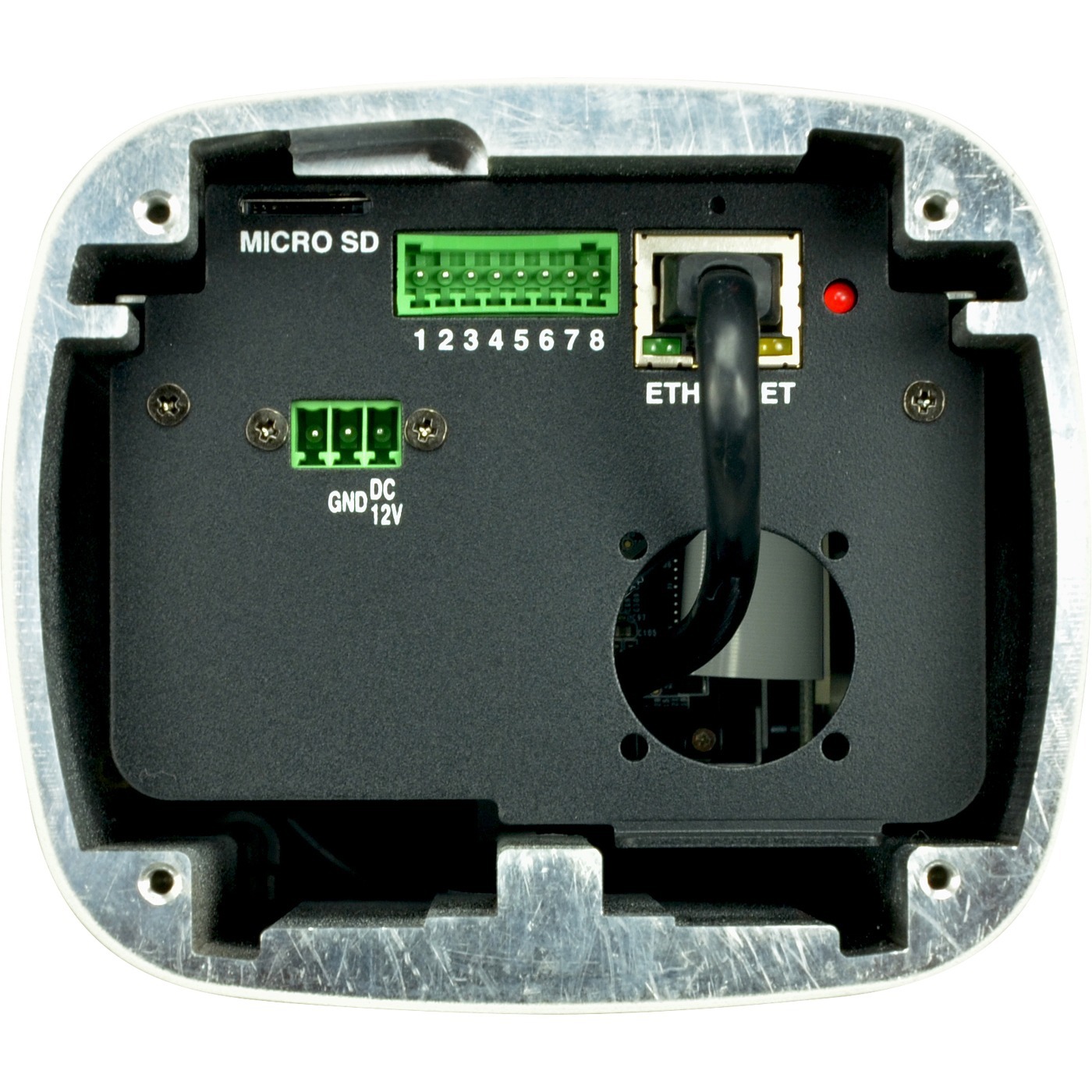

Interfaces/Ports

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Power Description

Maximum Power Consumption:

12 W

Physical Characteristics

Mount Type:

Wall Mount

Form Factor:

Dome

Durability:

Weather Proof
Vandal Proof

Height:

Width:

4.8"

Depth:

9.4"

Weight (Approximate):

5.27 lb

Miscellaneous

Features:

Day/Night
SD Card Local Storage
Built-in Heater
Back Light Compensation (BLC)
2D Noise Reduction

Indoor/Outdoor:

Outdoor

Package Contents:

FCS-5065 Network Camera
Bracket
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility,QIG)
Mounting Kit

System Requirements:

Operation Systems: Microsoft Windows 7/Vista/XP

Certifications & Standards:

IP67
IK10
CE
FCC
ONVIF
NEMA 4X

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Country of Origin:

Taiwan

Item Numbers

GTIN: 0846359034316

UPC: 846359034316

EAN: 0846359034316

UNSPSC: 46171610
