CradlePoint 170654-000 Products

The CradlePoint 170654-000 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CradlePoint - CradlePoint 5-in-1 GPS, Modem & WiFi Screw-mount - Range - UHF, SHF - 698 MHz, 1.71 GHz, 2.30 GHz, 2.90 GHz, 1.58 GHz to 960 MHz, 2.17 GHz, 2.70 GHz, 3.50 GHz, 1.60 GHz, 2.40 GHz, 5 GHz - GPS, Cellular Network, Wireless Data Network, OutdoorOmni-directional

Delivers?enhanced performance at 698 MHz to 960 MHz operating frequency range
Get improved gps signal from further away with this antenna
Eases up the installation procedure thanks to its 360-degree horizontal pattern

Need a different version? See all CradlePoint Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.

CradlePoint 170654-000 Products Overview

How It Works

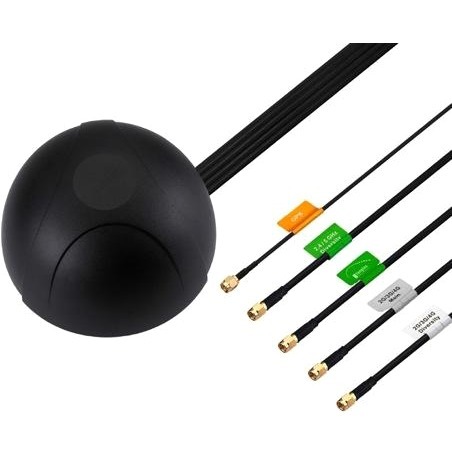

The 5-in-1 GPS-GLONASS, two cellular (3G/4G/LTE) and two WiFi 2.4/5 GHz screw-mount antenna with 3M cables is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and WiFi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS antenna has a Front End SAW Filter.

Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the re-quired signal to noise ratio and throughput required to solve these challenges.

Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plas-tic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70 "), critical for buses, trains and other commercial transport applications.

Detailed Specs

Technical Information

Directivity:

Omni-directional

Frequency Band Type:

Operating Frequency Range:

698 MHz to 960 MHz
1710 MHz to 2170 MHz
2300 MHz to 2700 MHz
2900 MHz to 3500 MHz
1575.42 MHz to 1602 MHz
2.4 GHz
5 GHz

Cable Length:

9.84 ft

Features:

Ground Plane
Water Proof
MIMO Technology
Low Noise Amplifier (LNA)

Interfaces/Ports

Connector Type:

SMA

USB:

Miscellaneous

Application/Usage:

GPS
Cellular Network
Wireless Data Network
Outdoor

Package Contents:

5-in-1 GPS, Modem & WiFi Screw-mount
3m Cables

Certifications & Standards:

IP67
IEEE 802.11n
IEEE 802.11ac

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

GTIN: 0000099159313, 0804879531005, 4963273114132, 4973153188344

UPC: 000099159313, 804879531005

EAN: 0000099159313, 0804879531005, 4963273114132, 4973153188344

UNSPSC: 43221706
