CradlePoint AER3100LP6-NA Data Networking

The CradlePoint AER3100LP6-NA Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CradlePoint - CradlePoint IEEE 802.11ac Cellular, Ethernet Modem/Wireless Router - 4G - LTE, HSPA+ - 2.40 GHz ISM Band - 5 GHz UNII Band - 13 x Broadband Port - PoE Ports - Gigabit Ethernet - VPN Supported - Rack-mountable, Desktop

Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices for a smooth network experience
Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
Gigabit Ethernet port for ultra-fast wired network speeds

Need a different version? See all CradlePoint Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

CradlePoint AER3100LP6-NA Data Networking

Overview

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.

CradlePoint AER3100LP6-NA Data Networking Overview

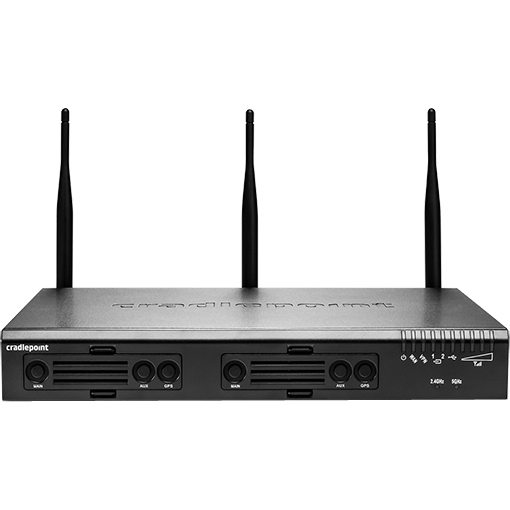

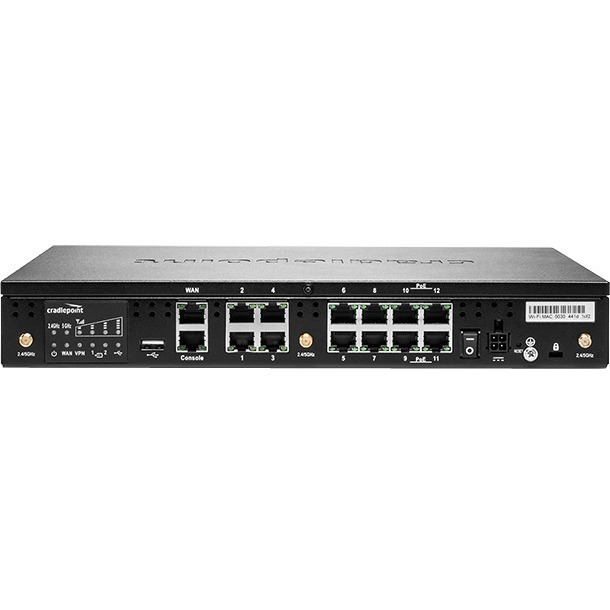

The Cradlepoint AER3100 is an advanced edge routing solution that combines cloud-management, advanced security (UTM), WAN Diversity, industry leading 4G LTE failover, high performance WiFi, and dual modem capabilities for deployment versatility when wired lines are too costly or not available. Administrators can extend best-in-breed management and security applications to remote branches with a solution that is customizable and lowers the total cost of ownership in a single deployment.

Detailed Specs

Wireless Specifications

Broadband Transmission Technology:

Cellular
Ethernet

Wireless LAN Standard:

IEEE 802.11ac

ISM Band:

Yes

UNII Band:

Yes

ISM Maximum Frequency:

2.40 GHz

UNII Maximum Frequency:

5 GHz

Cellular Generation:

Cellular Data Connectivity Technology:

LTE
HSPA+

Interfaces/Ports

PoE (RJ-45) Port:

Yes

Number of Broadband (RJ-45) Ports:

Network & Communication

Ethernet Technology:

Gigabit Ethernet

VPN Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable
Desktop

Height:

1.8"

Width:

12.2"

Depth:

10.6"

Miscellaneous

Package Contents:

AER3100 Modem/Wireless Router
MC400 4G LTE Advanced or LTE modem with security screws (2)
External 3G/4G mobile broadband modem antennas (2) (SMA); finger tighten only
External dual-band high-gain WiFi antennas (3) reverse SMA (5 dBi, 2.4 GHz, 5 dBi 5 GHz, VSWR ? 2); finger tighten only
54V 2.25A AC/DC power adapter
Ethernet cable
Quick Start Guide
Warranty information
2 x Brackets for rack mounting with screws (8 + 4)
4 x Rubber feet for desk mounting Field-replaceable battery for real-time clock, with pull tab

Environmentally Friendly:

Yes

Environmental Certification:

RoHS 2
WEEE

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0804879577713

UPC: 804879577713

EAN: 0804879577713

UNSPSC: 43222609
