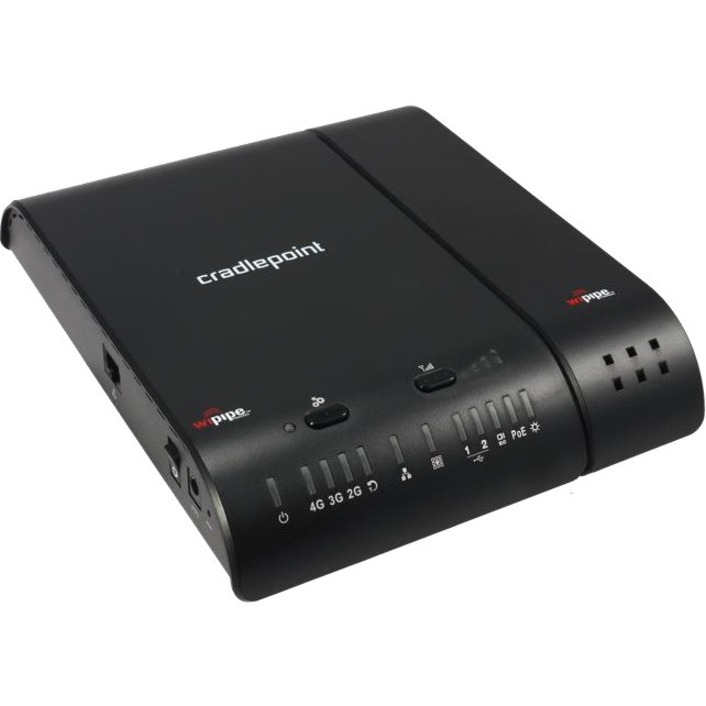

CradlePoint CBA750B-LPE-VZ Data Networking

A newer version of this item is available.
It is replaced by the CradlePoint CBA850LPE-VZ Data Networking.

CradlePoint - CradlePoint ARC CBA750B-LPE-VZ Cellular Modem/Wireless Router - 4G - LTE 700, LTE 850, LTE 1700, LTE 1900, LTE 2100, WCDMA 850, WCDMA 900, WCDMA 1900, WCDMA 2100, CDMA 800, CDMA 1900, ... - LTE, UMTS, HSPA+, EVDO, GPRS, EDGE - 2 x Antenna - 1 x Network Port - Fast Ethernet - Desktop

Savor simultaneous downloading and seamless streaming
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network

Need a different version? See all CradlePoint Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

CradlePoint CBA750B-LPE-VZ Data Networking

Overview

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.

CradlePoint CBA750B-LPE-VZ Data Networking Overview

WIRELESS WAN CONNECTIVITY
The CradlePoint CBA750B integrated mobile broadband series adapters enable easy-to-install wireless WAN connectivity in fixed-business locations. For distributed enterprises like branch offices, retail stores, restaurants, and small businesses, the CBA750B provides 3G/4G wireless network connectivity to keep your business up and running.

FAILOVER MADE SIMPLE
The CradlePoint CBA750B 3G/4G cellular broadband adapter provides IP passthrough capabilities for any device that requires wireless broadband access. For most applications, simply connect the CBA750B to an existing CPE router configured for WAN failover, and it's ready to go. The CBA750B handles the wireless WAN connection through the integrated 3G/4G modem when failover occurs.

Detailed Specs

Wireless Specifications

Broadband Transmission Technology:

Cellular

ISM Band:

UNII Band:

Cellular Generation:

Cellular Network Supported:

LTE 700
LTE 850
LTE 1700
LTE 1900
LTE 2100
WCDMA 850
WCDMA 900
WCDMA 1900
WCDMA 2100
CDMA 800
CDMA 1900
GSM 850
GSM 900
GSM 1800
GSM 1900

Cellular Data Connectivity Technology:

LTE
UMTS
HSPA+
EVDO
GPRS
EDGE

Total Number of Antennas:

Antenna Gain:

2 dBi

Antenna Connector:

SMA Connector

Features:

GPS Capable

Interfaces/Ports

Number of Network (RJ-45) Ports:

Network (RJ-11):

VGA:

Serial:

USB:

Powerline:

PoE (RJ-45) Port:

Management Port:

I/O Expansions

Expansion Slots:

2 x SIM Card

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX

Management & Protocols

Management:

Remote Management
Web Based Management
VLAN
SNMP v1/2c/3
Telnet
CLI
DHCP

Security Features:

URL Filtering
IP Address Filtering
MAC Address Filtering
DMZ
PPTP
L2TP
PPPoE
IPsec
SPI
NAT
RADIUS
TACACS+

Power Description

Input Voltage:

12 V AC

Power Source:

AC Adapter
PoE

Physical Characteristics

Form Factor:

Desktop

Height:

1.6"

Width:

7.3"

Depth:

Weight (Approximate):

1.32 lb

Miscellaneous

Package Contents:

ARC CBA750B-LPE-VZ Wireless Router
2 x External Mobile Broadband Modem Antennas w/ multiplexing for GPS
CAT5 Ethernet Cable
12V / 1.5A Power Supply
Quick Start Guide with Warranty Information

System Requirements:

Web Browsers:

Firefox v2.0
Internet Explorer v7.0
Safari v1.0
Google Chrome

Certifications & Standards:

FCC
IEEE 802.1Q

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0702458683902

UPC: 702458683902

EAN: 0702458683902

UNSPSC: 43222609

Reviews

Q&A

Get help from a Barcoding Expert!

The CradlePoint CBA750B-LPE-VZ Data Networking is also known as CBA750BLPEVZ
