CradlePoint IBR600LE-VZ Telecommunication Equipment

The CradlePoint IBR600LE-VZ Telecommunication Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CradlePoint - CradlePoint COR IBR600LE IEEE 802.11n Wireless Router - 4G - 2.40 GHz ISM Band - 4 x Antenna - 6.75 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - USB - Desktop

With the wireless router, you can enjoy wireless internet throughout your home or office
Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
Access USB-compatible peripherals accross the wireless network via built-in USB port
Desktop installation - Ideal for deployments outside the wiring closet

Need a different version? See all CradlePoint Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

CradlePoint IBR600LE-VZ Telecommunication Equipment

Overview

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.

CradlePoint IBR600LE-VZ Telecommunication Equipment Overview

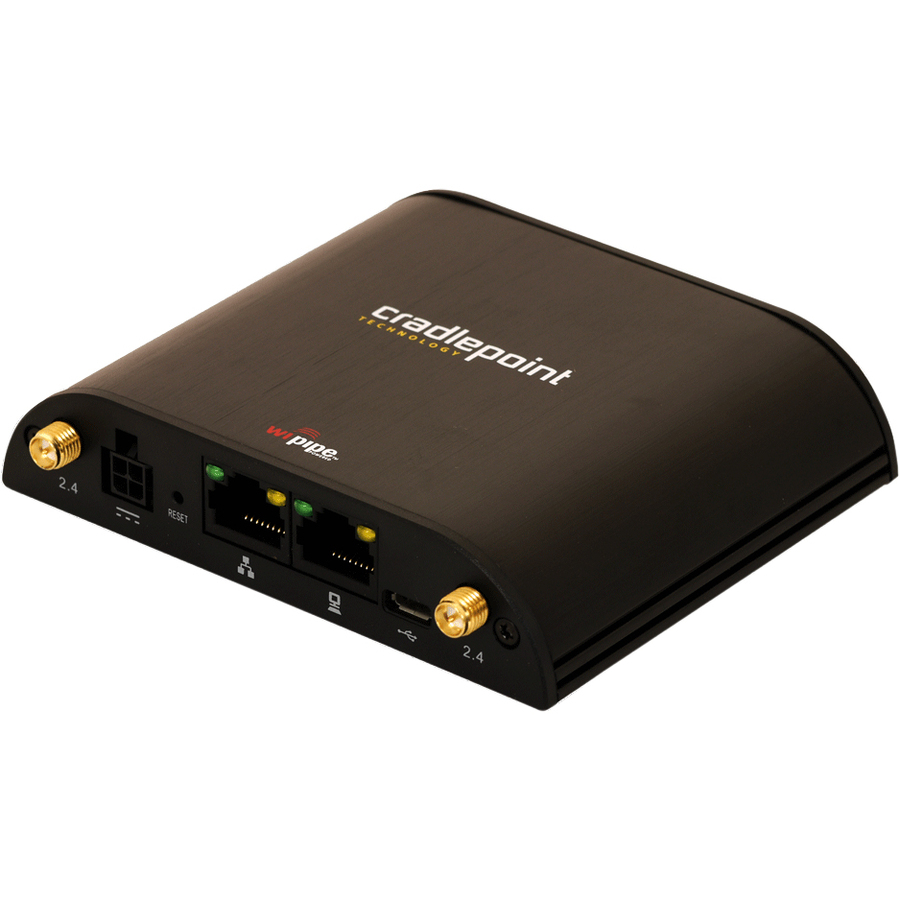

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured, compact router designed for critical business and enterprise applications that require 24/7 connectivity.

With its compact size, sleek metal case, mounting bracket, external mobile broadband and WiFi antennas, CradlePoint COR is ideal for use in high-availability portable or fixed applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR, which features a built-in modem - just insert an activated SIM and go. It also supports traditional wired data networks like DSL, Cable or T1 for maximum network flexibility.

Detailed Specs

Wireless Specifications

Broadband Transmission Technology:

Cellular

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

ISM Maximum Frequency:

2.40 GHz

Cellular Generation:

Cellular Network Supported:

CDMA2000 1X

Cellular Data Connectivity Technology:

LTE
EVDO

Total Number of Antennas:

Antenna Connector:

RP-SMA Connector

Total Wireless Transmission Speed:

6.75 MB/s

Wireless Security:

WEP
WPA
WPA2
WPA2-Enterprise
AES

Features:

Quality of Service (QoS)
MIMO Technology

Interfaces/Ports

Ethernet Port:

Yes

Fast Ethernet Port:

Yes

Gigabit Ethernet Port:

Number of Network (RJ-45) Ports:

Network (RJ-11):

VGA:

Serial:

USB:

Yes

Powerline:

PoE (RJ-45) Port:

Management Port:

Number of Broadband (RJ-45) Ports:

I/O Expansions

Expansion Slots:

1 x SIM Card

Network & Communication

Network Technology:

10/100Base-TX

Management & Protocols

Management:

VLAN
DHCP
Web Based Management
SNMP v1/v2c/v3
CLI
WiPipe Central Management

Security Features:

VPN Pass-Through
IPSec
PPTP
L2TP
PPPoE
MAC Address Filtering
NAT
DMZ
Website Filtering
Content Filtering
SPI
SSH

Power Description

Input Voltage:

12 V DC

Power Source:

AC Adapter

Physical Characteristics

Form Factor:

Desktop

Height:

0.9"

Width:

Depth:

3.3"

Weight (Approximate):

7.20 oz

Miscellaneous

System Requirements:

Web Browsers:

Firefox v2.0
Internet Explorer v7.0
Chrome
Safari v1.0

Certifications & Standards:

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3
IEEE 802.3u
IEEE 802.1Q
FCC

Item Numbers

GTIN: 0661799365727, 0702458684091, 0804879378037

UPC: 661799365727, 702458684091, 804879378037

EAN: 0661799365727, 0702458684091, 0804879378037

UNSPSC: 43222609
