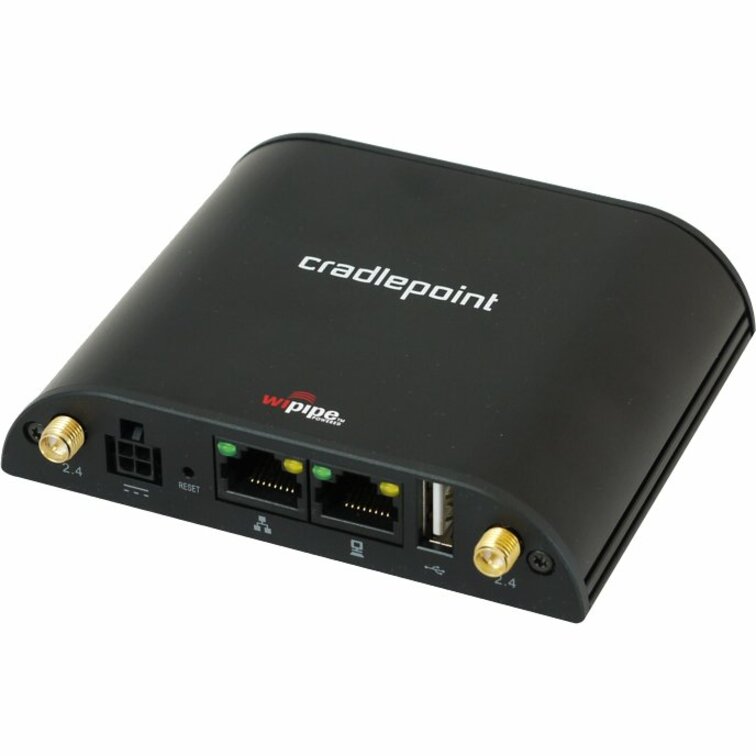

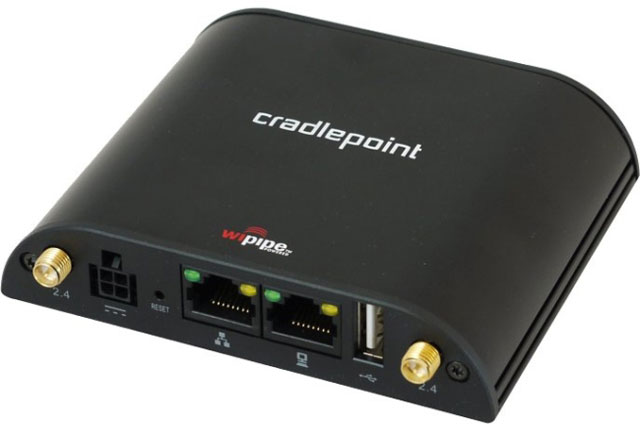

CradlePoint IBR650LE-VZ-ES1 Wireless Router

The CradlePoint IBR650LE-VZ-ES1 Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CradlePoint - CradlePoint COR IBR650LE-VZ Wireless Router - 4G - 2 x Antenna - 2 x Broadband Port - USB - Fast Ethernet - Desktop, Wall Mountable

Experience high-performance and reliable wireless connectivity to the Internet and other offices
Access USB-compatible peripherals accross the wireless network via built-in USB port
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Desktop installation - Ideal for deployments outside the wiring closet

Need a different version? See all CradlePoint Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

CradlePoint IBR650LE-VZ-ES1 Wireless Router

Overview

CradlePoint Parts Accessory Model Overview

Products and parts from CradlePoint.

CradlePoint IBR650LE-VZ-ES1 Wireless Router Overview

THE HEART OF YOUR M2M NETWORK

The CradlePoint COR Series is built for your M2M network. It's an affordable, highly-featured compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, and external mobile broadband antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR, just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Detailed Specs

Wireless Specifications

Broadband Transmission Technology:

Ethernet
Cellular

ISM Band:

UNII Band:

Cellular Generation:

Cellular Network Supported:

LTE 700
CDMA 800
CDMA 1900

Cellular Data Connectivity Technology:

EVDO
LTE

Total Number of Antennas:

Antenna Gain:

2 dBi

Antenna Connector:

SMA Connector

Wireless Security:

WPA2
WEP
WPA
WPA2 Enterprise
AES
RADIUS

Features:

GPS Capable
Quality of Service (QoS)
MIMO Technology

Interfaces/Ports

Network (RJ-11):

VGA:

Serial:

USB:

Yes

Powerline:

PoE (RJ-45) Port:

Management Port:

Yes

Number of Broadband (RJ-45) Ports:

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX

Management & Protocols

Management:

SNMP v1/2c/3
CLI
DHCP
Telnet
Web Based Management
Remote Management

Security Features:

URL Filtering
IP Address Filtering
DMZ
Protocol Filtering
MAC Address Filtering
PPPoE
IPsec
Port Blocking
NAT
L2TP
PPTP
SPI

Power Description

Input Voltage:

12 V DC

Power Source:

AC Adapter

Physical Characteristics

Form Factor:

Desktop
Wall Mountable

Height:

0.9"

Width:

Depth:

3.3"

Weight (Approximate):

7.20 oz

Miscellaneous

Package Contents:

COR IBR650LE-VZ Wireless Router
Metal Mounting Bracket
2 x 3G/4G Antenna
Power Adapter
Setup Guide with Warranty Information

System Requirements:

Web Browsers:

Internet Explorer v7.0
Safari v1.0
Firefox v2.0
Chrome

Certifications & Standards:

PTCRB
FCC
CE
IC

IEEE Standards:

802.1Q/X
802.3

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0804879490296

UPC: 804879490296

EAN: 0804879490296

UNSPSC: 43222609
