Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5
CradlePoint MA1-1700600M-NNA Wireless Router
Part Number:
MA1-1700600M-NNA
Model:
IBR1700
CradlePoint IBR1700 Data Networking Model Overview

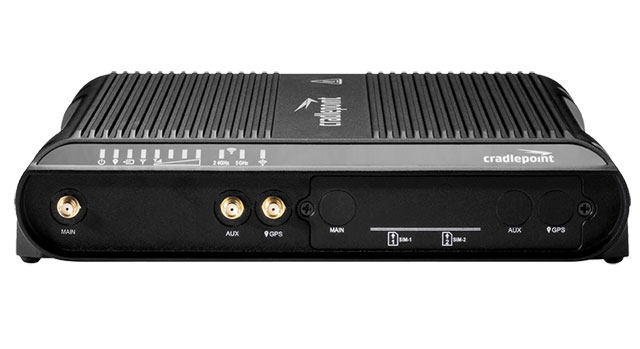

The Cradlepoint COR IBR1700 is a robust mobile networking solution designed for high-performance connectivity in challenging environments. With its integrated 3G/4G modem and dual-band WiFi capabilities, this hardened metal router offers reliable and secure internet access for up to 192 devices. Its advanced features, including failover capabilities, load balancing, and GPS support, make it ideal for businesses that demand reliable connectivity on the go. The COR IBR1700 ensures seamless operation and redundancy, providing peace of mind in any scenario.
Key features:
- Dual-modem capability with MC400 modem slot for enhanced flexibility.
- Up to 600 Mbps LTE Advanced speeds with automatic carrier selection.
- Simultaneous Tri-Band WiFi supporting 192 connected devices.
- Advanced security features including 802.1x authentication and application-aware firewall.
- Remote management via Cradlepoint NetCloud Manager for real-time monitoring.
Specifications:
- WAN:
- Integrated 600M LTE Advanced modem
- Dual-modem capable with MC400 slot
- Five LAN/WAN switchable Ethernet ports
- WiFi:
- Dual-Band 802.11 a/b/g/n/ac, wave 2 MU-MIMO
- Up to 192 connected devices (64 @ 2.4 GHz, 128 @ 5 GHz)
- Security:
- 802.1x authentication and application-aware firewall
- RADIUS and TACACS+ support
- Operating Environment:
- Temperature range: -30 °C to 70 °C
- Humidity: 5% to 95% non-condensing
- Power:
- DC input: 9-36 VDC
- Power consumption: 10 mW (sleep) to 24 W (heavy usage)
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Ethernet
- Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Data Connectivity Technology:
- LTE Advanced
- HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
USB:
Yes
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
8.8"
Depth:
7.5"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:
- COR IBR1700-600M Modem/Wireless Router
- Ruggedized High-Performance Router With Embedded Business-Class LTE Modem
- Safety, Regulatory, And Warranty Guide
- 4-Wire Power/GPIO Cable (3-meters)
Environmentally Friendly:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Restriction of Hazardous Substances (RoHS) 2
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0804879606116
UPC:
804879606116
EAN:
0804879606116
UNSPSC:
43222609
Recommended Accessories
Category
- CradlePoint Charging Cradles and Telecommunications Products (4)
- Data Networking Device Accessories (4)
- Wireless Adapters (1)
Recommended Accessories for Model: CradlePoint MA1-1700600M-NNA Wireless Router
Top CradlePoint Charging Cradles and Telecommunications Products Purchased With CradlePoint MA1-1700600M-NNA
-
CradlePoint 170717-000 AccessoryCOR IBR1700, IBR900/IBR950 POWER SUPPLY INCLUDES US, EU, UK, AU ADAPTERS (-20C TO 60C).In Stock$24.99 -
CradlePoint 170750-000 AccessoryCRADLEPOINT, RACK-MOUNT KIT FOR IBR1700 (INCLUDES 2 WING BRACKETS AND 4 M4 SCREWS).Item on backorder — chat for lead timePlease Call for Pricing or to Purchase -
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Top Data Networking Device Accessories Purchased With CradlePoint MA1-1700600M-NNA
-
CradlePoint 170717-000 AccessoryCOR IBR1700, IBR900/IBR950 POWER SUPPLY INCLUDES US, EU, UK, AU ADAPTERS (-20C TO 60C).In Stock$24.99
-
CradlePoint 170750-000 AccessoryCRADLEPOINT, RACK-MOUNT KIT FOR IBR1700 (INCLUDES 2 WING BRACKETS AND 4 M4 SCREWS).Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
-
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Top Wireless Adapters Purchased With CradlePoint MA1-1700600M-NNA
-
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Frequently Asked Questions
What are the main connectivity options available on the CradlePoint MA1-1700600M-NNA?

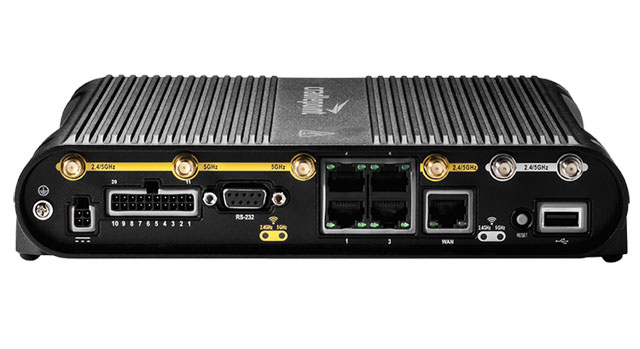

The CradlePoint MA1-1700600M-NNA offers five Gigabit Ethernet ports for LAN/WAN connectivity, an integrated 600M LTE Advanced modem with DC-HSPA+ failover, and three-radio Gigabit Wave 2 ac WiFi supporting simultaneous tri-band operation (802.11 a/b/g/n/ac wave 2). This combination provides flexible networking options for vehicles, mobile command centers, and remote locations requiring robust wireless WAN connectivity.
Is the CradlePoint IBR1700 suitable for SD-WAN deployments in mobile environments?
Yes, the CradlePoint MA1-1700600M-NNA is specifically designed to extend the value of SD-WAN to mobile networks in vehicles and mobile command centers. The ruggedized IBR1700 router combines multiple connectivity options—LTE, Ethernet, and WiFi—enabling reliable SD-WAN deployments anywhere robust wireless WAN connectivity is required.
What VPN and routing capabilities does this CradlePoint router support?
The CradlePoint MA1-1700600M-NNA supports advanced VPN and routing features including IPsec tunnels, L2TP, GRE tunneling, OSPF/BGP/RIP2, policy-based routing, NAT-less routing, virtual server/port forwarding, and IPv6. It also supports OpenVPN and includes VTI tunnel support, making it suitable for enterprise-grade network deployments.
What security features are included with the CradlePoint MA1-1700600M-NNA?
The router includes comprehensive security features such as NetCloud Perimeter compatibility, RADIUS and TACACS+ support, certificate support, application-level gateways, MAC address filtering, advanced security mode with local user management, FIPS 140-2 Inside version availability, application-aware firewall, IP filtering, content filtering, and zone-based object firewall with host address, port, and MAC address filtering.
What management and monitoring options are available for the CradlePoint IBR1700?
The CradlePoint MA1-1700600M-NNA can be managed through CradlePoint NetCloud Manager (subscription required), web UI, API, and CLI. Management capabilities include data usage alerts at both router and per-client levels, advanced troubleshooting support, device alerts, SNMP monitoring, SMS control, and auto APN recovery for reliable connectivity.
What are the operating temperature specifications for the CradlePoint MA1-1700600M-NNA?
The CradlePoint MA1-1700600M-NNA is designed for ruggedized mobile deployments with an operating temperature range of -20°C to 60°C (-4°F to 140°F). Contact us today at barcodesinc.com to discuss whether this router meets your specific environmental requirements for your application.
