D-Link DES-3828 Data Networking

The D-Link DES-3828 Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

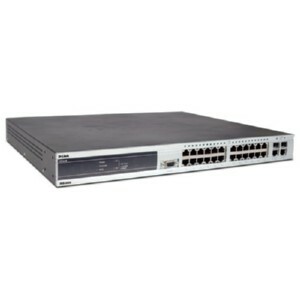

D-Link Networking - D-Link xStack DES-3828 Multilayer Managed Switch - 24 x 10/100Base-TX, 2 x 1000Base-T, 2 x 1000Base-T

Features 24 networking ports to meet the requirements of the most demanding workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
Built-in power supply to ensure all components are being supplied with accurate voltage
Rack mounting enables you to organize wires & secure cables for professional installation

Need a different version? See all D-Link Networking Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

D-Link Networking Accessory Model Overview

D-Link Networking products.

D-Link DES-3828 Data Networking Overview

For the SMB requiring a cost effective core switching solution, as well as for larger Enterprise and Metropolitan Service Providers (MSP) environments needing a managed, feature rich switch capable of up linking to backbone switches, the xStack DES-3828 is designed to meet the needs of the most demanding departmental and enterprise connectivity applications. The D-Link xStack DES-3828 Switch is a fully managed Layer 3 switch that provides (24) 10/100Mbps Fast Ethernet ports and (2) Combo SFP/1000BASE-T Gigabit Ethernet ports. In addition, (2) fixed 1000BASE-T ports in the back-panel can provide a dedicated trunk connection between devices or core switches. The xStack DES-3828 also provides virtual stacking functionality via D-Link SIM technology allowing up to 32 units to be managed via a single IP address. With support for Q-in-Q Double VLAN tagging1, Ipv6 aware1, Dynamic Layer 3 Routing, IEEE802.1s1, and bandwidth control, the xStack DES-3828 incorporates advanced features suitable for the MSP as well as the SMB and Enterprise size network.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Uplink Port:

Yes

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

24 x Fast Ethernet Network
2 x Gigabit Ethernet Uplink
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

802.1q VLANs (Up to 4000 Groups)
Priority Queues: 8 Queues (Strict Priority or Weight Round Robin Queue Scheduling)
Telnet
CLI
RMON (4 Groups)
SSH
Web-based HTTP
SNMP v1/ v2/ v3
Syslog
DHCP Client
Web GUI Traffic Monitoring

Power Description

Input Voltage:

110 V AC
220 V AC

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.4"

Depth:

12.2"

Weight (Approximate):

8.60 lb

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0790069276811

UPC: 790069276811

EAN: 0790069276811

UNSPSC: 43222612
