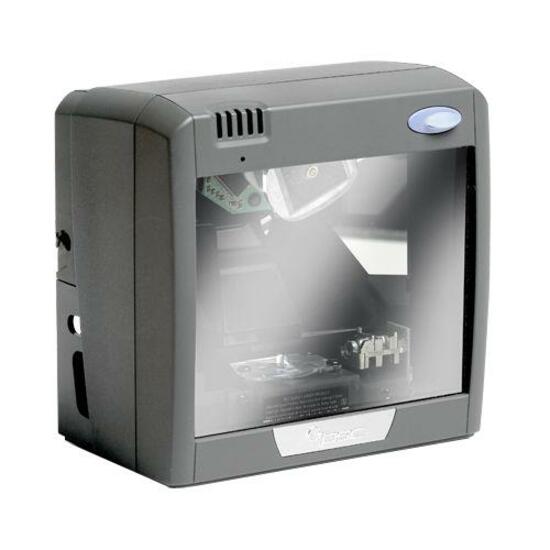

Datalogic 78000-00111-0302 Barcode Scanner

The Datalogic 78000-00111-0302 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 2200VS  -  Multi I/F, STD Mount with IBM Port 9B 15' (4.5m) Cable and US Power Supply
Scanner Capability
1D
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Datalogic Magellan 2200VS Barcode Scanners

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Datalogic 78000-00111-0302 Barcode Scanner
Datalogic 78000-00111-0302 Barcode Scanner
Datalogic 78000-00111-0302 Barcode Scanner
Datalogic 78000-00111-0302 Barcode Scanner
Datalogic 78000-00111-0302 Barcode Scanner Datalogic 78000-00111-0302 Barcode Scanner Datalogic 78000-00111-0302 Barcode Scanner Datalogic 78000-00111-0302 Barcode Scanner
Full specifications (PDF)
Datalogic Magellan 2200VS Barcode Scanner Model Overview
The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic 78000-00111-0302 Barcode Scanner Overview

The Magellan 2200VS Bar Code Reader features aggressive vertical scan volume, RSS decoding capability, flash memory for easy software upgrades, powered auxiliary RS-232 port for easy integration of a handheld scanner and host diagnostic reporting.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • UPC Supplementals
  • Bookland
  • Coupon Code
  • UPC P5 Add-ons
  • UPC P2 Add-ons
  • C128
  • RSS-14
  • RSS-Stacked
  • RSS-Expanded
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
Light Source:
Laser
Depth of Field:
  • 8"
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
  • Magellan 2200VS Bar Code Reader
  • Standard Counter Mount
  • IBM 46XX Port 9 Cable
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge

    • Certifications & Standards:

    Electrical:

    • EN60950 (TÜV Europe)
    • PSE-Mark (Japan)
    • UL 60950 (USA)
    • CSA 60950 (Canada)

    Emissions:

    • CISPR22-B (World)
    • FCC part 15 Class B (USA)
    • VCCI-B (Japan)
    • EN 55022-B (Europe)
    • NOM (Mexico)

    Laser Safety:

    • CDRH Class IIa (USA/Canada)
    • EN 60825-1 Class 1 (Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1 (Europe)
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic 78000-00111-0302 Barcode Scanner is also known as PSC-78000001110302 or 78000001110302.
