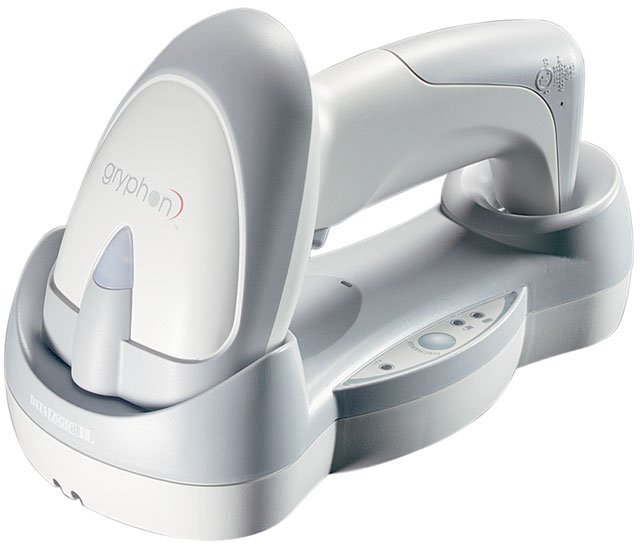

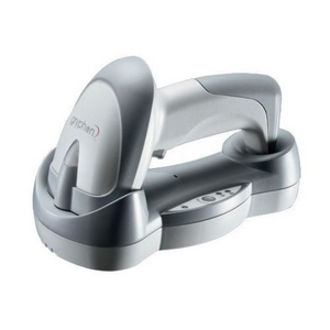

Datalogic 901671042 Barcode Scanner

The Datalogic 901671042 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Gryphon  -  M100 RS-232 kit. Includes RS-232 cable, cordless base station, power supply & manual.
Connectivity
Cordless
Scanner Capability
1D
  • Scan barcodes with a staggering speed of 270 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
Read More
Add to Quote
Datalogic Gryphon Barcode Scanner Model Overview
The Datalogic Gryphon Cordless reader series has been developed to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Datalogic Gryphon Cordless makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The Datalogic Gryphon Cordless features a base station and a cordless handheld scanner, allowing the scanner to go wherever the barcodes are.
Datalogic 901671042 Barcode Scanner Overview

The Gryphon M100 versatile and high performance Gryphon family of products added mobility operation through the STAR Narrow Band wireless network. Same as the corded Gryphon products, it has Linear and GS1 Databar bar code decoding capabilities, plug and play with enhanced multi-standard architecture, ergonomic and user-friendly for intuitive operation. Its modular design is open to upgrades.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Code 39 (plus Code 32 Cip 39)
  • EAN/UPC
  • ISBN/ISSN
  • EAN-128
  • Code 128
  • ISBT 128
  • Code 93
  • Code 11
  • Codabar
  • Telepen
  • Plessey
  • Code MSI
  • Code Delta IBM
  • GS1 Databar
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 0.076mm@3mil
  • 0.13mm@5mil
  • 0.33mm@13mil
  • 0.5mm@20mil
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
28 V DC
Power Source:
Battery
Power Supply Included:
Yes
Battery Information
Number of Batteries Supported:
2
Battery Size Supported:
AA
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
9.88 oz
Miscellaneous
Package Contents:
  • Base Power Supply
  • Cable RS-232
  • Manual
Additional Information:

Interfaces Supported:

  • USB
  • RS-232
  • Wedge

USB Cable separate

Item Numbers
UNSPSC: 43211701
