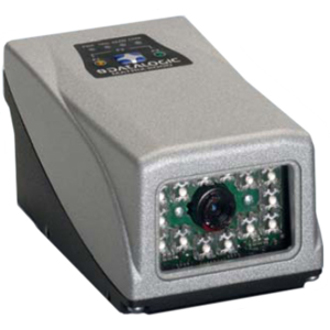

Datalogic 937201195 Fixed Barcode Scanner

The Datalogic 937201195 Fixed Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Matrix 2000 - Matrix-2031 Sd. Priced per unit. 4 week lead time.
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • LED aimer is a perfect choice for patient-facing applications
Read More

Need a different version? See all Datalogic Matrix 2000 Fixed Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner Datalogic 937201195 Fixed Barcode Scanner Datalogic 937201195 Fixed Barcode Scanner
Full specifications (PDF)

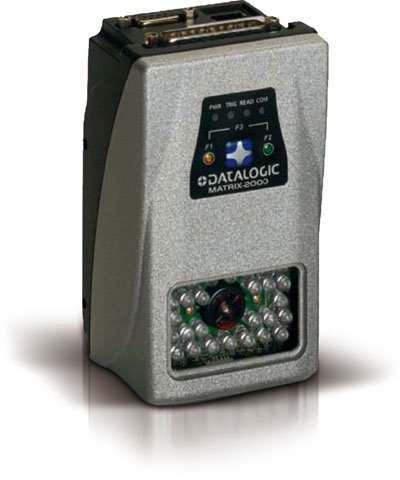

Datalogic Matrix 2000 Fixed Barcode Scanner Model Overview
The Datalogic Matrix 2000 is a fully integrated barcode 2D reader that combines a LED lighting system, image capturing, decoding and communication interfaces in a single compact product. Rugged construction and ESD Safe versions make this reader suitable for industrial applications in all the main industries. The Matrix 2000 offers 2 main versions including a VGA (640x480 pixels) CCD sensor for standard applications and SXGA (1280x1024 pixels) CMOS sensor for wider FOV.
Datalogic 937201195 Fixed Barcode Scanner Overview

Datalogic's Matrix-2031 Standard Density Bar Code Reader is a fully integrated area reader that combines a LED lighting system, image capturing, decoding and communication interfaces in a single compact product. Rugged construction and ESD Safe versions make this reader suitable for any industrial application in all the main industries. Powerful proprietary decoding libraries provide the Matrix with excellent performance on printed or DPM (Direct Part Marked) symbols even when damaged or of low quality. The Autolearning function automatically sets photometry and decoding parameters making installation faster and easier, even for non-expert users. Matrix-2000 can verify code quality by monitoring how well the printing/marking system is performing.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 128
  • Code 39
  • EAN/UPC
  • PDF 417
  • Micro PDF-417
  • GS1 Databar
  • DataMatrix
  • QR Code
  • MaxiCode
  • Aztec
  • Microglyph
  • Royal Mail Code (RM4SCC)
  • Japanese Post
  • PLANET
  • Postnet
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 3.94" - 4.53"@6mil - 1D & Stacked
  • 3.94" - 4.53"@10mil - 2D
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
4.8"
Width:
2.9"
Depth:
2.2"
Weight (Approximate):
13.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS232
  • RS485 Tailgate

USB Cable separate

Item Numbers
UNSPSC: 43211701
