Datalogic MG118041-000-412B Barcode Scanner

The Datalogic MG118041-000-412B Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 1100i - Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Serial
Form Factor
Presentation
Scanner Capability
2D
Scanner Type
Imager
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic Magellan 1100i Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner
Datalogic MG118041-000-412B Barcode Scanner

Full specifications (PDF)

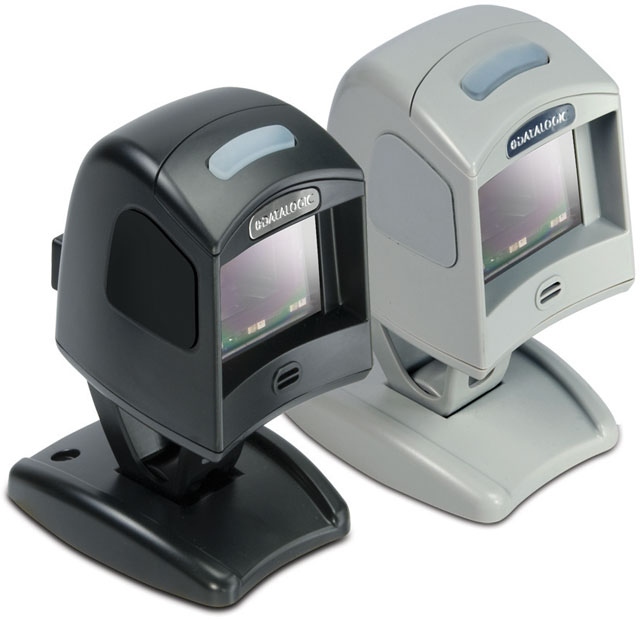

Datalogic Magellan 1100i Barcode Scanner Model Overview
The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses Datalogic's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D barcodes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.
Datalogic MG118041-000-412B Barcode Scanner Overview

The Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly future-proof solution.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • MaxiCode
  • QR Code
  • Stacked Codes
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil - 1D/Linear Codes
  • 0.25" - 2.25"@7.5mil - 1D/Linear Codes
  • 0" - 5"@10mil - 1D/Linear Codes
  • 0" - 7"@13mil - 1D/Linear Codes
  • 0" - 7"@20mil - 1D/Linear Codes
  • 1.5" - 3"@6.6mil - PDF
  • 0" - 1.8"@10mil - Data Matrix
  • 1.2" - 6"@10mil - PDF
  • 1" - 6"@15mil - PDF
  • 0" - 5"@24mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
3.7"
Width:
2.8"
Depth:
3.3"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 4054318749249
EAN: 4054318749249
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic MG118041-000-412B Barcode Scanner is also known as DTL-MG118041000412B or MG118041000412B.
