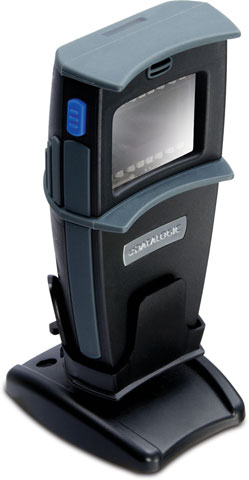

Datalogic MG1400-10000R Barcode Scanner

The Datalogic MG1400-10000R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic Magellan 1400i - 5V, RS232 and ROHS, Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 4004-0826).

Scanner Capability

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Datalogic Magellan 1400i Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Datalogic Magellan 1400i Barcode Scanner Model Overview

The Magellan 1400i from Datalogic is an omni-directional imaging scanner, which provides an aggressive imaging performance of 1100 digital scan lines per second. Its intuitive operation simplifies checker training and increases checkout speeds for improved customer service. The scanner is capable of auto-discriminating PDF and 1D barcodes, thus giving the user freedom to scan both normal items and ID cards totally hands-free. Magellan 1400i's ergonomic and practical design allows hands-free scanning options for small items and handheld scanning for bulkier items.

Datalogic MG1400-10000R Barcode Scanner Overview

The Datalogic's Magellan 1400i Omni-Directional Imaging Bar Code Reader is the world's first imaging-based presentation scanner with PDF decoding that represents the newest breakthrough in data capture technology. Its solid-state construction with no moving parts increases reliability, while the small footprint frees up valuable counter selling space. It also has a targeted scanning mode for reading close-proximity bar codes. The Magellan 1400i omni-directional imaging scanner is designed for convenience stores, drug stores, specialty stores and other medium volume checkout environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

Retail Codes:

EAN 8 & 13 with full expansion 8 to 13
EAN/JAN Two Label
JAN 8 & 13 with full expansion 8 to 13
UCC/EAN 128
UPC Versions A&E
UPC Supplementals (Bookland & Coupon Code)
UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
Dual Bar Codes for Japan (2 label read)
Italian Pharmacode
PDF-417
Micro-PDF
RSS
RSS-14
RSS Expanded
RSS Stacked
RSS Composites
RSS Limited
Supports GTIN

Industrial Codes:

Code 39 with Full ASCII
Code 128 (Up to 80 characters, including Code 39 conversions)
Code 93
Interleaved 2 of 5
Standard 2 of 5
Codabar
MSI/Plessey

Maximum Scan Resolution:

5 mil

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Form Factor:

Desktop

Product Color:

Black

Height:

7.1"

Width:

3.2"

Depth:

3.8"

Weight (Approximate):

12.18 oz

Miscellaneous

Additional Information:

Supported Interface:

RS-232

Operating Voltage:

5.0 Volts

USB Cable separate

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701
