Datalogic QM2430-BK-433 Barcode Scanner

The Datalogic QM2430-BK-433 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QuickScan I QM2400 - Datalogic QuickScan I QM2430 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - , Radio Frequency - Black
Form Factor
Handheld
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
Read More

Need a different version? See all Datalogic QuickScan I QM2400 Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Datalogic QM2430-BK-433 Barcode Scanner
Full specifications (PDF)
Datalogic QuickScan I QM2400 Barcode Scanner Model Overview

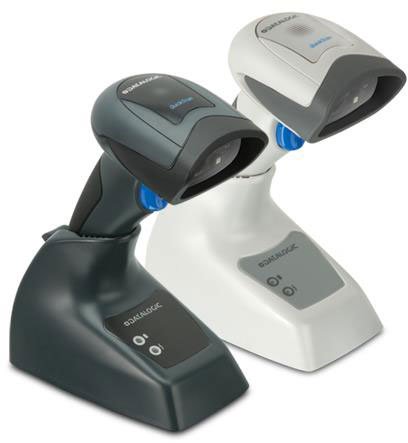

The QuickScan QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.
Datalogic QM2430-BK-433 Barcode Scanner Overview

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Featuring Datalogic's STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles.

The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post;
  • British Post;
  • Canadian Post;
  • China Post;
  • IMB;
  • Japanese Post;
  • KIX Post;
  • Korea Post;
  • Planet Code;
  • Postnet;
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.5cm - 15cm@5mil - Code 39
  • 0.5cm - 35cm@13mil - EAN/UPCA
  • 2cm - [email protected] - PDF417
  • 2cm - 16cm@10mil - Data Matrix
Scan Pattern:
Omni-directional
Network & Communication
Radio Frequency:
Yes
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
30000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5711783171058
EAN: 5711783171058
UNSPSC: 43211701
