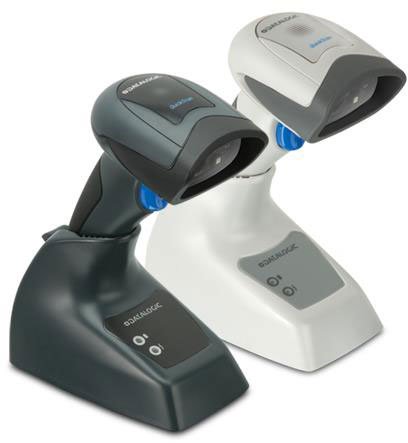

Datalogic QM2430-BK-433K1 Barcode Scanner

The Datalogic QM2430-BK-433K1 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic QuickScan I QM2400 - Datalogic QuickScan I QM2430 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - , Radio Frequency - Black

Form Factor

Handheld

Scanner Capability

Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Streamline your business processes with an imager that point-shoots with high-performance scanning
With Bluetooth technology, you can scan barcodes and then transmit data from the base

Need a different version? See all Datalogic QuickScan I QM2400 Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

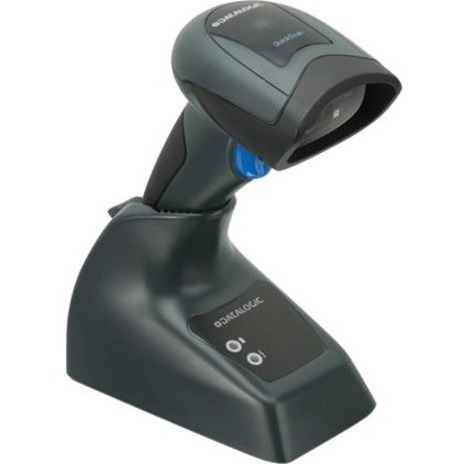

Datalogic QM2430-BK-433K1 Barcode Scanner

Overview

Full specifications (PDF)

Datalogic QuickScan I QM2400 Barcode Scanner Model Overview

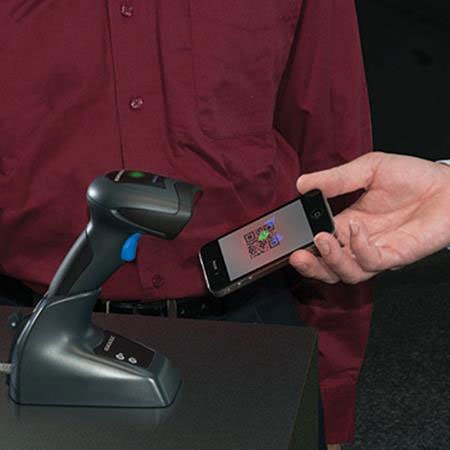

The QuickScan QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Datalogic QM2430-BK-433K1 Barcode Scanner Overview

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Featuring Datalogic's STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles.

The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

2D Codes:

Aztec Code
Aztec Mesas
Data Matrix
MaxiCode
QR Code
Micro QR Code
China Han Xin Code

Postal Codes:

Australian Post;
British Post;
Canadian Post;
China Post;
IMB;
Japanese Post;
KIX Post;
Korea Post;
Planet Code;
Postnet;
Royal Mail Code (RM4SCC)

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Image Sensor Type:

Imager

Maximum Scan Resolution:

4 mil

Depth of Field:

0.5cm - 15cm@5mil - Code 39
0.5cm - 35cm@13mil - EAN/UPCA
2cm - [email protected] - PDF417
2cm - 16cm@10mil - Data Matrix

Scan Pattern:

Omni-directional

Scanning Distance:

13.78"

Cable Type Included:

USB

Reading Angle (Skew):

60°

Reading Angle (Pitch):

65°

Reading Angle (Roll):

360°

Motion Tolerance:

25 in/s

Maximum Ambient Light:

100000 lux

Drop Specification:

Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface.

Minimum Print Contrast:

25%

Maximum Element Resolution (Code 39):

5 mil

Maximum Element Resolution (DataMatrix):

10 mil

Maximum Element Resolution (PDF417):

6.6 mil

Network & Communication

Bluetooth:

Yes

Radio Frequency:

Yes

Interfaces/Ports

Host Interface:

USB

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Maximum Number of Scans per Full Charge:

30000

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black

Height:

6.4"

Width:

1.6"

Depth:

3.6"

Weight (Approximate):

7.05 oz

Miscellaneous

Additional Information:

USB Cable separate

Ingress Protection (IP) Rating:

IP42

Application/Usage:

Retail
Industrial

Item Numbers

GTIN: 4250389267143, 5712505218907

EAN: 4250389267143, 5712505218907

UNSPSC: 43211701
