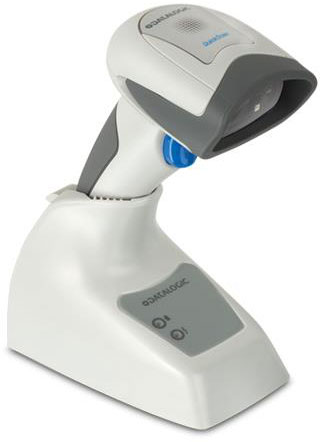

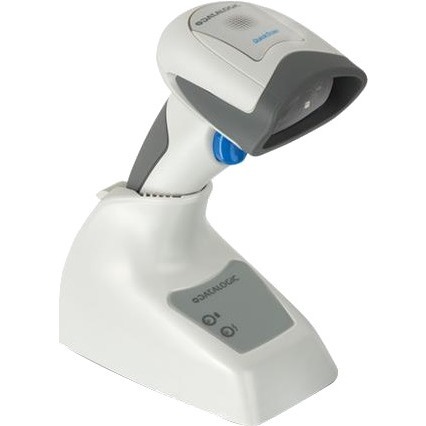

Datalogic QM2430-WH-433 Barcode Scanner

The Datalogic QM2430-WH-433 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic QuickScan QM2430 - Cordless Barcode Scanner, Datalogic QuickScan QM2430, 2D Area Imager, General Purpose, Handheld, 433 MHz, Multi-Interface Connection, SCANNER ONLY, White. Kit inc. Imager and Base Station/Charger. Cables and Power Supply Must Be Ordered Separately.

Connectivity

Cordless

Form Factor

Handheld

Interface Options

Bluetooth

Scanner Capability

Scanner Type

Imager

Creates a high ROI because of diminishment in workforce and descend inventory errors
Allows productive and precise reading of 1D barcodes
Streamline your business processes with an imager that point-shoots with high-performance scanning

Need a different version? See all Datalogic QuickScan I QM2400 Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Datalogic QuickScan I QM2400 Barcode Scanner Model Overview

The QuickScan QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Datalogic QM2430-WH-433 Barcode Scanner Overview

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Featuring Datalogic's STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles.

The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

2D Codes:

Aztec Code
Aztec Mesas
Data Matrix
MaxiCode
QR Code
Micro QR Code
China Han Xin Code

Postal Codes:

Australian Post;
British Post;
Canadian Post;
China Post;
IMB;
Japanese Post;
KIX Post;
Korea Post;
Planet Code;
Postnet;
Royal Mail Code (RM4SCC)

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Image Sensor Type:

Imager

Maximum Scan Resolution:

4 mil

Depth of Field:

0.5cm - 15cm@5mil - Code 39
0.5cm - 35cm@13mil - EAN/UPCA
2cm - [email protected] - PDF417
2cm - 16cm@10mil - Data Matrix

Scan Pattern:

Omni-directional

Network & Communication

Radio Frequency:

Yes

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Maximum Number of Scans per Full Charge:

30000

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Handheld

Product Color:

White

Height:

6.4"

Width:

1.6"

Depth:

3.6"

Weight (Approximate):

7.05 oz

Miscellaneous

Additional Information:

USB Cable separate

Country of Origin:

Vietnam

Item Numbers

GTIN: 4054843760955

EAN: 4054843760955

UNSPSC: 43211701
