Dell N2224PX-ONF Network Switch

The Dell N2224PX-ONF Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Dell  -  Network Switches, Dell, EMC PowerSwitch N2200-ON Series N2224PX-ONF, Switch, L3, Managed, 12 x 10/100/1000/2.5G (PoE+) + 12 x 1/2.5G (PoE++) + 4 x 25 Gigabit SFP28, Front to back airflow, Rack-Mountable, PoE++
  • Features 24 networking ports to establish large network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
  • Supports layer 3 switching for enhanced performance and usability
  • Managed switch provides a reliable foundation for your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Rack mounting enables you to organize wires & secure cables for professional installation
Read More

Need a different version? See all Dell Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

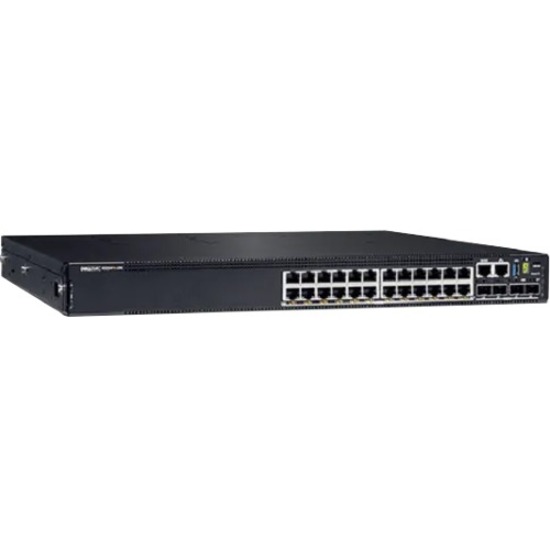

Dell N2224PX-ONF Network Switch
Dell N2224PX-ONF Network Switch
Dell N2224PX-ONF Network Switch Dell N2224PX-ONF Network Switch
Larger View
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 24 x 2.5 Gigabit Ethernet PoE
  • 4 x 25 Gigabit Ethernet Expansion Slot
  • 2 x 40 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • 2.5 Gigabit Ethernet
  • 25 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology:
  • 2.5GBase-T
  • 25GBase-X
  • 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP28
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
60 W
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Number of Power Supplies Installed:
1
Power Consumption:
1318 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.1"
Depth:
15.8"
Weight (Approximate):
14.70 lb
Miscellaneous
Package Contents:
  • PowerSwitch N2224PX-ON Ethernet Switch
  • 1 x 1050W PSU
  • MicroUSB to USB Connector Cable
  • RJ-45 to Female DB-9 Connector Cable
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • EU WEEE
  • REACH
  • Battery Directive
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0884116365518
UPC: 884116365518
EAN: 0884116365518
UNSPSC: 43222612
