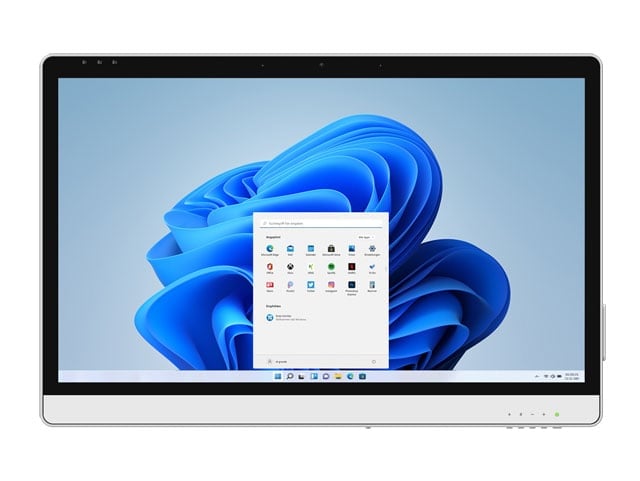

DT Research 582T-515A All-in-One PC

The DT Research 582TM Medical-Cart Computer is a high-performance, all-in-one computing solution tailored for healthcare settings, designed to optimize point-of-care operations. It provides seamless data management and feature an integrated, hot-swappable battery system to support uninterrupted usage.

Key Features

1. Display:

   • 582TM: 21.5" touchscreen
   • 584TM: 23.8" touchscreen
   • Both support 1920x1080 resolution, offering sharp visuals for easy viewing in medical environments.

2. Processor:

   • Equipped with Intel® Core™ Ultra processors (Core 5 and Core 7 models), with speeds ranging from 1.2 GHz to 1.7 GHz and boosting up to 4.9 GHz for powerful, responsive performance.

3. Memory and Storage:

   • RAM: 8GB to 64GB, allowing for extensive multitasking.
   • Storage: Ranges from 256GB to 4TB flash memory, supporting secure and ample data storage.

4. Operating System:

   • Runs on Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu, offering flexibility for various healthcare software.

5. Network and Connectivity:

   • Wi-Fi: Tri-band (2.4/5/6 GHz) Wi-Fi 802.11ax.
   • Bluetooth: Version 5.3 for modern connectivity requirements.
   • I/O Ports: Includes multiple USB ports (USB 3.2 Gen 2 and USB 2.0), HDMI video-out, headphone jack, Ethernet, and optional DC-out.

6. Battery System:

   • Optional hot-swappable batteries (up to 3, 8250mAh each) allow continuous operation without downtime, ideal for critical healthcare environments.

Design and Durability

• Build: Fanless, space-saving design with antimicrobial enclosure, promoting hygiene in medical settings.
• Mounting: VESA compatibility for flexible installation.
• Water Resistance: IP65-sealed front bezel and IPX1 back cover to protect against spills and dust.
• Certifications: ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2 for medical-grade safety, CE, RCM, and more, ensuring compliance in healthcare environments.

Optional Features

• Camera Options: 5MP front or IR camera.
• Readers: NFC/RFID reader (supports 125 KHz and 13.56 MHz) and Smart Card/CAC reader for secure data handling.
• DC-Out Options: 12V, 19V, and 24V outputs to power external medical peripherals.

Environmental and Physical Specs

• Operating Temperature: 0°C to 40°C.
• Humidity: 0% to 90% non-condensing.
• Weight and Dimensions:
  • 582TM: 14.64 lbs without battery, 17.81 lbs with batteries.
  • 584TM: 16.4 lbs without battery, 19.58 lbs with batteries.

Accessories

Available accessories include a battery gang charger, medical-grade adapters, and desktop stands for ease of use in various healthcare settings.
