Eaton 68180 Products

The Eaton 68180 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Eaton  -  Eaton EX 700 Tower 230V - 700VA/630W - 9 Minute Full Load - 6 x IEC 320 EN 60320 C13
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Up to 9 minute runtime on full load to preserve critical data from power shortage interruptions

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

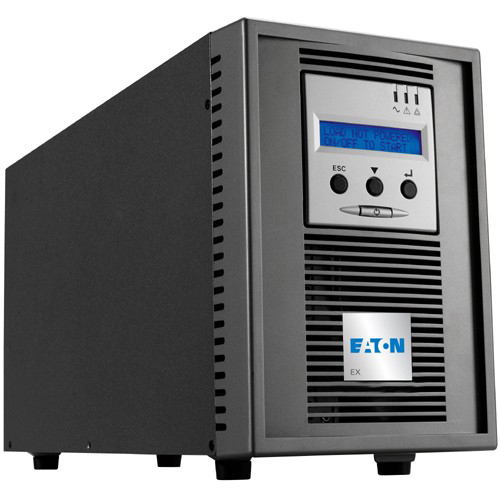

Eaton 68180 Products
Eaton 68180 Products
Larger View
Technical Information
Receptacles:
6 x IEC 60320 C13
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Power Description
Load Capacity:
700 VA/630 W
Input Voltage:
  • 110 V AC
  • 220 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
9 Minute
Backup/Run Time (Half Load):
31 Minute
Physical Characteristics
Height:
9.5"
Width:
6"
Depth:
17.3"
Form Factor:
Mini-tower
Weight (Approximate):
27.56 lb
Miscellaneous
Package Contents:
  • EX 700 Tower 230V
  • Power Management Software Suite CD
  • USB Cable
  • Serial Cable DB9/DB9
  • Safety Guide
  • Quick Start
  • 4-Language User Manual
Additional Information:
  • Input Connector: 1 x IEC C14 (10A) socket
  • Output Connector: 6 x IEC C13 (10A) sockets
  • Double Conversion UPS technology for 100% compatibility with any application, environment or genset and high output to protect equipment with PFC power supplies
  • Wide input voltage window to conserve battery time for blackouts only
  • Automatic by-pass for high availability
  • Extended runtime capabilities with multiple, hot-swappable battery modules (optional)
  • Remote reboot of locked equipment, sequential start-up through individually switchable outlets
Certifications & Standards:
  • CE
  • TüV GS
  • CB report
  • UL 1778
  • cUL
  • CSA 22.2
Software Included:
Power Management Software Suite
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0355334068180, 0743172020604, 3553340681806
UPC: 355334068180, 743172020604
EAN: 0355334068180, 0743172020604, 3553340681806
UNSPSC: 39121011
