Eaton 9PX10KSP Products

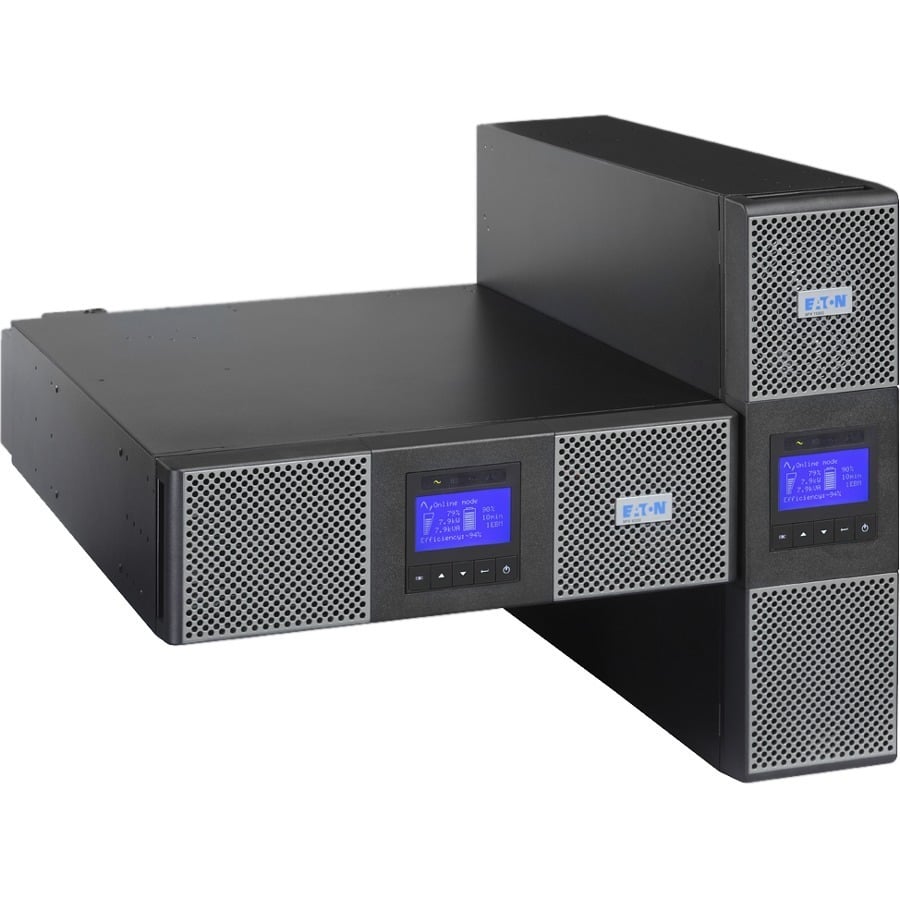

Eaton - Eaton 9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS - 6U Rack/Tower - 127 V AC, 240 V AC Input - 1 x NEMA L6-30R, 2 x NEMA L14-30R, Hardwired

Keeps equipment running during outages to allow time for file saves and safe shutdown
Included NETWORK-M2 Gigabit network card enables full remote access and control
Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
Interactive LCD interface keeps you updated on critical load information in real time
Optional extended battery modules allow extended runtime to keep equipment powered

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount

Add to Quote

$11,916.51

In Stock

Detailed Specs

Technical Information

Plug/Connector Type:

Hardwired

Receptacle Type:

NEMA L6-30R
NEMA L14-30R
Hardwired

Receptacle Detail:

1 x NEMA L6-30R
2 x NEMA L14-30R

Protection Type:

Surge

Emergency Power OFF:

Yes

Power Description

Load Capacity:

10000 VA/9000 W

Input Voltage:

127 V AC
240 V AC

Output Voltage:

127 V AC
240 V AC

Circuit Breaker:

Yes

Management

Battery Management:

ABM technology

Controls/Indicators

Status Indicators:

4 x LEDs

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

USB:

Yes

Battery Information

Battery Characteristics:

Maintenance-free, Sealed

Battery Chemistry:

Lead Acid

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Physical Characteristics

Product Color:

Black
Silver

Height:

10.3"

Width:

17.3"

Depth:

27.6"

Rack Height:

Form Factor:

Rack/Tower

Weight (Approximate):

225 lb

Miscellaneous

Package Contents:

9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS
4-post Rail Kit
Tower Pedastals
RS-232 Cable
USB Cable
Intelligent Power Software Suite CD

Certifications & Standards:

IEEE ANSI C62.41 Cat B2
CE
cULus
NOM
IEC 62040-2:2006 Cat C2
CISPR22 Class A
FCC part 15 Class A

Software Included:

Intelligent Power Software Suite

Energy Star:

Yes

Environmentally Friendly:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0743172040350, 0743172046161

UPC: 743172040350, 743172046161

EAN: 0743172040350, 0743172046161

UNSPSC: 39121011
