Eaton EMI103-10 Products

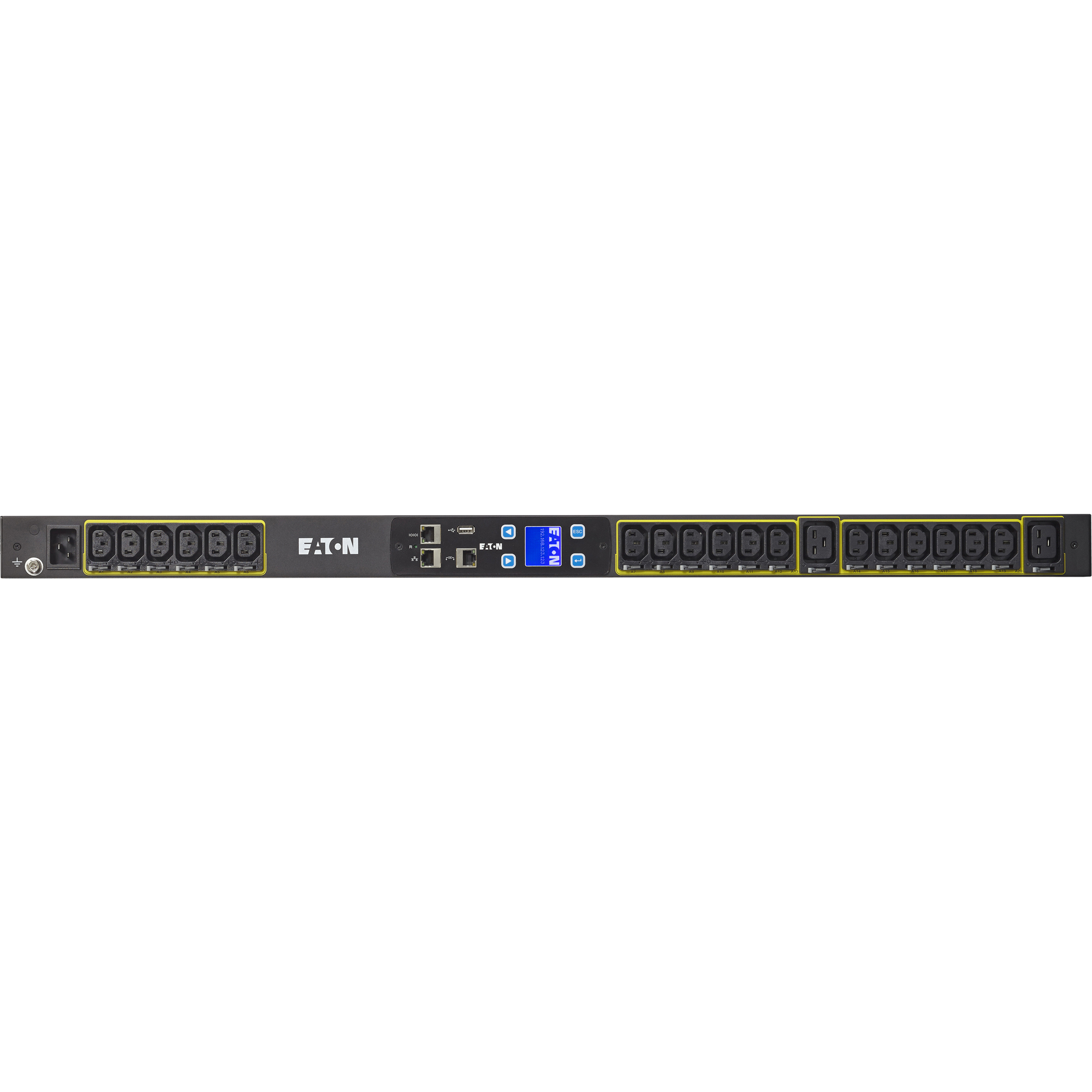

Eaton - Eaton ePDU G3 Metered Input 21U-A; 3.84 KW; IN: L6-20P/C20 16A 1P OUT: 18XC13:2XC19 - 18 x IEC 60320 C13, 2 x IEC 60320 C19 - 120 V AC, 230 V AC - 3840 W - Network (RJ-45) - 21U - Rack-mountable

New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
High density units support up to 25 1U/2U servers or three blade server chassis
Easy read digital ammeter reduces local monitoring time
Clearly labeled circuits simplify load balancing
Reading available via Ethernet connection over a network
UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount

Add to Quote

$1,009.02

In Stock

Detailed Specs

Technical Information

Plug/Connector Type:

IEC 60320 C20

Receptacle Type:

IEC 60320 C13
IEC 60320 C19

Receptacle Detail:

18 x IEC 60320 C13
2 x IEC 60320 C19

Power Description

Input Voltage:

120 V AC
230 V AC

Input Voltage Range:

120 V AC - 208 V AC

Power Rating (Watt):

3840 W

Input Current:

16 A

Circuit Breaker:

Yes

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

USB:

Yes

Physical Characteristics

Mount Type:

Rack-mountable

Rack Height:

21U

Cord Length:

10 ft

Height:

35.5"

Width:

2.1"

Depth:

2.1"

Weight (Approximate):

9.30 lb

Miscellaneous

Certifications & Standards:

UL ITE 60950-1
FCC
CE

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0743172050441

UPC: 743172050441

EAN: 0743172050441

UNSPSC: 39121017
