Eaton EMI104-10 Products

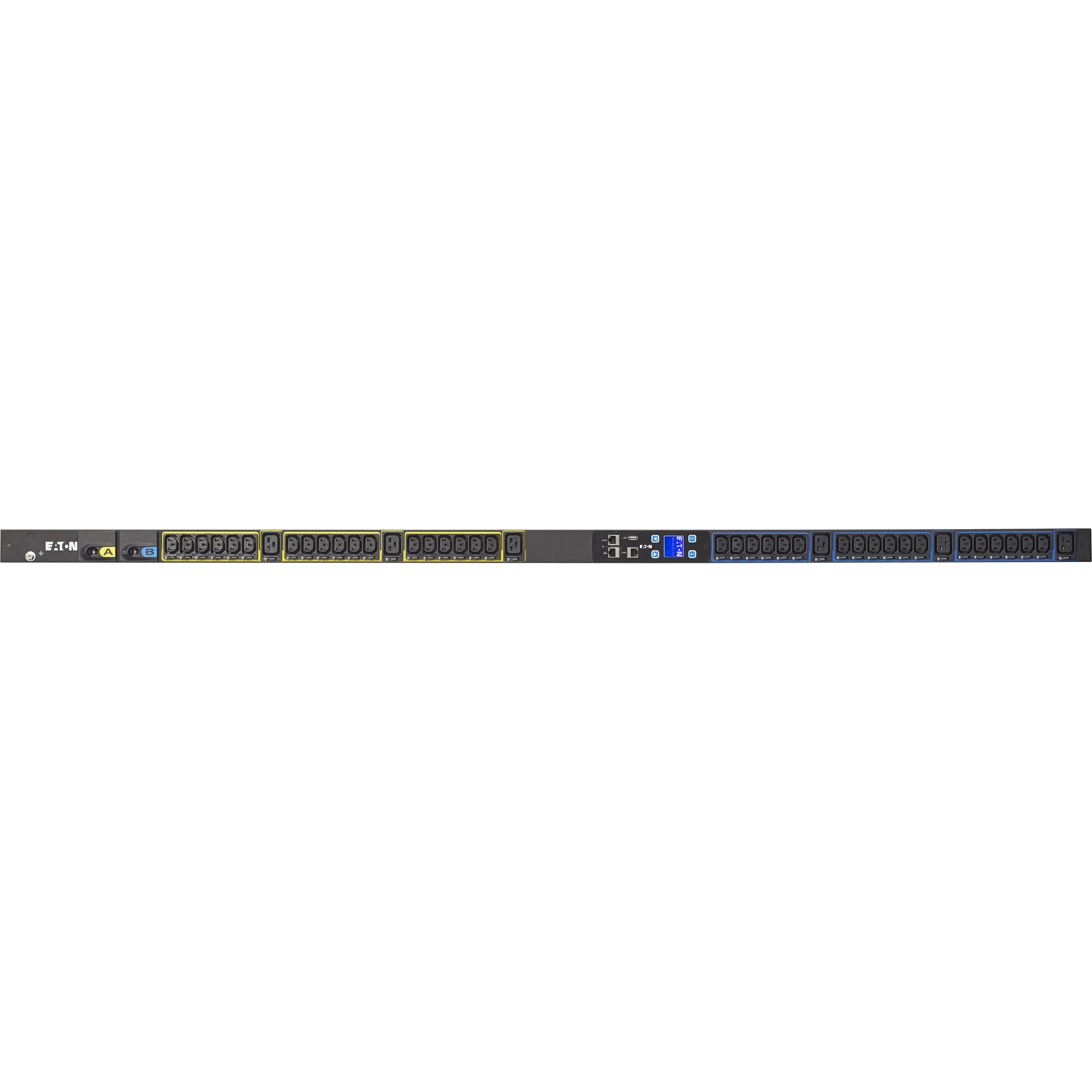

Eaton - Eaton ePDU G3 Metered Input 38U-A; 5.76 KW; IN: L6-30P 24A 1P OUT: 36XC13:6XC19 - 36 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 38U - Rack-mountable

New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
High density units support up to 25 1U/2U servers or three blade server chassis
Easy read digital ammeter reduces local monitoring time
Clearly labeled circuits simplify load balancing
Reading available via Ethernet connection over a network
UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount

Add to Quote

$1,388.29

In Stock

Detailed Specs

Technical Information

Plug/Connector Type:

NEMA L6-30P

Receptacle Type:

IEC 60320 C13
IEC 60320 C19

Receptacle Detail:

36 x IEC 60320 C13
6 x IEC 60320 C19

Power Description

Input Voltage:

230 V AC

Power Rating (Watt):

5760 W

Input Current:

24 A

Circuit Breaker:

Yes

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

USB:

Yes

Physical Characteristics

Mount Type:

Rack-mountable

Rack Height:

38U

Cord Length:

10 ft

Height:

66.5"

Width:

2.1"

Depth:

2.1"

Weight (Approximate):

16 lb

Miscellaneous

Certifications & Standards:

UL ITE 60950-1
FCC

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0743172048189, 0743172050458, 0818263435428, 0818275353116

UPC: 743172048189, 743172050458, 818263435428, 818275353116

EAN: 0743172048189, 0743172050458, 0818263435428, 0818275353116

UNSPSC: 39121017
