Eaton EMI200-10 Products

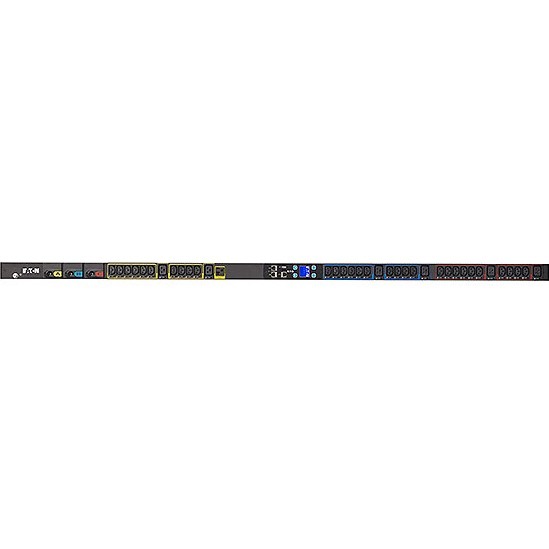

Eaton  -  Eaton ePDU Metered EMI200-10 34-Outlet PDU - 8 x NEMA 5-20R, 20 x IEC 60320 C13, 6 x IEC 60320 C19 - 120 V AC, 230 V AC - 5760 W - Network (RJ-45) - 38U - Vertical - Rack-mountable
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Read More

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,741.49
Eaton EMI200-10 Products
Eaton EMI200-10 Products
Technical Information
Plug/Connector Type:
NEMA L14-30P
Plug/Connector Detail:
1 x NEMA L14-30P
Receptacle Type:
  • NEMA 5-20R
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail:
  • 8 x NEMA 5-20R
  • 20 x IEC 60320 C13
  • 6 x IEC 60320 C19
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
120 V AC - 230 V AC
Output Voltage:
  • 120 V AC
  • 230 V AC
Power Rating (Watt):
5760 W
Input Current:
24 A
Circuit Breaker:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Physical Characteristics
Product Color:
Black
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Rack Height:
38U
Cord Length:
10 ft
Height:
66.5"
Width:
2.1"
Depth:
2.1"
Miscellaneous
Certifications & Standards:
UL Listed
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0008133983634, 0783555123324, 0786685913407
UPC: 008133983634, 783555123324, 786685913407
EAN: 0008133983634, 0783555123324, 0786685913407
UNSPSC: 39121017
