Eaton RC000AA0A0A0A0A Products

The Eaton RC000AA0A0A0A0A Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

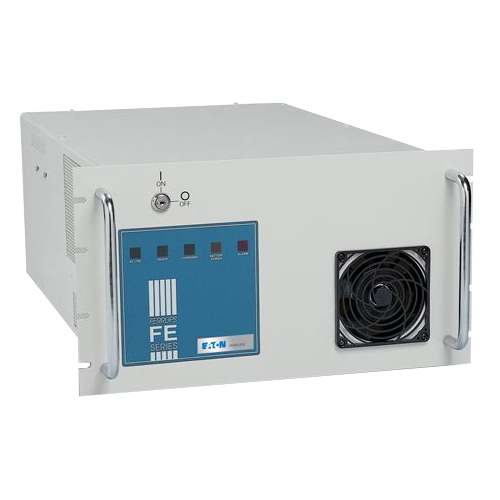

Eaton  -  Eaton FES 1.4kVA UPS Hardwired (1.4 kVA/1 kW) - 1400VA/1000W - 14 Minute Full Load - Hardwired
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 14 minute at full load
Read More

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Eaton RC000AA0A0A0A0A Products
Eaton RC000AA0A0A0A0A Products
Technical Information
Plug/Connector Type:
Hardwired
Receptacles:
Hardwired
Emergency Power OFF:
Yes
Power Description
Load Capacity:
1400 VA/1000 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Waveform Type:
Sine Wave
Management
Alarm:
  • Low Battery
  • Near Low Battery
  • High Battery
  • Low Runtime
  • Low AC Output
  • High AC Output
  • Output Overload
  • High Ambient Temperature
  • High Heatsink Temperature
  • User Test Alarm
  • High Transformer Temperature
  • Check Charger
  • Check Battery
  • Check Inverter
  • Check Memory
  • Emergency Power Off
  • High PFM Temperature
  • Probe Missing
  • High AC Input
  • Call Service
  • Check Fan
Controls/Indicators
Status Indicators:
  • AC Line
  • Ready
  • Charging
  • Battery Power
  • Alarm
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
14 Minute
Backup/Run Time (Half Load):
36 Minute
Typical Battery Recharge Time:
4 Month
Environmental Conditions
Maximum Operating Temperature:
140°F (60°C)
Sound Emission:
50 dB(A)
Miscellaneous
Package Contents:
  • FERRUPS RC000AA0A0A0A0A UPS
  • Power Management Software
  • Communication Cable
Additional Information:
  • Delivers bulletproof protection with Ferroresonant technology
  • Converts power from almost any AC source into computer-grade power
  • Prolongs backup time with external battery cabinets
  • Conditions incoming power without depleting the battery to preserve battery power for complete power outages
  • Adapts to virtually any application with customizable receptacles, input plugs, voltage matching transformers, and bypass switches
  • Ensures data integrity with free Software Suite bundle including LanSafe, PowerVision®, and Foreseer®
  • Incorporates connectivity products to fit various environments and applications
Certifications & Standards:
  • UL
  • CSA (cUL)
  • FCC Class A
  • ANSI/EEE C62.41 (1980)
  • ANSI/EEE C62.45 (1987)
  • IEC 801-2
  • IEC 801-3
  • IEC 801-4
  • IEC 801-5
  • UL 1449
  • UL 1778
Software Included:
Eaton Software Suite
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0783555117361
UPC: 783555117361
EAN: 0783555117361
UNSPSC: 39121011
