Eaton T800R-01600 Products

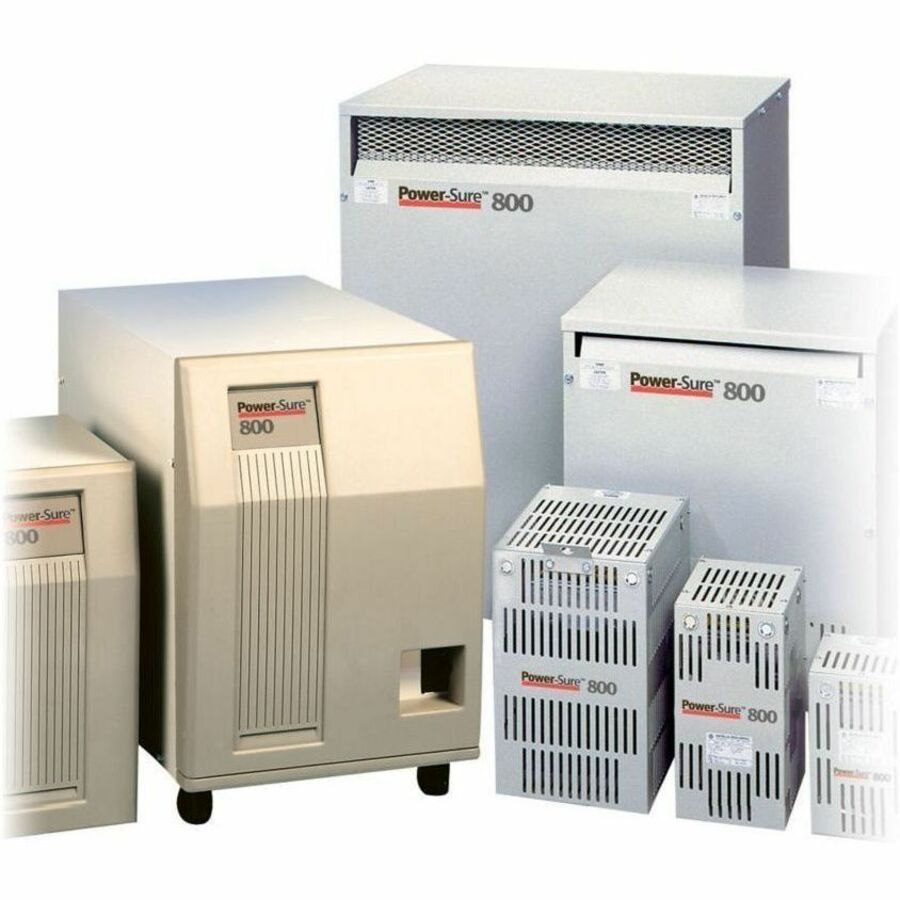

Eaton  -  Eaton Power-Sure 800 Line Conditioner - 120V AC 1600VA 1200W

Need a different version? See all Eaton Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$2,190.03
Eaton T800R-01600 Products
Eaton T800R-01600 Products
Larger View
Technical Information
Protection Type:
  • Lightning
  • AC Surge
  • Harmonics
  • AC Noise
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-20R
Receptacles Detail:
4 x NEMA 5-20R
Power Description
Load Capacity (VA):
1600 W
Load Capacity (Watt):
1200 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Maximum Frequency:
60 Hz
Physical Characteristics
Height:
17.5"
Width:
8.5"
Depth:
12.8"
Weight (Approximate):
62 lb
Miscellaneous
Additional Information:
  • Line Regulation: +/- 2% Vout for +10% to -20% Vin at 100% Load
  • Load Regulation: +/-3% for 0% to 100% load
  • Immunity to Distortion: @40% THD Vin, 5% Max THD Vout
  • Ride-through Capability: 1 cycle
  • Voltage Recovery: 2 cycles to 95%, 3 cycles to 100%
  • K-Factor: K-30 Rated
  • Power Factor Correction: Input of 0.95 typical
  • Harmonic Attenuation: -23dB for load reflected harmonics
  • Galvanic Isolation: NEC 250-5d, 0.001 pf
  • Surge Protection: UL 1449 Rating 330v; ANSI/IEEE C62.41-Cat B3
  • Common Mode Noise Attenuation: 140 dB
  • Transverse Mode Noise Attenuation: 120 dB
  • Reliability: 200,000 hours (MTBF)
  • Audible Noise: 1 meter A scale, 52dB to 56dB
  • Efficiency: Approx. 92% at full load
Country of Origin:
United States
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0743172021410, 4701612106932
UPC: 743172021410, 743172022578
EAN: 0743172021410, 4701612106932
UNSPSC: 39121020
