Elo E227895 POS Touch Terminal

Elo - Computer Component, ELO, Computer Module for IDS 3 Series, Intel Core 7th Gen I5, HD Graphics 630, 8 GB RAM/256 GB SSD, No OS

ECMG4 available with Intel® Core™ 7th Generation CPUs and enhanced graphics engine - ideal for engagement and interactive experiences
Collaboration Ready - Pair with the flexibility of Elo's 53-Series Interactive Boards for an open and configurable platform to run your favorite apps
No external cables required - AC power, video and USB signals pass between the computer module and the Elo IDS display via an internal docking connector

Need a different version? See all Elo Parts Accessories

$917.00

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

Elo Parts Accessory Model Overview

Products and parts from ELO.

Elo E227895 POS Touch Terminal Overview

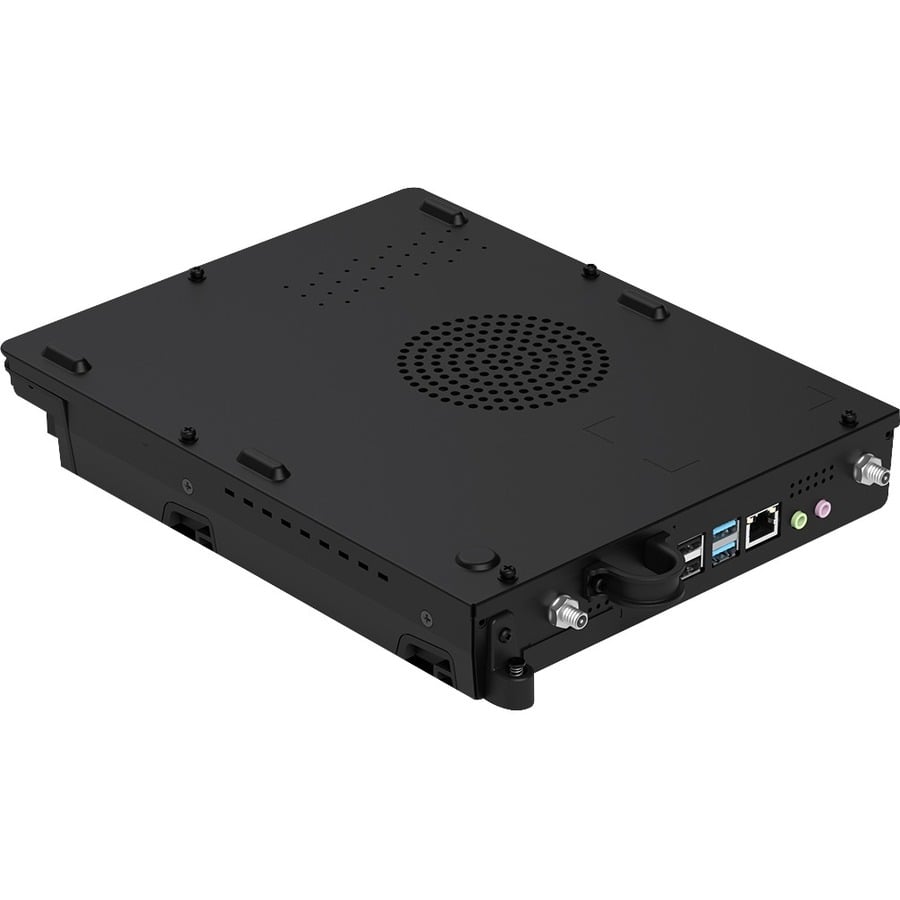

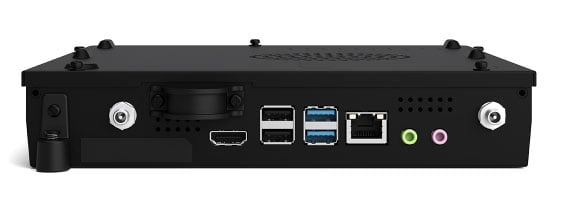

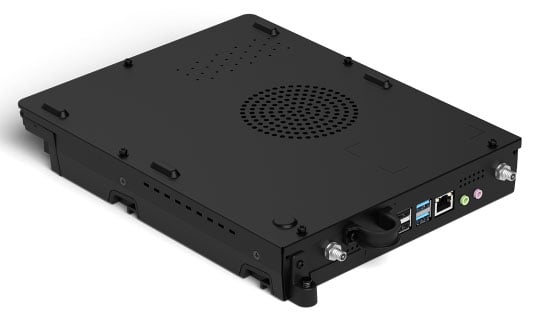

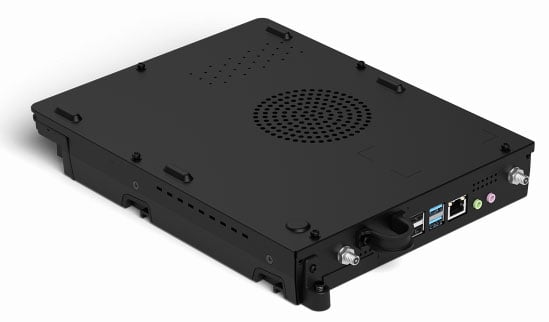

Elo ECMG4 | Computer Modules

The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

Smaller Form Factor

With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.

Detailed Specs

Processor & Chipset

Processor Manufacturer:

Intel

Processor Type:

Core i5

Processor Model:

i5-7500

Chipset Manufacturer:

Intel

Chipset Model:

H110

Memory

Standard Memory:

8 GB

Memory Technology:

DDR4 SDRAM

Storage

Total Solid State Drive Capacity:

256 GB

Display & Graphics

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD Graphics 630

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n/ac

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 5.0

Interfaces/Ports

HDMI:

Yes

Total Number of USB Ports:

Number of USB 2.0 Ports:

Number of USB 3.0 Ports:

Network (RJ-45):

Yes

Software

Operating System:

Physical Characteristics

Product Color:

Black

Weight (Approximate):

4.60 lb

Miscellaneous

Package Contents:

ECMG4 Single Board Computer
Quick Install Guide
2 x WiFi/BT Antenna
4 x M6x50 Screws
4 x M8x50 Screws
4 x Spacers

Application/Usage:

LCD Display

Compatibility:

3203L TouchPro
4303L TouchPro and IR
5553L TouchPro and IR
6553L TouchPro and IR

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0843173102825

UPC: 843173102825

EAN: 0843173102825

UNSPSC: 43211507
