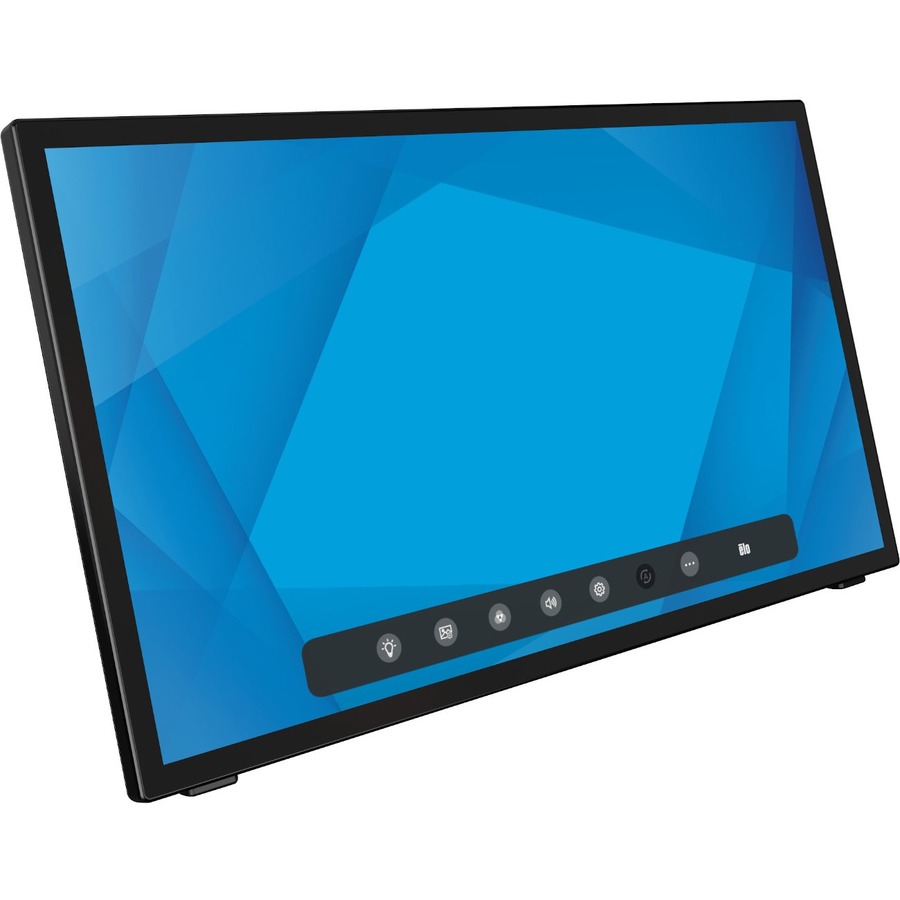

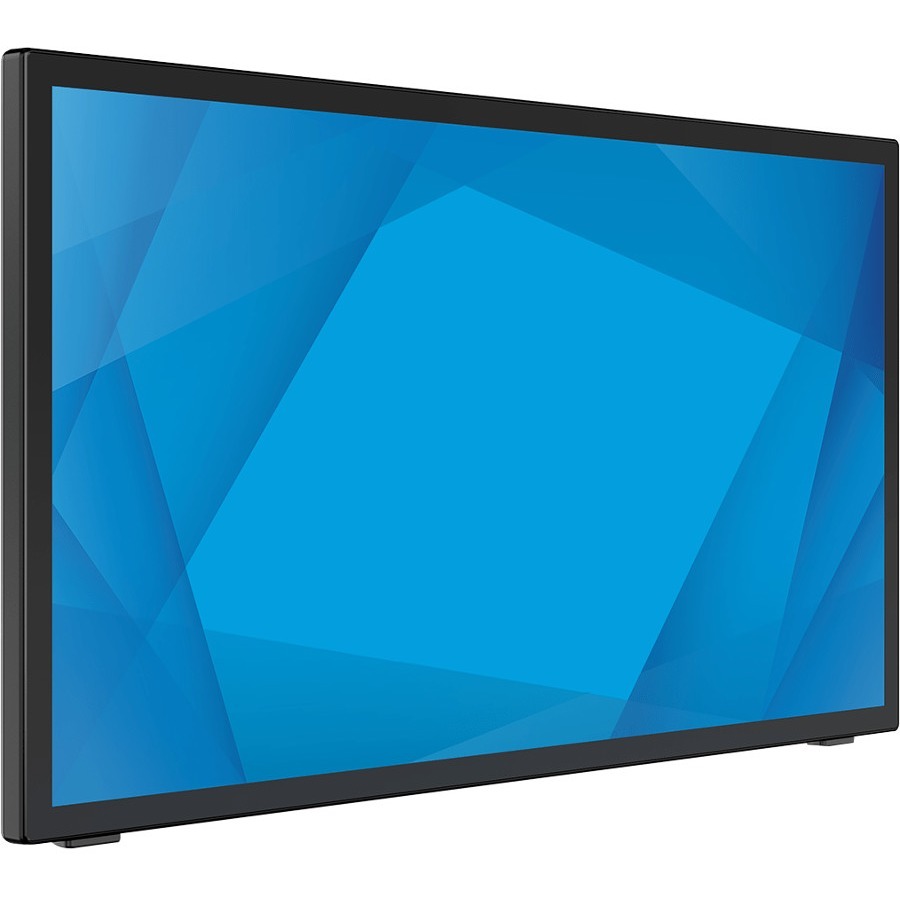

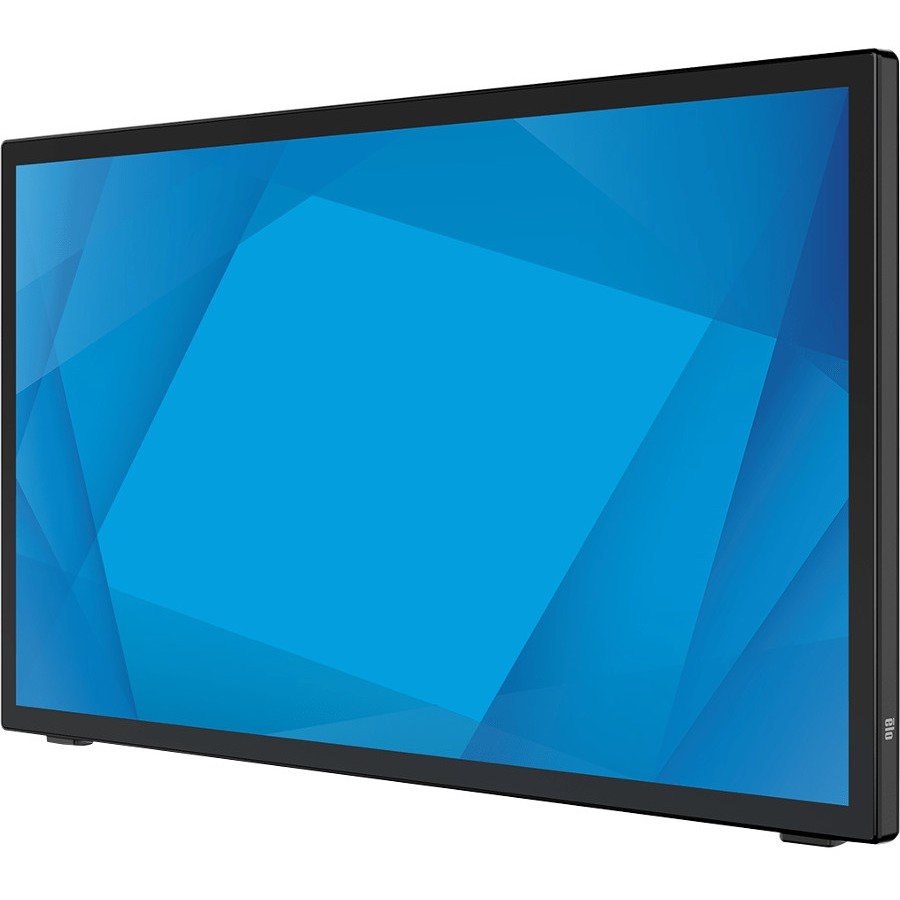

Elo E510259 Touchscreen

Elo 2270L - Touchscreen, Elo 2270L, 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Clear, Zero-bezel, Collapsible Stand, VGA, DP and HDMI video interface, Black, Worldwide

The Full HD lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
Enjoy crisp content and energetic hues with the 250 Nit brightness
Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 2270L Touchscreens

Chat Now for Qty Discount

Add to Quote

$450.00

In Stock

Overview

Full specifications (PDF)

Elo 2270L Touchscreen Model Overview

The Elo 2270L 22-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2270L offers a durable, energy efficient TouchPro? PCAP touchscreen with clear or anti-glare scratch resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors. With a clean design aesthetic available in black and white and flexible mounting options, the 2270L touchscreen is well-suited for POS, interactive digital signage, self-service, document signing and more.

Elo E510259 Touchscreen Overview

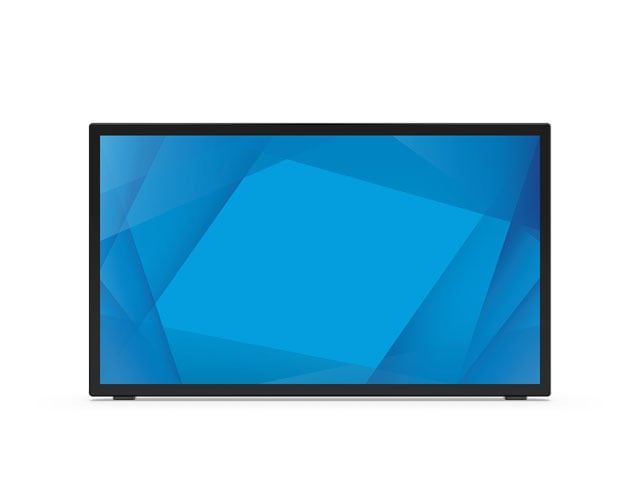

The bezel just got smaller.

The 2270L 22" touchscreen offers up to a 70% reduction in the bezel compared to similar models.

Minimalistic design to fit any space.

From 20 degrees to 70 degrees, angle the display where you want it.

Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA compatibility.

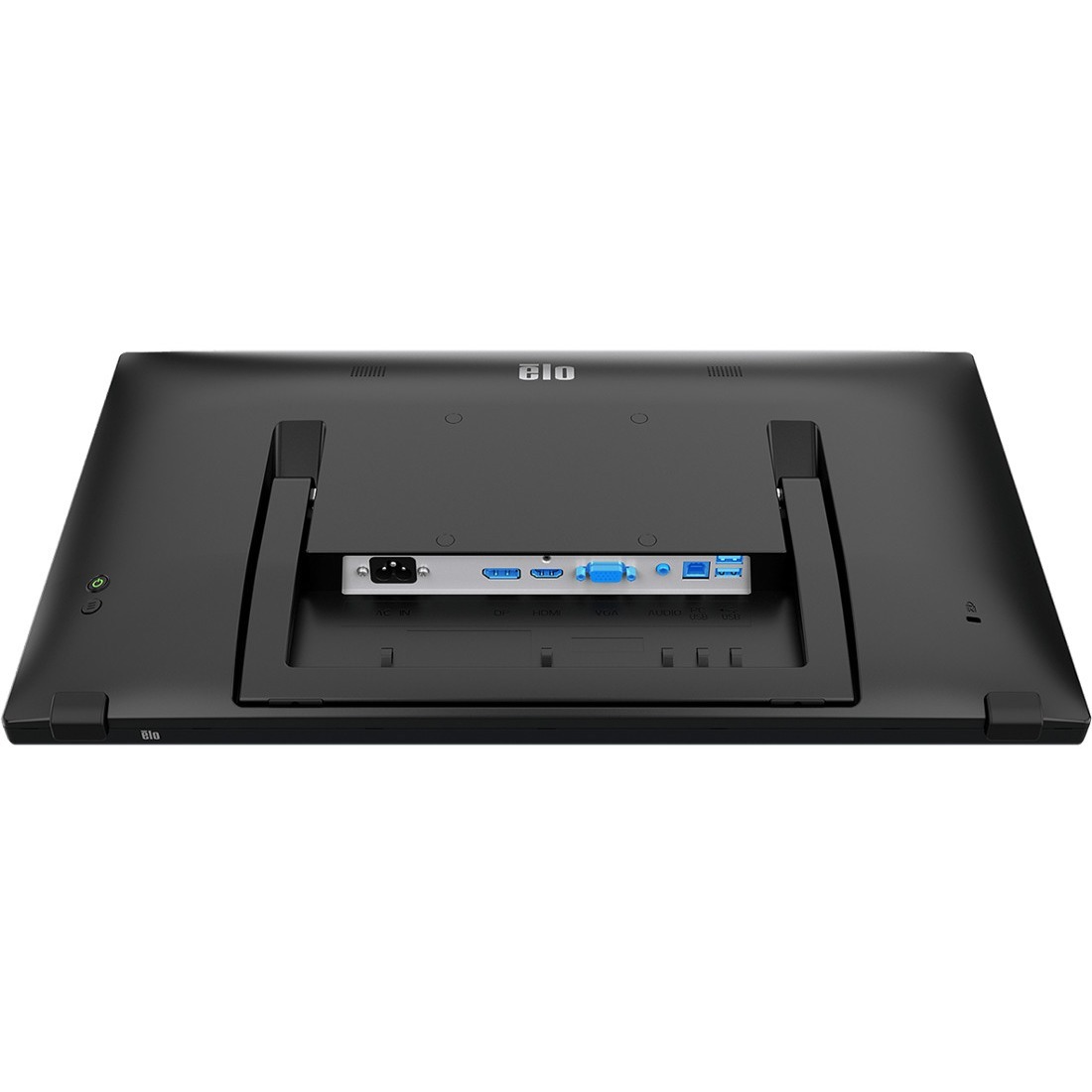

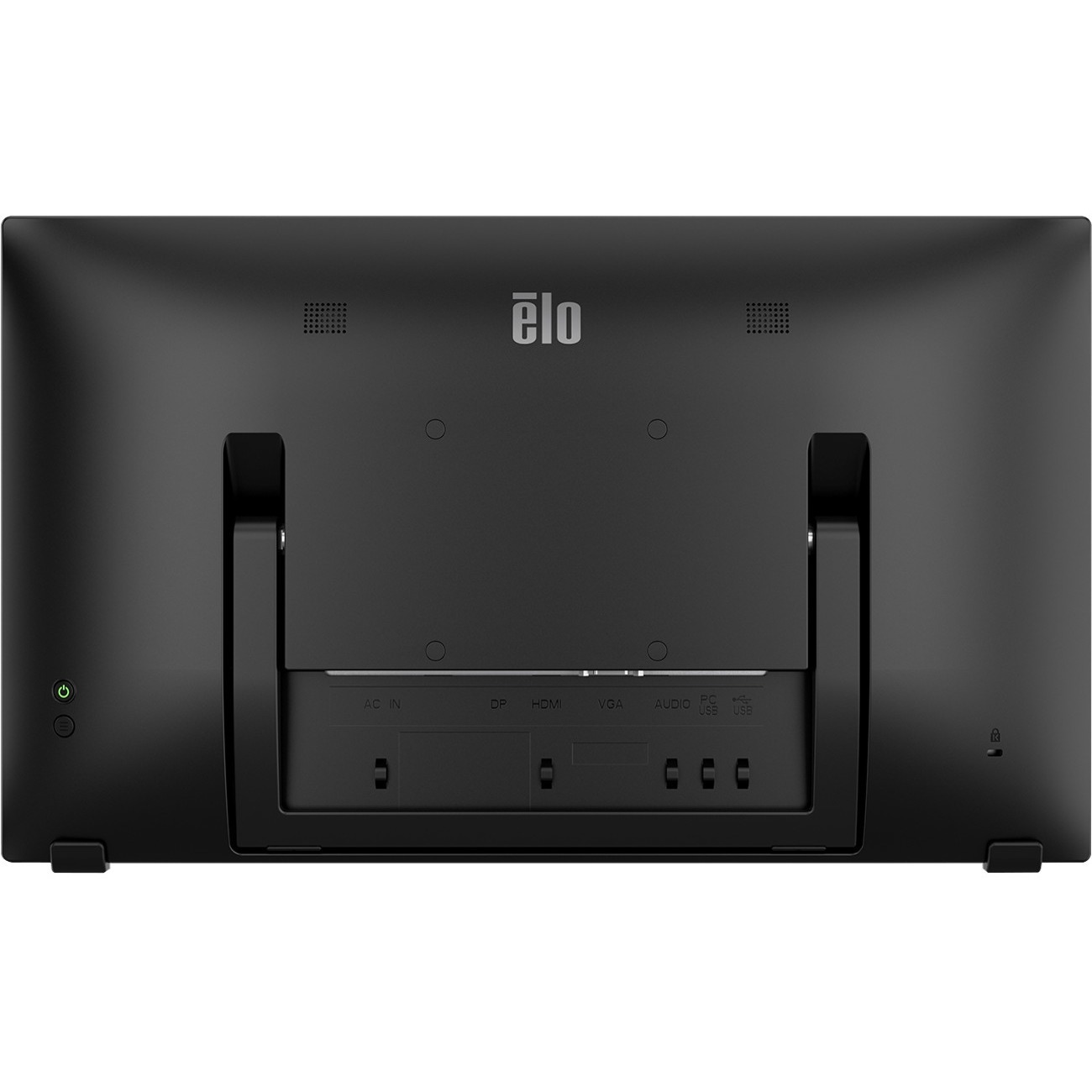

Built-in

Speakers and integrated IO.

Durable, energy efficient touchscreen.

Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.

Increase viewing comfort with low blue light and flicker free features.

Navigate the OSD directly on the touchscreen.

We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

22"

Viewable Screen Size:

21.5"

Screen Mode:

Full HD

Panel Technology:

Thin Film Transistor (TFT)

Response Time:

14 ms Typical

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Mount Type:

Wall Mountable

Placement:

Tabletop

Backlight Technology:

LED

Features:

Scratch Resistant
ComfortView
Low Blue Light
Flicker-free
On-screen Display (OSD)
Anti-glare
Power Switch
LED Indicator
OSD/Power Lock

Horizontal Frequency:

30 kHz to 82 kHz

Vertical Frequency:

50 Hz to 75 Hz

Impact Protection (IK) Rating:

IK07

Video

Maximum Resolution:

1920 x 1080

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen Type:

TouchPro Projected Capacitive

Multi-touch Screen:

Yes

Number of Simultaneous Touchpoints:

Interfaces/Ports

HDMI:

Yes

USB:

Yes

VGA:

Yes

DisplayPort:

Yes

Power Description

Frequency:

50 Hz
60 Hz

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

Black

Height:

11.9"

Width:

19.9"

Depth:

1.6"

Weight (Approximate):

9.04 lb

Item Numbers

GTIN: 0843173131481

UPC: 843173131481

EAN: 0843173131481

UNSPSC: 43211903

Reviews

Q&A

Questions? Get help from
a POS Expert!

The Elo E510259 Touchscreen is also known as ELO-E510259 or E510259.
