Elo E801494 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E326738 Touchscreen.

Elo 1537L - Elo 1000 Series 1537L Touch Screen Monitor - 15" Class - Infrared - 1024 x 768 - XGA - USB

Experience an energetic display of colors, contrast and pictures with the xga lcd touchscreen monitor
Infrared touchscreen technology uses IR receivers & transmitters to create an undetectable matrix of light beams across the screen which ensures the finest picture quality
The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
Furnishes captivating visuals with about 230 Nit brightness levels

Need a different version? See all Elo 1537L Touchscreens

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

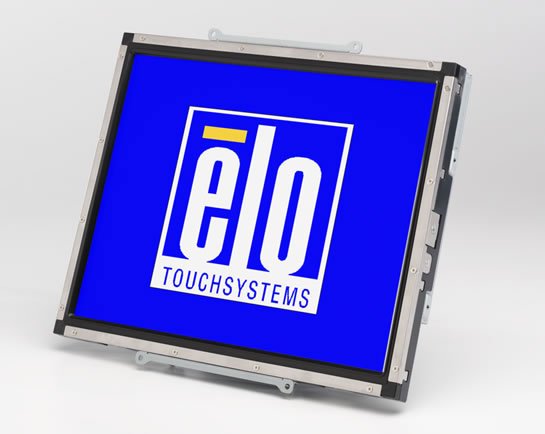

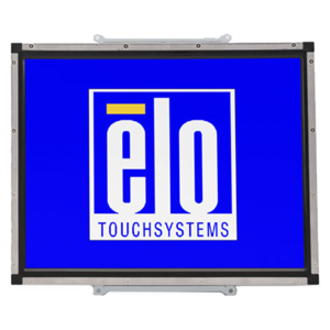

Elo 1537L Touchscreen Model Overview

The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.

Elo E801494 Touchscreen Overview

This monitor have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded mini bezel with virtually invisible watertight seal and choice of touch technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare

Response Time:

14.50 ms

Mount Type:

Desk Mountable

Video

Maximum Resolution:

1024 x 768

Contrast Ratio:

500:1

Brightness:

230 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Infrared

Interfaces/Ports

USB:

Yes

Physical Characteristics

Height:

10.4"

Width:

13.2"

Depth:

1.6"

Weight (Approximate):

6.60 lb

Item Numbers

GTIN: 7411493014284

EAN: 7411493014284

UNSPSC: 43211903
