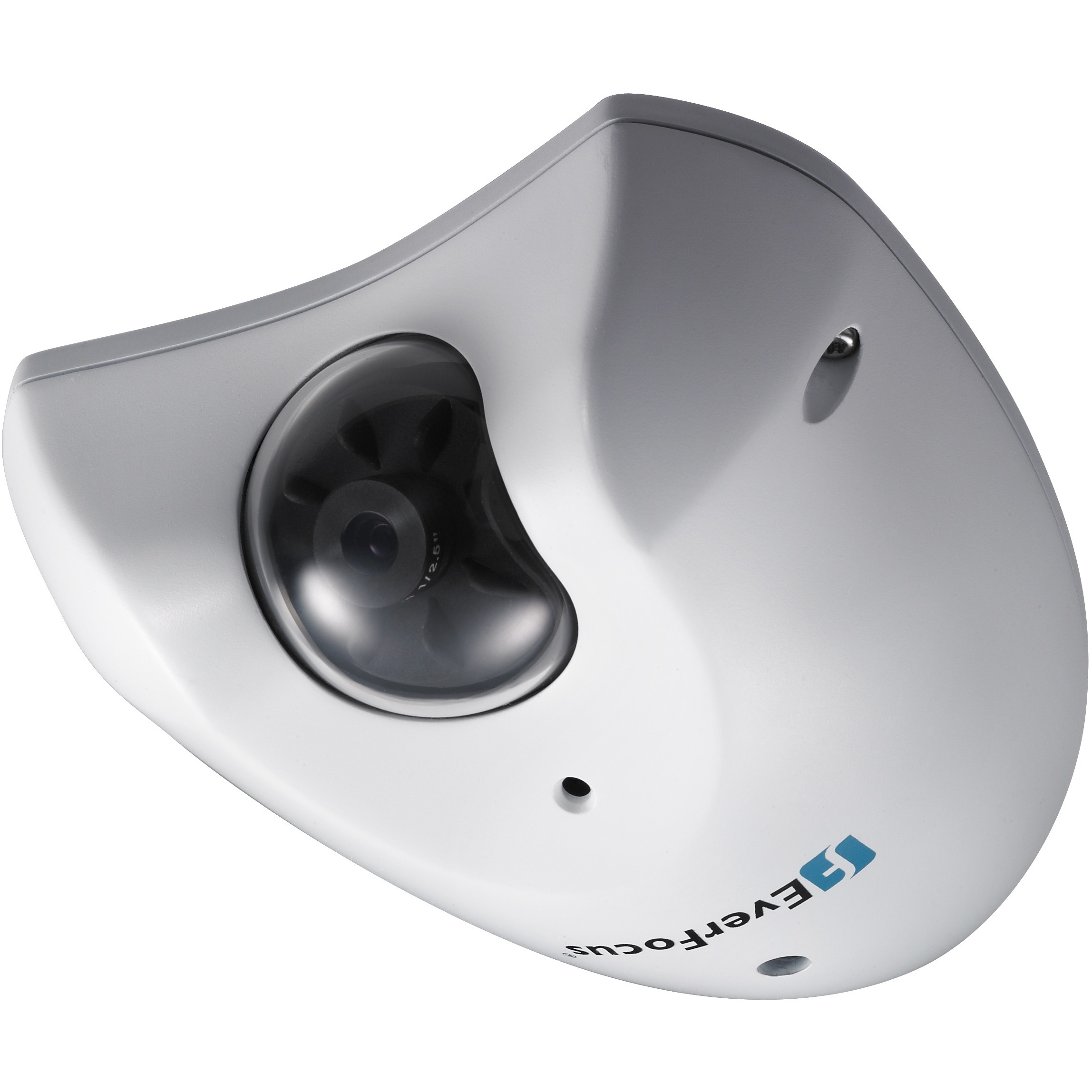

EverFocus EHN1220/3 Security Camera

The EverFocus EHN1220/3 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

EverFocus - EverFocus NeVio EHN1220 2 Megapixel Network Camera - Dome - H.264, MPEG-4, MJPEG - 1920 x 1080 - CMOS - Fast Ethernet

Network camera - Helps achieve high-quality video results
Up to 1920 x 1080 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
3.60 mm maximum focal length for dependable identification distances with better coverage
Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
Day/Night feature for better reliance and usability
Wired connectivity technology offers maximum visual convenience

Need a different version? See all EverFocus Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

EverFocus Parts Accessory Model Overview

Products and parts from EverFocus.

EverFocus EHN1220/3 Security Camera Overview

EHN1220 is a mini size rugged dome network camera, delivering 2 Megapixel high definition (Full HD) image quality with up to 30fps in 1920 x 1080. EHN1220 supports H.264, MPEG-4 and M-JPEG video compression codec. Equipped with a vandal-proof (IK10) and weather proof (IP67) housing, the camera meets a wide variety of needs for indoor and outdoor surveillance applications. The camera has a built-in micro SDHC card slot, providing local recording when the event was triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable. This eliminates the need for power cables and reduces installation costs. EHN1220 conforms to ONVIF / PSIA for compatibility with other network video devices including devices from other manufacturers.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/2.7"

White Balance Modes:

AWB

Color Supported:

Color
Monochrome

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

H.264
MPEG-4
MJPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Audio

Audio Formats:

G.711

Lens

Lens Type:

Fixed

Maximum Focal Length:

3.60 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Exposure

Shortest Shutter Speed:

1/15000 Second

Longest Shutter Speed:

4 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

TCP/IP
IPv6
UDP
ICMP
DHCP
NTP
DNS
DDNS
SMTP
SNMP
FTP
HTTP
HTTPS
PPPoE
UPnP
Bonjour
RTP
RTSP
RTCP
IGMP
ARP
PSIA
SSL
ONVIF

Interfaces/Ports

Analog Video Out:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Power Description

Maximum Power Consumption:

3.48 W

Physical Characteristics

Form Factor:

Dome

Durability:

Vandal Resistant
Vandal Proof
Weather Proof

Product Color:

White

Height:

4.4"

Width:

5.1"

Length:

1.8"

Weight (Approximate):

10.58 oz

Miscellaneous

Features:

Day/Night
SD Card Local Storage
Privacy Masking
Region of Interest
Motion Detection
Tamper Detection
Noise Reduction
Built-in Microphone

Indoor/Outdoor:

Outdoor

Certifications & Standards:

IK10
IP67
FCC
CE
EN50155

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Platform Supported:

IOS
Android

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The EverFocus EHN1220/3 Security Camera is also known as EHN1220/3
