Recording Formats:
HD
HD Recording:
Yes
EverFocus Parts Accessory Model Overview
Products and parts from EverFocus.
EverFocus EHN1320/3 Security Camera Overview

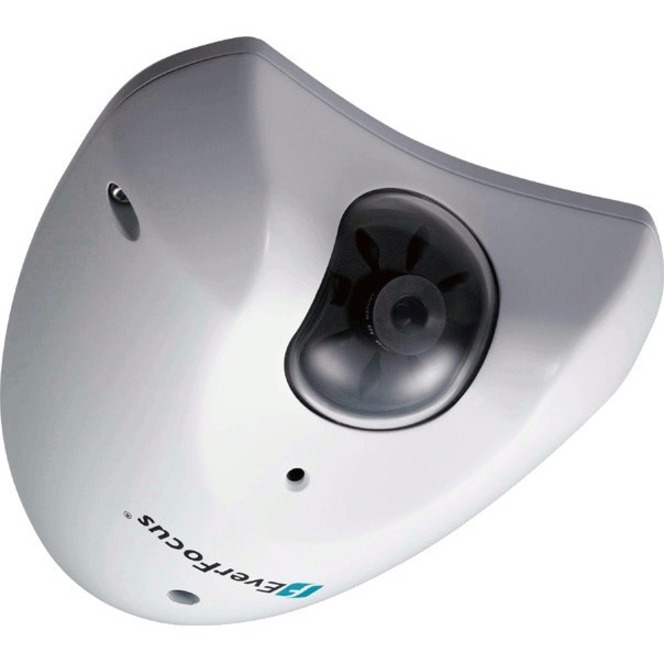

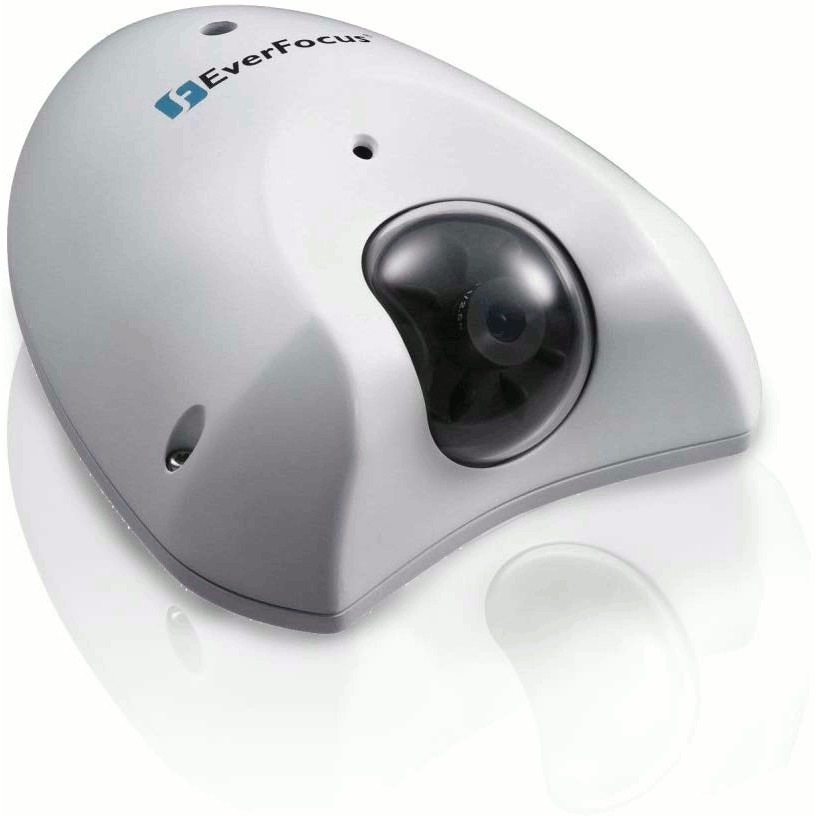

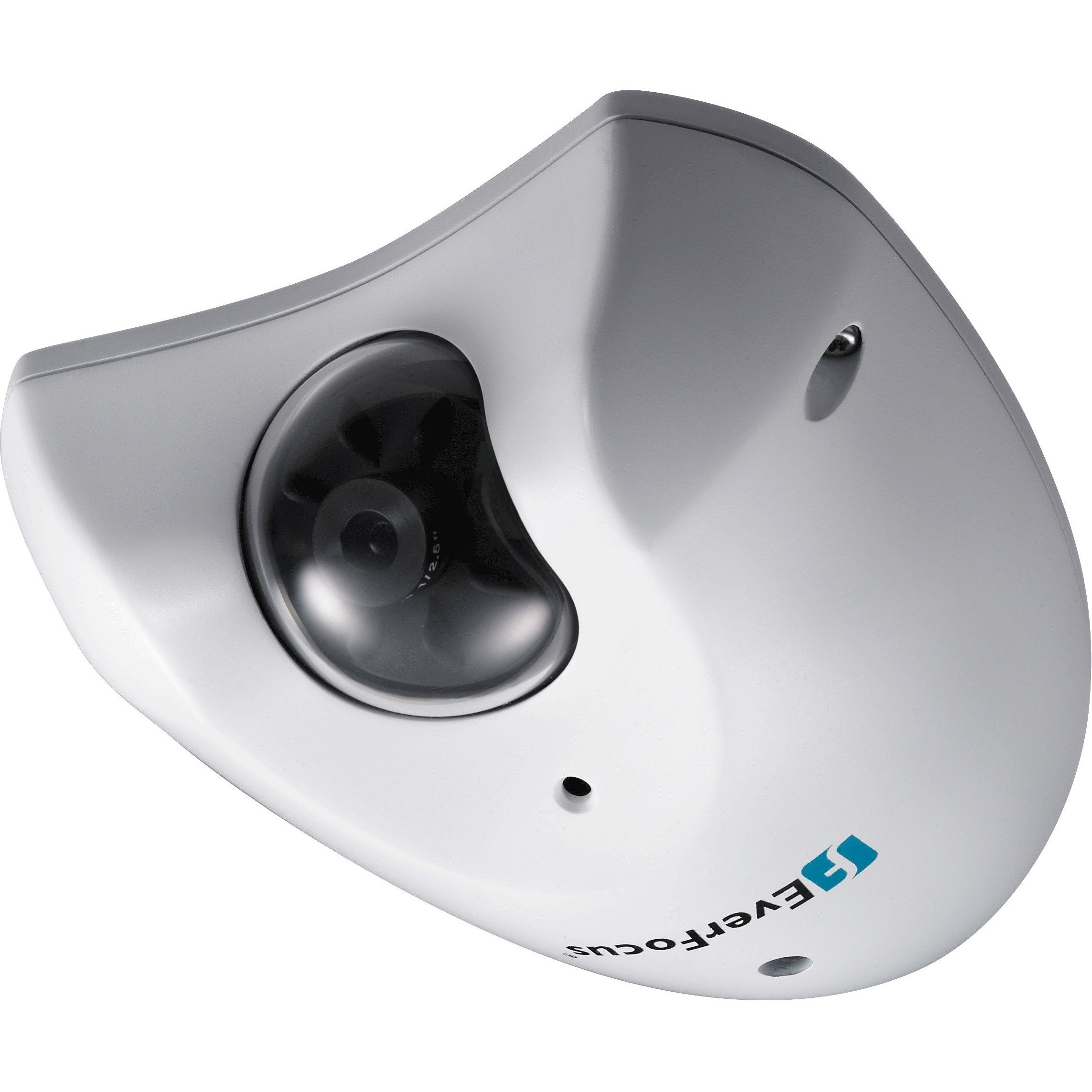

EHN1320 is a mini size rugged dome network camera, delivering 3 Megapixel high definition (HD) image quality with 15fps in 2048 x 1536 resolution. EHN1320 supports H.264, MPEG-4 and M-JPEG video compression codec. Equipped with a vandal proof (IK10) and weather proof (IP67) housing, the camera meets a wide variety of needs for indoor and outdoor surveillance applications. The camera has a built-in micro SDHC card slot, providing local recording when the event was triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EHN1320 conforms to ONVIF / PSIA for compatibility with other network video devices including other manufacturers.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- MPEG-4
Maximum Video Resolution:
2048 x 1536
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.60 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Form Factor:
Dome
Height:
4.4"
Width:
5.1"
Depth:
1.8"
Weight (Approximate):
10.58 oz
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0697101014410
UPC:
697101014410
EAN:
0697101014410
UNSPSC:
46171610
Get help from a Barcoding Expert!
The EverFocus EHN1320/3 Security Camera is also known as
EHN1320/3
