EverFocus EZ630/MVB Products

The EverFocus EZ630/MVB Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

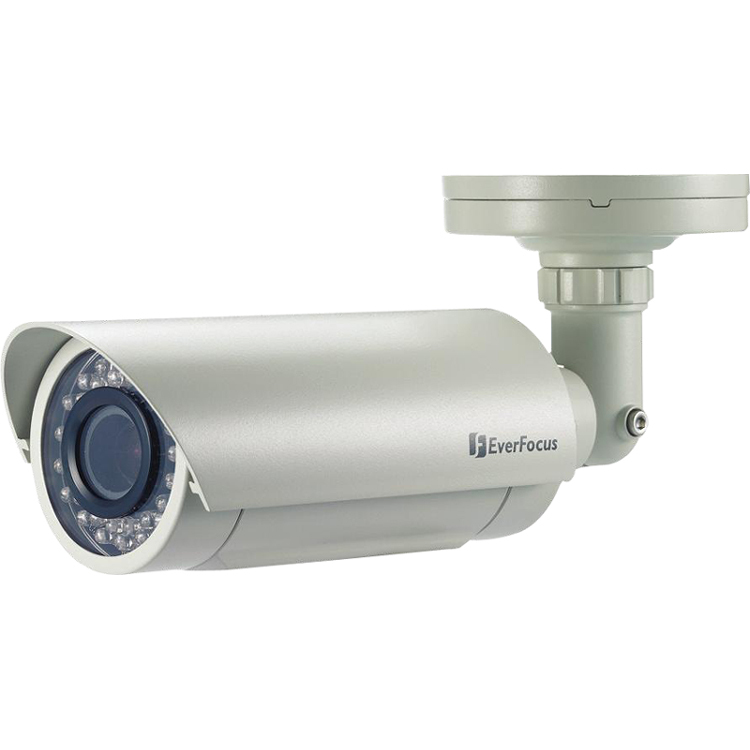

EverFocus  -  EverFocus Polestar II EZ630 Surveillance Camera - Bullet - 3.5x Optical - Super HAD CCD ll
  • Is a smart solution for using at homes and SMB security surveillance installations
  • Super HAD CCD ll offers increased sensitivity to capture better and focus the light
Read More
Add to Quote
EverFocus Parts Accessory Model Overview
Products and parts from EverFocus.
EverFocus EZ630/MVB Products Overview

Amazing color low light sensitivity of 0.05 lux before the added benefits of advanced DSP technology, delivered by a 1/3" Sony Super HAD II sensor, is just the beginning with the new EverFocus EZ610/630. Get color without compromise: 560TVL resolution, your choice of full motion color or true day/night images in low light without ghosting, plus Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced scene lighting conditions. Where ambient light levels are too low, select the EZ630 for extended IR range, variable output IR control to manage illumination and conserve energy, split glass to prevent internal IR reflections. Easy to mount and install, the camera includes a speedy-mount ring, designed to fit a standard 4" electrical box, for convenient and reliable wall or ceiling mounting; just attach the speedymount ring to the mounting surface and the camera base plate quickly attaches to the ring. A removeable insert in the ring provides for an on-demand slot for surface wire access. Spin off the base plate, and the EZ610/630 mates with any standard 1" conduit thread. The E-Z Lock ring at the base is designed with sure-grip tabs to firmly clamp the camera to the base plate, plus a set screw in the base provides added security. Vandal resistant, IP66, with motorized varifocal auto iris lens, dual voltage operation and a full suite of OSD Menu and DSP functions controllable at the camera or remotely via RS-485 (3D-DNR to save DVR HDD space, privacy masking, 32X digital zoom, mirroring and rotation, 256X sens-up to a max of .0002 lux, and much more) these are the cameras you have been waiting for, and might be the only cameras you'll ever need.

Display & Graphics
Image Sensor Size:
1/3"
Image Sensor Type:
Super HAD CCD ll
White Balance Modes:
  • Auto
  • Manual
  • Indoor
  • Outdoor
Color Supported:
Monochrome
Lens
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Optical Zoom:
3.5x
Digital Zoom:
32x
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Controls/Indicators
Status Indicators:

OSD

Interfaces/Ports
Analog Video Out:
Yes
Power Description
Maximum Power Consumption:
9 W
Physical Characteristics
Form Factor:
Bullet
Height:
3.2"
Depth:
4.2"
Weight (Approximate):
2.76 lb
Miscellaneous
Features:
  • Weather Resistant
  • 3D Noise Reduction
  • Heater
  • Motion Detection
Package Contents:
  • Camera Unit
  • Speedy Mount Ring
  • Operation Manual
  • Video Test Cable
  • Power Supply Pigtail
  • 4 x Long Screws (for attaching EZ Mount Ring to mounting surface)
  • 4 x Short Screws(for connecting camera base to EZ Mount Ring)
  • 4 x Expanding Anchors
  • Hex key (for adjusting camera)
  • Hexagon Wrench (for adjusting sunshield and set screw in base)
  • Mounting Template
Compatibility:
  • NTSC
  • Pal
Certifications & Standards:
  • CE
  • FCC
Security Features:
  • IP66
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The EverFocus EZ630/MVB Products is also known as EVF-EZ630MVB or EZ630/MVB.
