Full specifications (PDF)

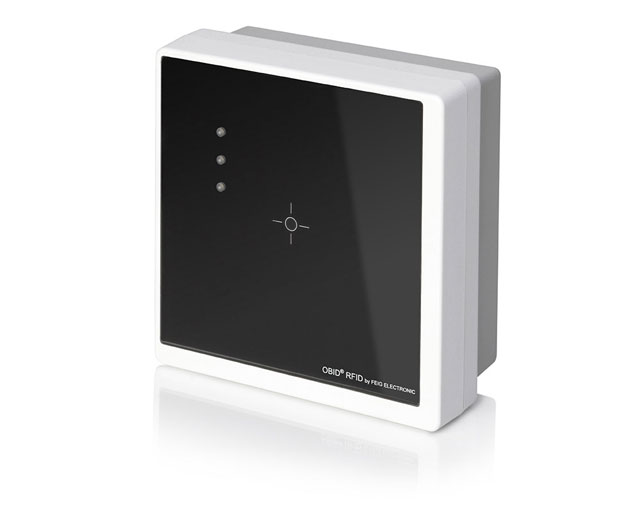

FEIG MAX50.10 RFID Reader Model Overview
RFID Card Reader, Door Controller and Access Controller in one device
- 84,2 x 84,2 x 22 mm Card Reader
- 77,7 x 77,7 x 18 mm Wall-mounted housing
- Integrated antenna
- Interface: Ethernet 10BASE-T / 100BASE-TX, Automatic MDI/MDI-X Crossover correction, TCP/IP protokol, IPv4
- Supply voltage: Power over Ethernet (PoE); alternative: ext. power supply 24V up to 48V DC +/-10%
Application focus:
Use in industrial and commercial installations as a part of a complex access control system with widely distributed access points. Furthermore it can also be used for single doors in small and medium-sized installations.
Features:
- Offline management of more than 5.000 access permissions (Stand-alone operation)
- AES-encrypted Ethernet-Data transfer
- Multi-tag card reader (ISO 14443-A/-B and ISO 15693)
- Identification via serial number or freely configurable data area
- Real time clock & time zones
- Configurable event memory
Brand
FEIG
Model
MAX50.10
