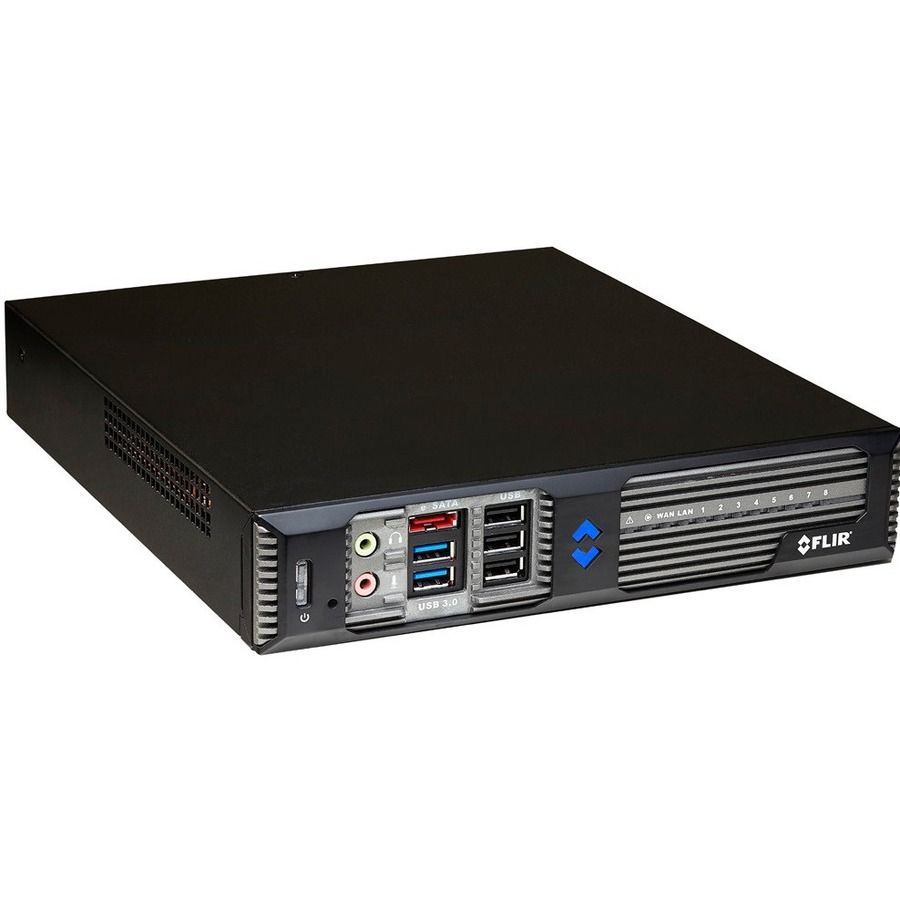

FLIR MR08PE02 Network Video Recorder

The FLIR MR08PE02 Network Video Recorder has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

FLIR - Meridian NVR 8 Channels 2TB POE Switch

Up to 8 number of channels to address small-to-mid range requirements
Allows the camera to record at greater image per second levels
Manage remotely from your computer, tablet, smartphone or any other mobile device
2 TB HDD provides ample storage
USB offers a more refined structure and safer to use connectivity

Need a different version? See all FLIR Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

FLIR Parts Accessory Model Overview

Products and parts from FLIR.

FLIR MR08PE02 Network Video Recorder Overview

A COMPACT NVR WITH BUILT-IN POE FOR UP TO 24 CAMERAS

The Meridian NVR is a cost-effective, enterprise grade, off-the-shelf, plug-and- play video surveillance system for security installations configurable for 8, 16 or 24 cameras. The system includes a network video recorder with a built in 8 port PoE switch (additional 8-port PoE switch available for purchase), video management software that is pre-configured, support for the EZ Client web interface and works out-of-the box with sophisticated viewing capabilities, eliminating the need for additional client workstations.

All-In-One Solution

Quick and easy setup allows for in-and-out installations
Up to 30 days of continuous recording on max cameras count (1080p, 15 FPS, disc saver mode
Build in 8-port PoE switch
Additional smart 8-port PoE switch, equipped with 2x1Gbps uplink ports available for purchase for 16/24 channel models

Versatile VMS software

Pre-loaded and pre-licensed video management software
Sleek and modern EZ Client web interface that is optimized for touch screens and adapts well to different resolutions
Thumbnail search for easy browsing through video footage
Robust reporting generator with detailed sign-off report
Adaptive Streaming displays more streams while consuming less bandwidth and computing resources on client workstations when using FLIR Quasar and Ariel visible cameras

Easy Integration

Supports wide range of cameras and analytics
ONVIF Profile S-compliant
4K support / certified

Key Features

Dual monitor display support
Integrates with leading access control systems (Modules purchased separately)
Three year free SSA, for systems purchased in 2017 or later, that includes:

Software version upgrades
Online support (Chat and Email)
Phone support (best effort by next business day)
Free access to FLIR Cloud Services for system health monitoring
Access to online training videos and webinars

Detailed Specs

Technical Information

Total Number of Channels:

Connectivity Technology:

Wired

HD Recording:

Yes

System Components:

Network Video Recorder

Storage

Hard Drive Capacity:

2 TB

Memory

Standard Memory:

4 GB

Video

Maximum Resolution:

3840 x 2160

Maximum Frame Rate:

165 fps

Network & Communication

Ethernet:

Yes

Remote Management:

Yes

Interfaces/Ports

USB:

Yes

Total Number of Audio In Ports:

Total Number of Audio Out Ports:

Number of VGA Out:

HDMI:

Yes

Power Description

Power Consumption:

150 W

Physical Characteristics

Height:

1.7"

Width:

8.7"

Depth:

9.6"

Weight (Approximate):

6.61 lb

Miscellaneous

Package Contents:

Meridian MR08PE02L Network Video Recorder
Power Supply
USB Keyboard
Mouse

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 46171621
