GeoVision 110-MFD2501-4F2 Products

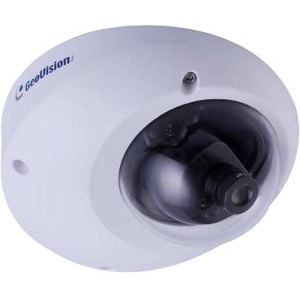

GeoVision - GeoVision GV-MFD2501-4F 2 Megapixel Network Camera - Dome - H.264, MJPEG - 1920 x 1080 - CMOS - Fast Ethernet - USB - Ceiling Mount, Wall Mount, Surface Mount

For remote surveillance needs, this network camera is best suited
Up to 1920 x 1080 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
2.10 mm maximum focal length provides incredible detail and how effective is your network camera
f/1.8 maximum aperture for better light absorption and dependable, better-quality results
Fixed Focus focus mode for better reliance and sharp, detailed results
Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
Ceiling Mount mount type is reliable and allows trouble-free and easy usage
Dual Stream feature for better reliance and usability
Wired connectivity technology helps you always stay connected to your network camera for maximum productivity

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$400.55

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 110-MFD2501-4F2 Products Overview

The GV-MFD2501 Series is an indoor, fixed, mini-sized network camera with different lens options. With its super low lux CMOS image sensor, the camera can produce color image at near darkness. The camera is equipped with a USB port which supports wireless connection through GV-WiFi Adapter (optional) or an external storage using a USB hard drive.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/2.8"

White Balance Modes:

Auto
Manual

Color Supported:

Color
Monochrome

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Audio

Audio Formats:

AAC

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.10 mm

Lens Included:

Yes

Maximum Aperture:

f/1.8

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/8000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

DHCP
DynDNS
FTP
HTTP
HTTPS
NTP
ONVIF
PSIA
QoS
DSCP
RTSP
SNMP
SMTP
TCP
UDP
UPnP
3GPP
ISMA

Controls/Indicators

Status Indicators:

LEDs:

Link
ACT
Power
Status

Interfaces/Ports

USB:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Power Description

Maximum Power Consumption:

6 W

Physical Characteristics

Mount Type:

Ceiling Mount
Wall Mount
Surface Mount

Form Factor:

Dome

Height:

2.1"

Diameter:

4.2"

Weight (Approximate):

9.92 oz

Miscellaneous

Features:

Dual Stream
Day/Night
SD Card Local Storage
Tampering Alarm
3D Digital Noise Reduction
Defog
Motion Detection
Privacy Masking
Back Light Compensation (BLC)
Temperature Sensor
Built-in Microphone
Picture-in-Picture

Indoor/Outdoor:

Indoor

Package Contents:

GV-MFD2501 2MP H.264 Super Low Lux WDR Mini Fixed Dome
Torx Wrench
2 x Self Tapping Screw
2 x Screw Anchor
Cable Stopper
Short-Body RG-45 Plug
USB / Audio Y-Cable
GV-IPCAM H.264 Quick Start Guide
GV-IPCAM H.264 Software CD
GV-NVR Quick Start Guide
GV-NVR Software DVD

Certifications & Standards:

CE
FCC
C-Tick

Security Features:

IP Address Filtering

Platform Supported:

iPhone
iPad
Android

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 46171610
