GeoVision 115-TFD4700-0010 Security Camera

GeoVision - Security Cameras, GeoVision, 4MP Network Mini Dome Camera with Night Vision

1/3" progressive scan super low lux CMOS
Min. illumination at 0.01 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
Two-way audio
One sensor input and one alarm output

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$220.72

GeoVision 115-TFD4700-0010 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 115-TFD4700-0010 Security Camera Overview

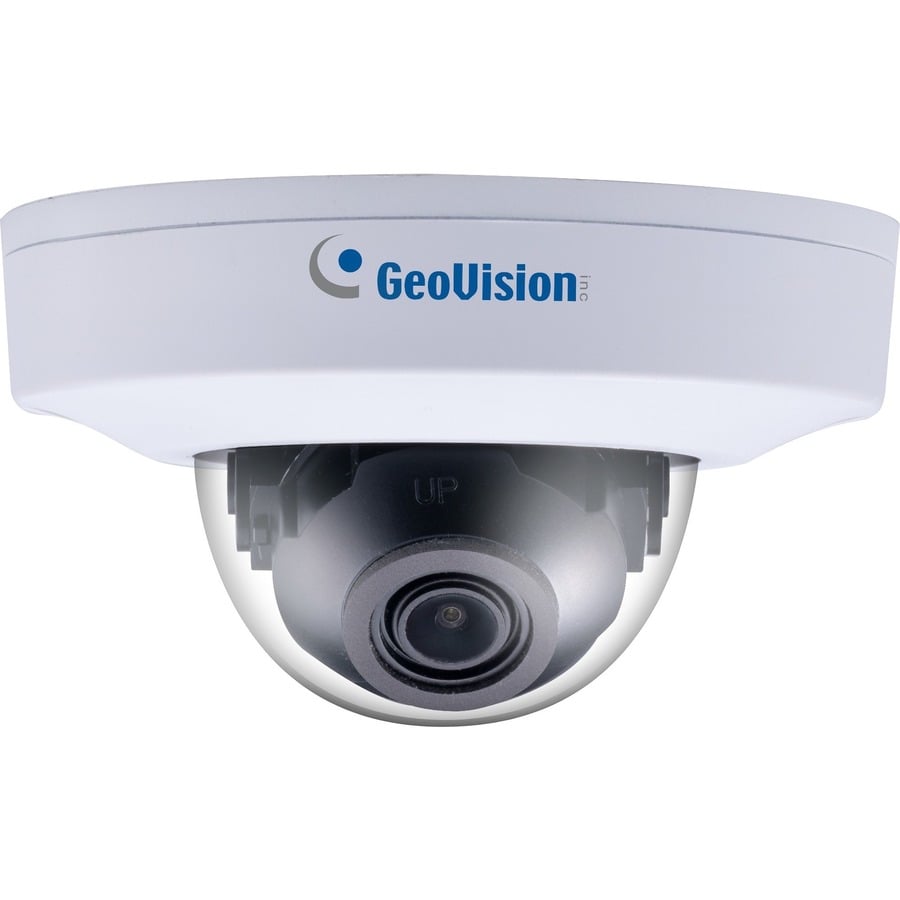

GV-TFD4700 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal 95°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/2

Exposure

Shortest Shutter Speed:

1/1000000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Ceiling Mount
Corner Mount
Pole Mount

Form Factor:

Mini Dome

Diameter:

4.3"

Weight (Approximate):

7.76 oz

Environmental Conditions

Minimum Operating Temperature:

-31°F (-35°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Removable IR Cut-off Filter
3-Axis Adjustable
SD Card Local Storage
Wide Dynamic Range
Defog
3D Noise Reduction
Motion Detection
Privacy Masking
Automatic White Balance
Auto Gain Control
Audio Compression

Indoor/Outdoor:

Indoor

Package Contents:

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
Screw Kit
Drill Template Paster
Torx Wrench
2-Pin Terminal Block
Download Guide
Warranty Card

Environmentally Friendly:

Yes

TAA Compliant:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
