GeoVision 125-EBD4701-000 Security Camera

A newer version of this item is available.
It is replaced by the GeoVision 125-EBD4704-000 Security Camera.

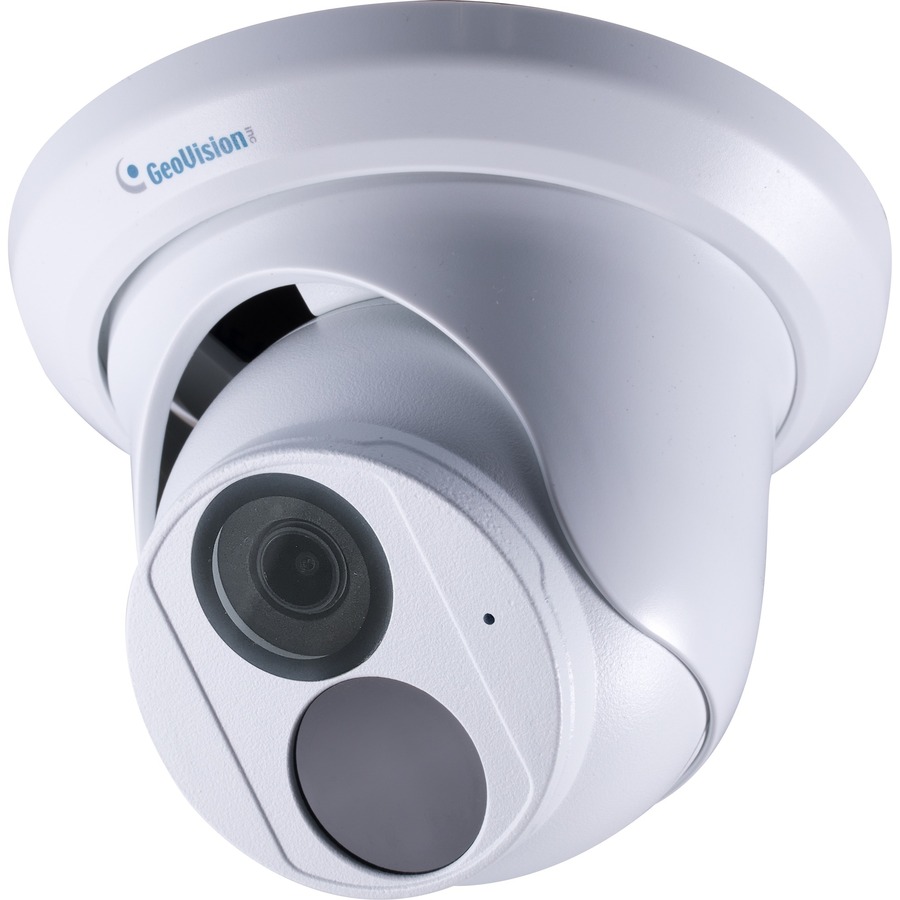

GeoVision - 4MP, 2.8MM, LOW LUX, WDR PRO, IR EYEBALL DOME IP CAMERA

1/3" progressive scan super low lux CMOS
Triple streams from H.265, H.264 or MJPEG
Min. illumination at 0.01 lux
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Built-in microphone
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

GeoVision 125-EBD4701-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-EBD4701-000 Security Camera Overview

GV-EBD4701 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal 107°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/2

Exposure

Shortest Shutter Speed:

1/1000000 Second

Longest Shutter Speed:

1/6 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Corner Mount
Pole Mount
Junction Box Mount

Form Factor:

Dome

Height:

3.6"

Diameter:

Weight (Approximate):

15.87 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Wide Dynamic Range
Ingress Protection
Built-in IR LED
Built-in Microphone
SD Card Local Storage
Day/Night
Removable IR Cut-off Filter
3-Axis Adjustable
Defog
3D Noise Reduction
Motion Detection
Privacy Masking
Automatic White Balance
Auto Gain Control

Indoor/Outdoor:

Outdoor

Package Contents:

4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera
Waterproof Rubber Set
Screw kit
Drill Template Paster
Download Guide
Warranty Card

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
