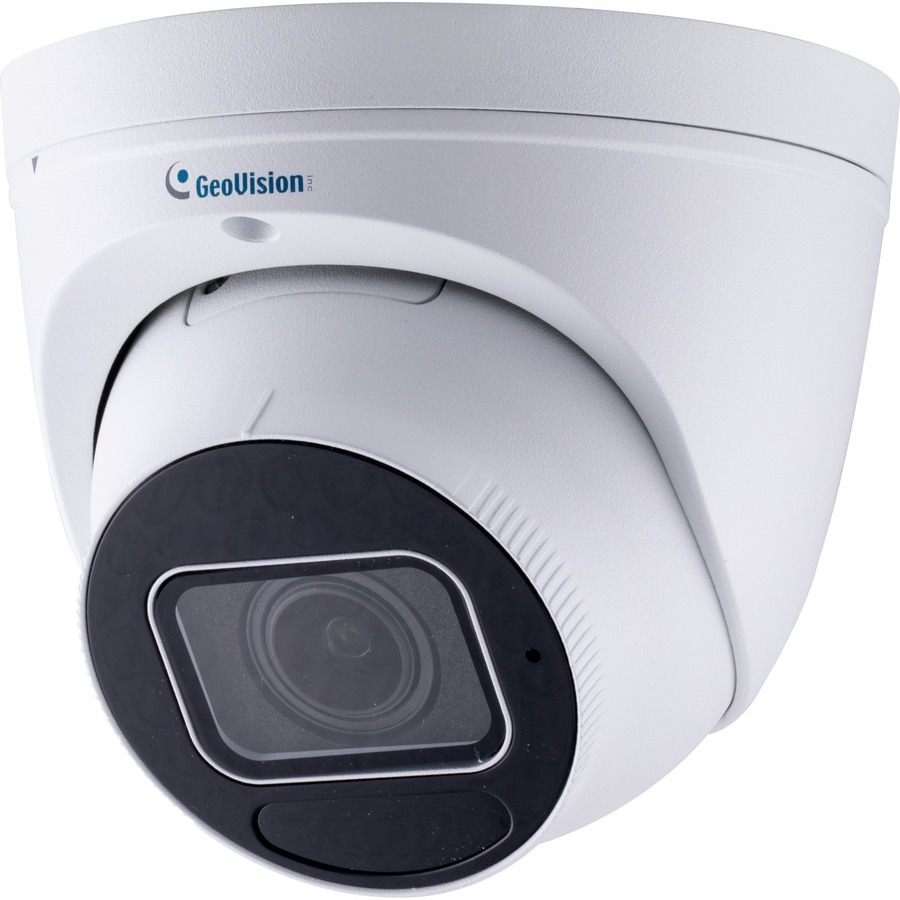

GeoVision 125-EBD4813-000 Security Camera

GeoVision - Security Cameras, GeoVision, AI Eyeball 5X 4MP, Super Low Lux, WDR Pro, H.265

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/3" progressive scan super low lux CMOS
Min. illumination at 0.002 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 40 m (130 ft)
Day and Night function (with removable IR-cut filter)
Motorized varifocal lens for remote focus / zoom adjustment
3-axis mechanism (pan / tilt / rotate)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$262.52

GeoVision 125-EBD4813-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-EBD4813-000 Security Camera Overview

GV-EBD4813 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

131.23 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal FOV 98°~31°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.70 mm

Maximum Focal Length:

13.50 mm

Lens Included:

Yes

Lens Mount Type:

Ø12

Maximum Aperture:

f/1.2

Optical Zoom:

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Bracket Mount
Corner Mount
Pole Mount

Form Factor:

Eyeball

Durability:

Vandal Resistant

Diameter:

5.1"

Weight (Approximate):

1.52 lb

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Built-in IR LED
SD Card Local Storage
Automatic White Balance
Auto Gain Control
Wide Dynamic Range
Motion Detection
Tampering Alarm
Audio Detection
Mirror

Indoor/Outdoor:

Outdoor

Package Contents:

AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Eyeball Dome IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
