GeoVision 125-EFER3700-0 Security Camera

GeoVision - GV-EFER3700, 3MP H.265, FISHEYE RUGGED CAM

1/2.8" progressive scan super low lux CMOS
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2048 × 1536
Day and Night function (with removable IR-cut filter)
Intelligent IR
Vandal resistance (IK8)
Ingress protection (IP67)
12V DC / PoE (IEEE 802.3af)
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
One sensor input and one alarm output

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$317.89

GeoVision 125-EFER3700-0 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-EFER3700-0 Security Camera Overview

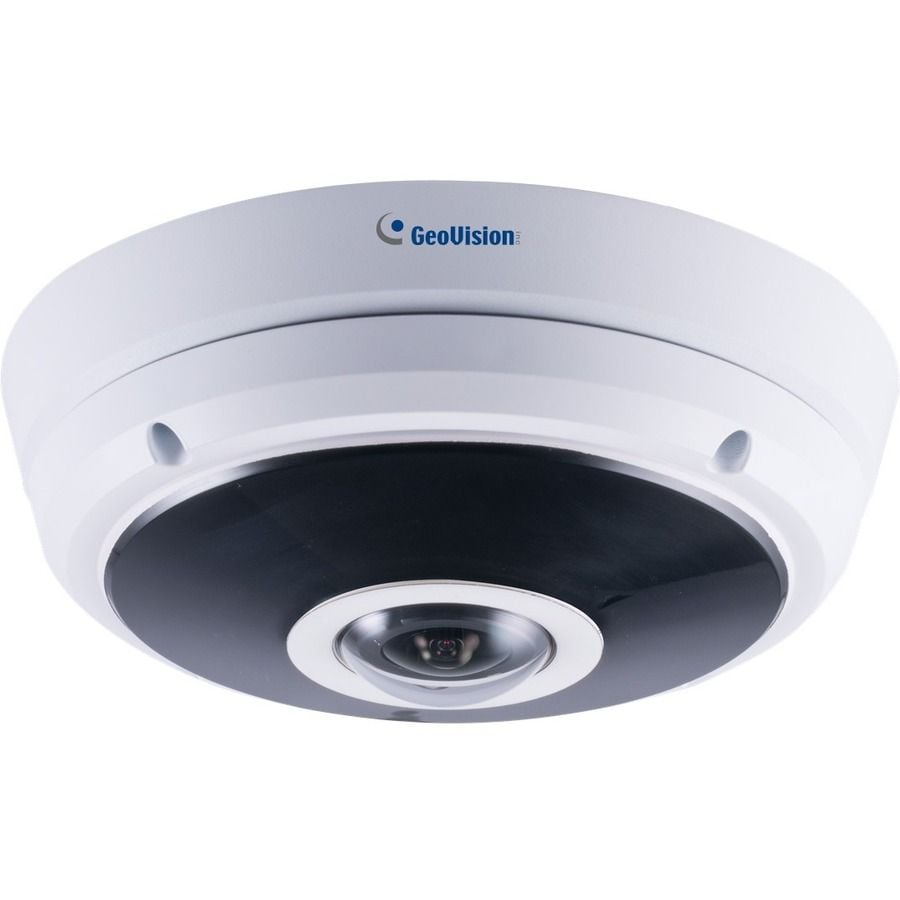

GV-EFER3700 is a 3 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. Equipped with automatic IR-cut filter and IR LEDs, GV-EFER3700 is capable of day and night surveillance. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask, and alert notification through its Web interface. In addition, the camera seamlessly integrates with GV-DVR / NVR / VMS, providing advanced monitoring and video management features.

The camera supports H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. GV-EFER3700 is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

65.62 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal 185°

Effective Camera Resolution:

3 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2048 x 1536

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

1.24 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/1.8

Exposure

Shortest Shutter Speed:

1/16000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Straight Tube Mount
Junction Box Mount
Wall Mount
Pendant Mount
Swan Neck Mount
Power Box Mount

Form Factor:

Fisheye

Durability:

Vandal Resistant

Diameter:

5.5"

Weight (Approximate):

1.48 lb

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

122°F (50°C)

Operating Humidity:

90%

Miscellaneous

Features:

Rugged Design
Wide Dynamic Range
Ingress Protection
Removable IR Cut-off Filter
Built-in IR LED
SD Card Local Storage
3D Noise Reduction
Tampering Alarm
Privacy Masking
Automatic White Balance
Auto Gain Control
Day/Night

Indoor/Outdoor:

Outdoor

Package Contents:

3MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
Torx Wrench
2 x Screw
2 x Screw Anchor
2 x Silica Gel Bag
Terminal Block (3-pin)
Installation Sticker
Download Guide
Warranty Card

Impact Protection Rating:

IK8

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 46171610
